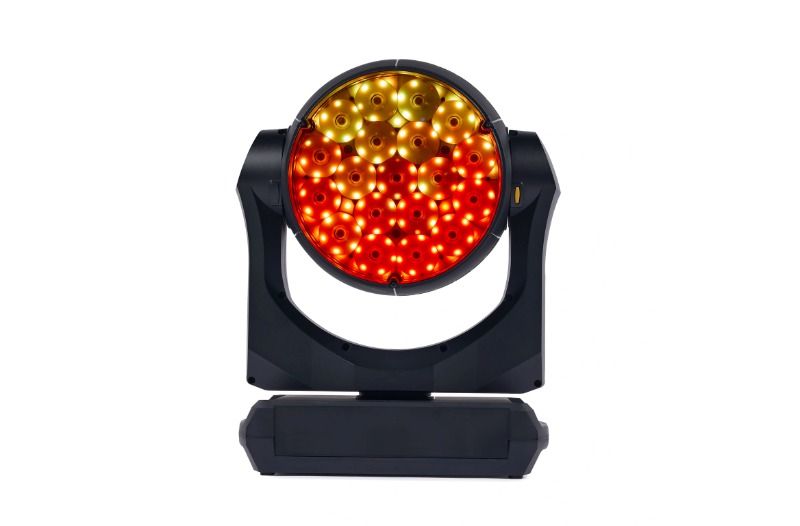

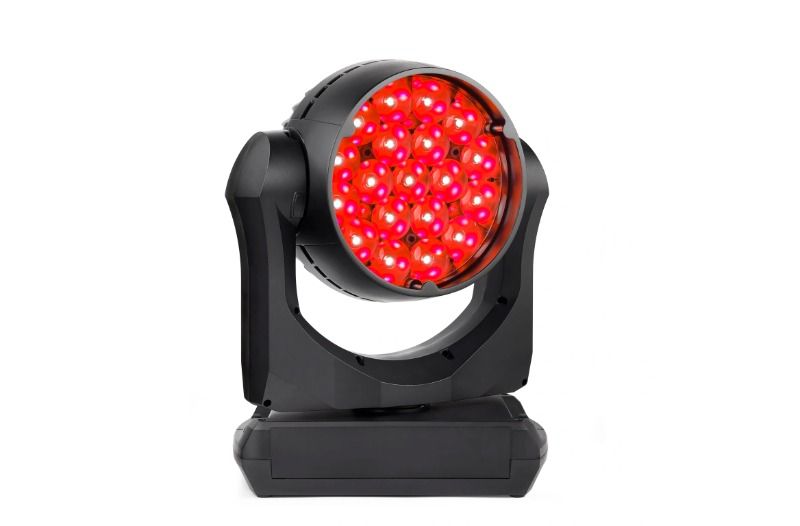

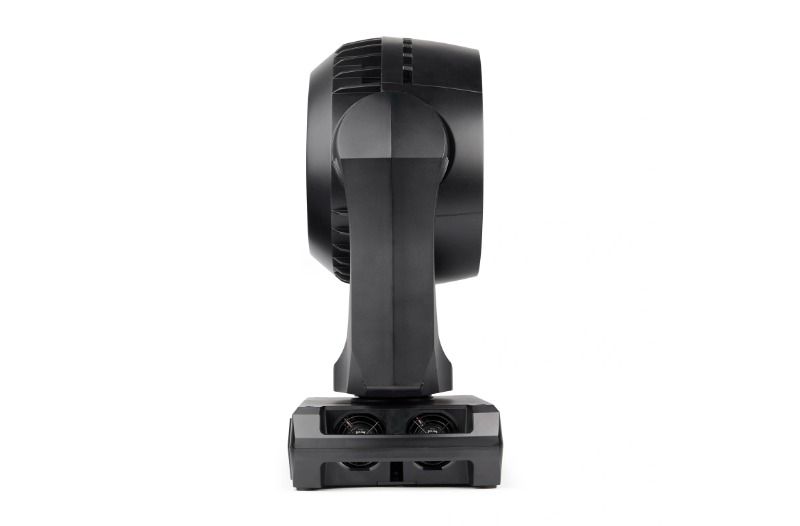

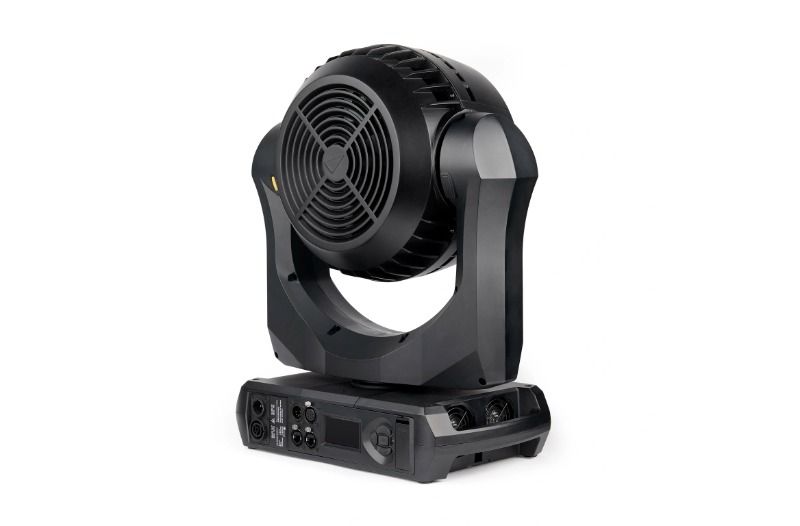

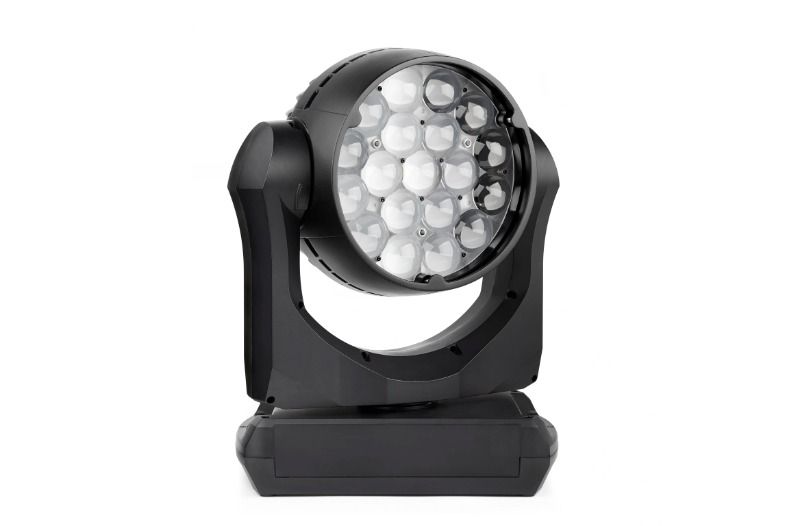

MAC Aura PXL

Marka : MARTIN
Ürün Kodu : MAC AURA PXL

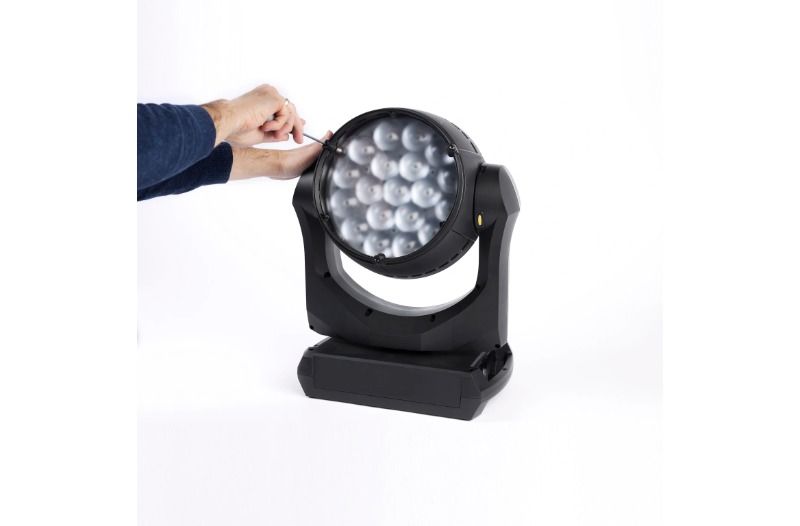

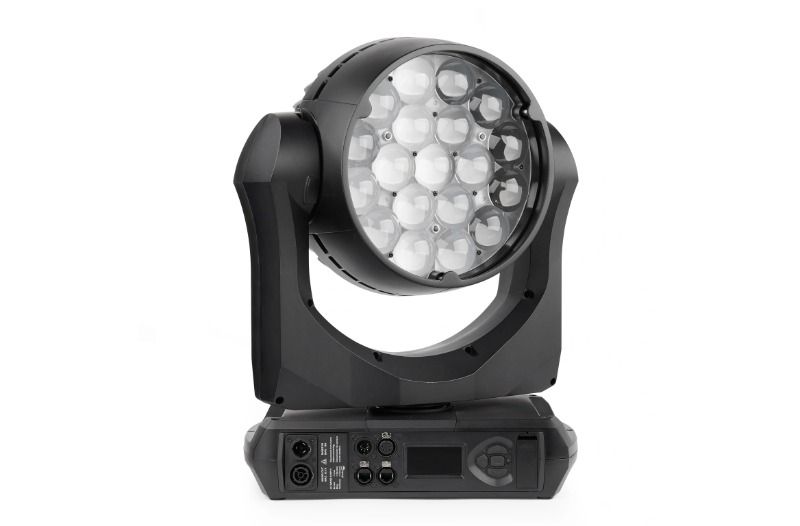

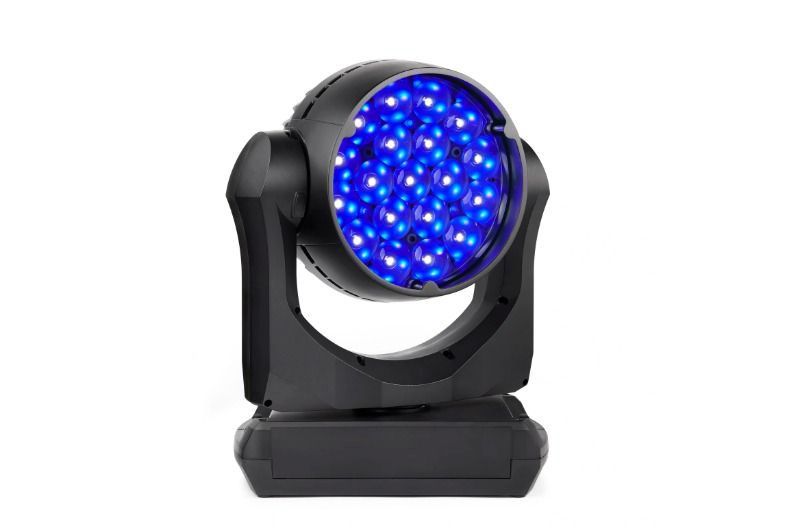

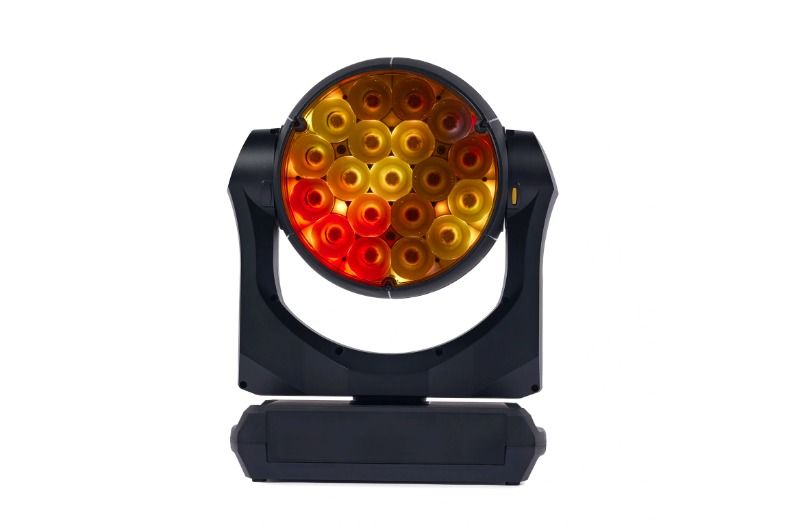

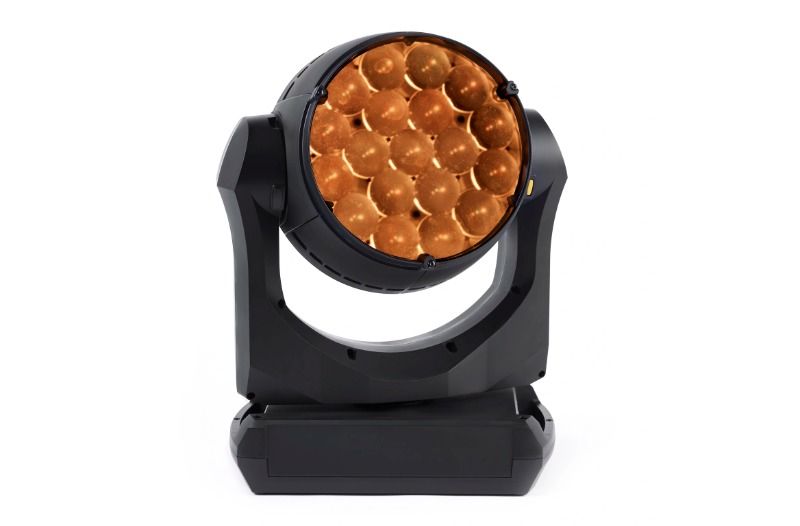

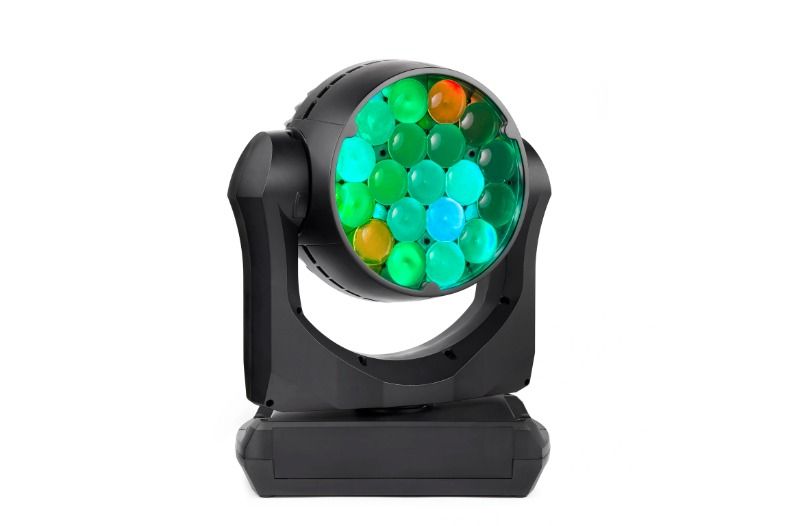

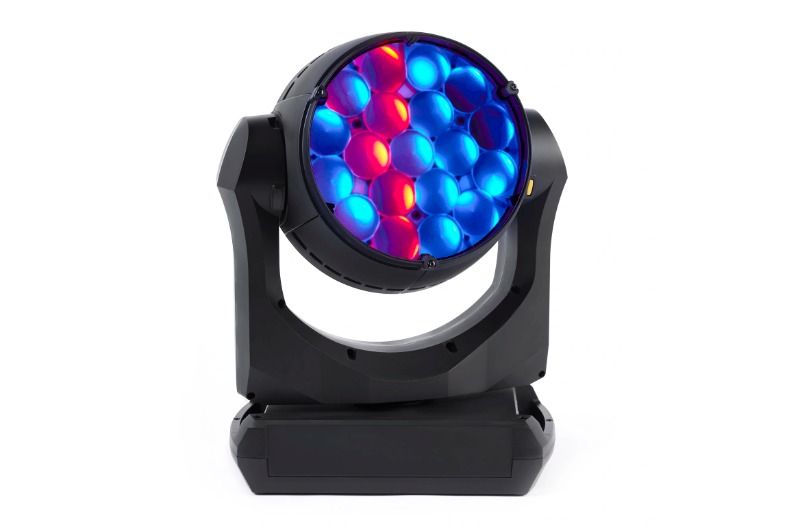

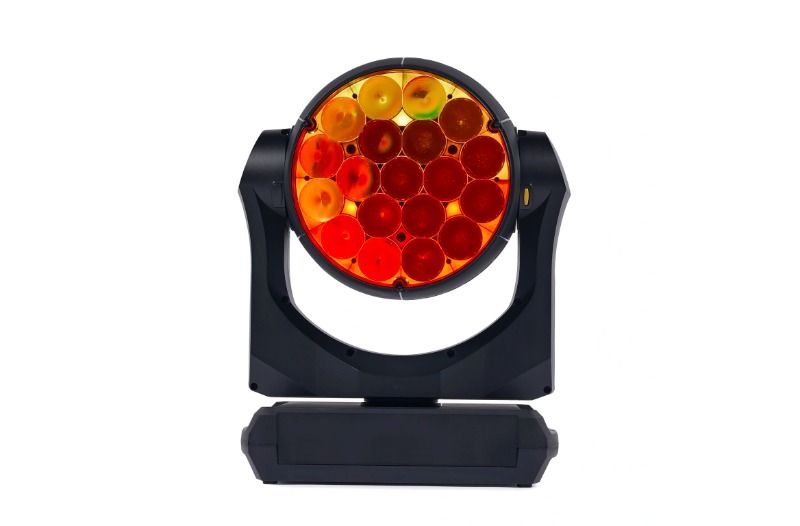

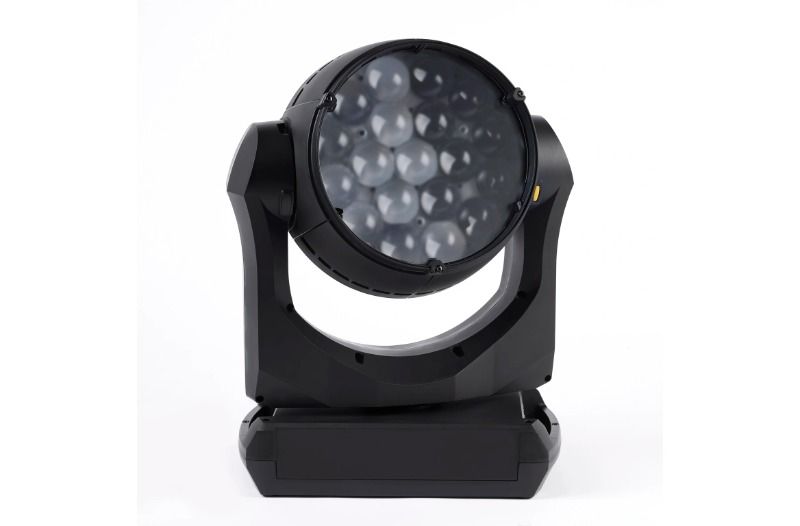

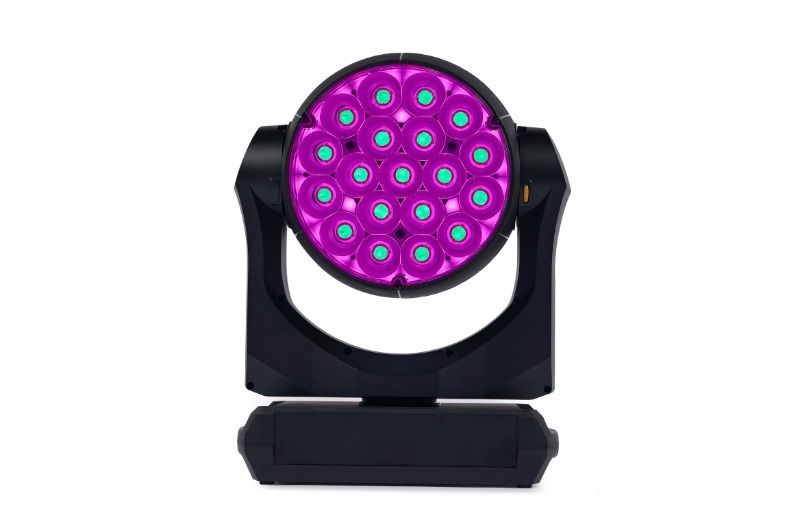

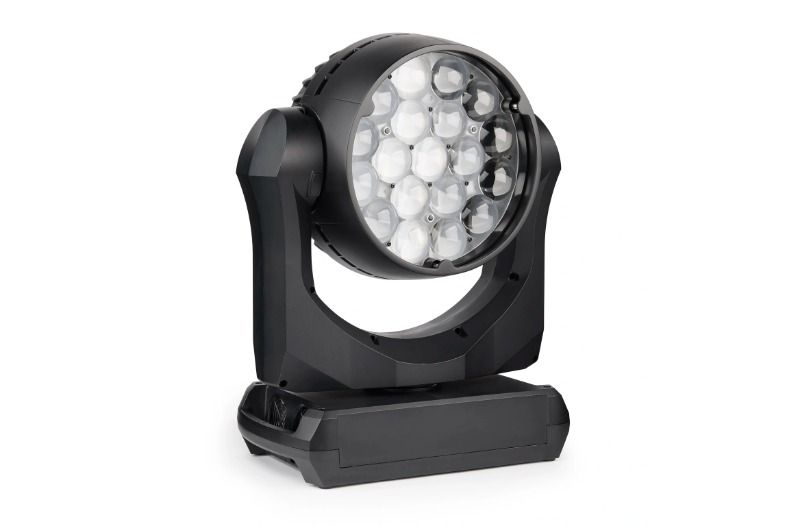

MAC Aura PXL
Orta Boy Yaratıcı Yıkama Işığı

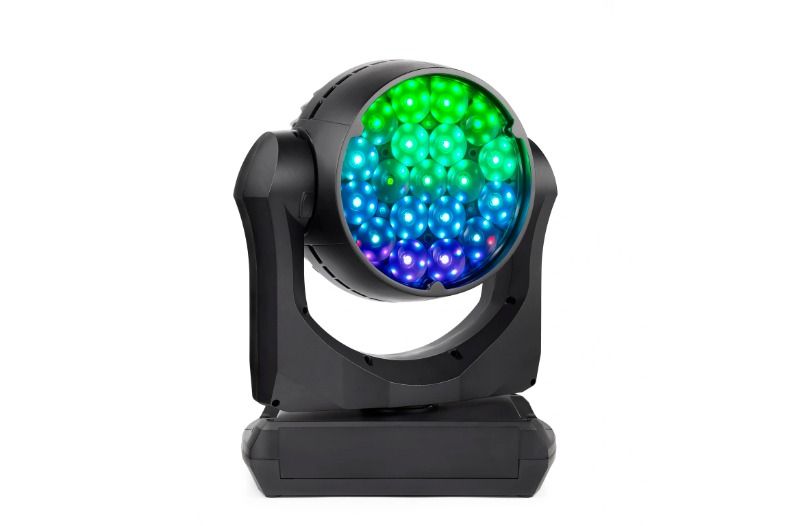

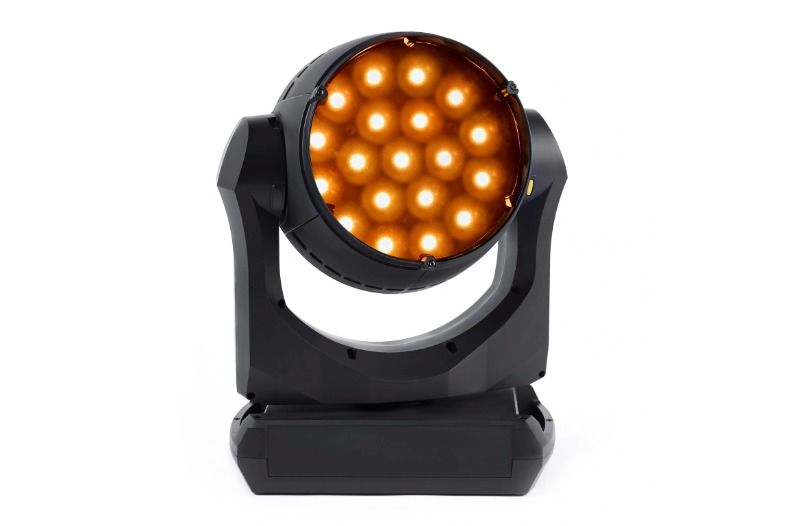

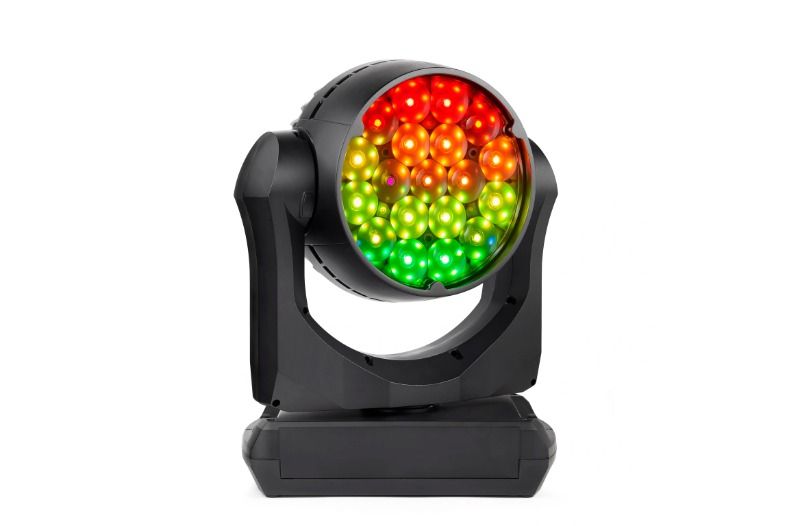

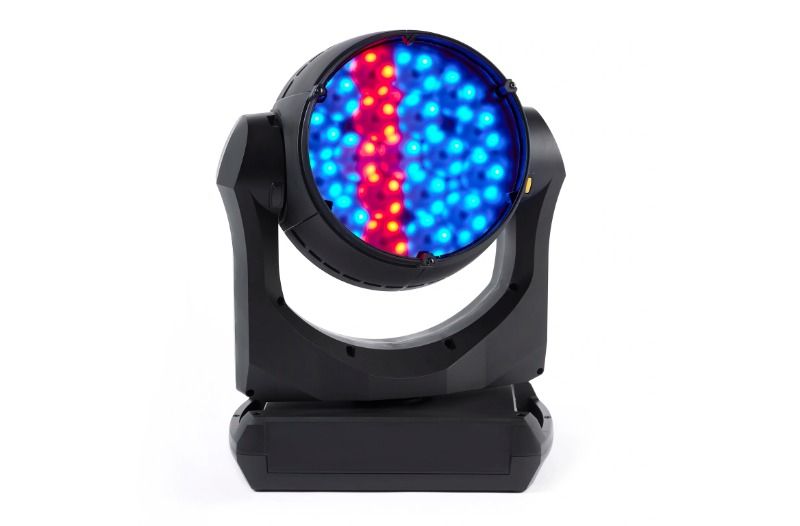

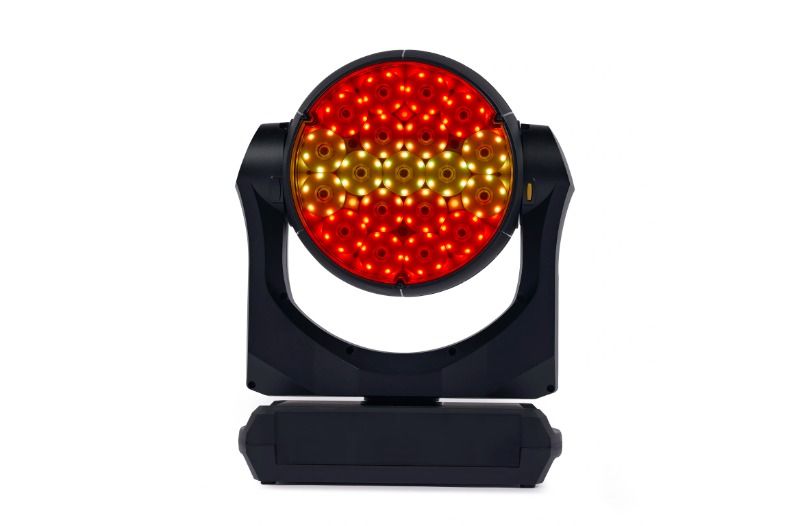

Martin MAC Aura PXL, çoklu lens ve Aura arka ışık teknolojisiyle endüstri standardı Martin yıkama lambaları serisine katkıda bulunuyor. MAC Aura'dan daha büyük ve daha parlak olan PXL, MAC Quantum Wash ile karşılaştırıldığında önemli ölçüde daha yüksek yoğunluk ve daha sıkı bir ışının yanı sıra daha küçük bir yüz ve daha az meşgul lens görünümüne sahiptir. MAC Aura PXL'in daha büyük "balonları" daha çekici bir görünüm ve güzel, geniş yıkama alanları sağlar.

Aynı zamanda, uzun far pikselleri için ayrı piksel kontrolü ve DMX, Art-Net ve sACN aracılığıyla tam kontrolün yanı sıra Martin'in kendi yaratıcı P3 video protokolü ile Aura arka aydınlatma özelliğine sahip pazardaki ilk yıkama lambasıdır.

Kompakt boyutu ve düşük ağırlığı, güvenilir Martin yapım kalitesi ve özellik seti ile basit ve akıllı kurulum ve kontrol seçenekleri, MAC Aura PXL'i konser/turne, TV şovları ve kurumsal sektörlerde çalışan kiralık müşteriler ve aydınlatma tasarımcılarının yanı sıra üst düzey gece kulübü pazarını destekleyen müşteriler için ideal kılar.

Özellikler

10.500 lümen RGBW ışık çıkışı
Yüksek dar yoğunluk: 940.000 cd

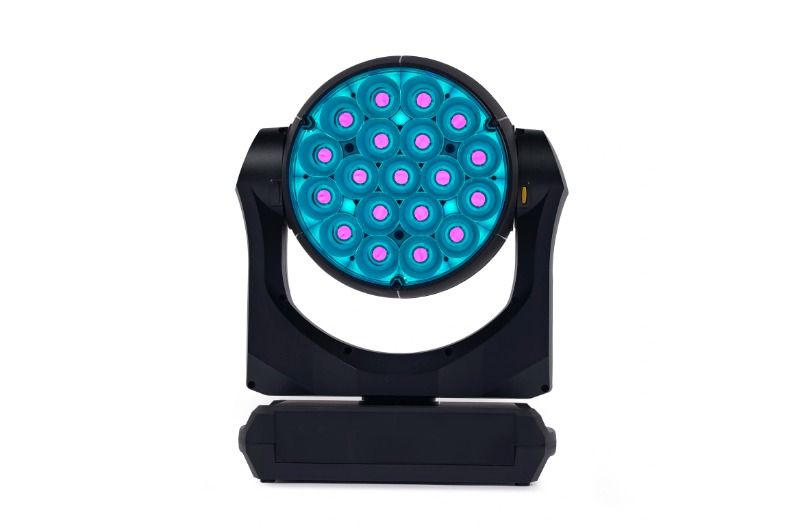

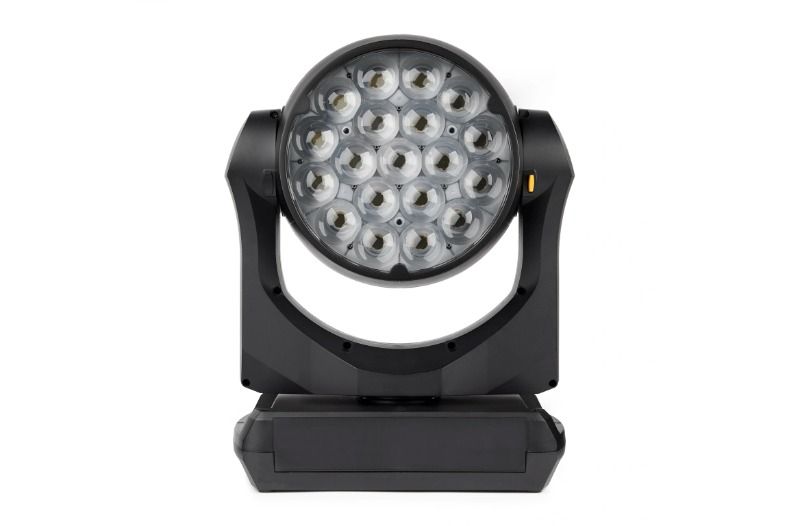

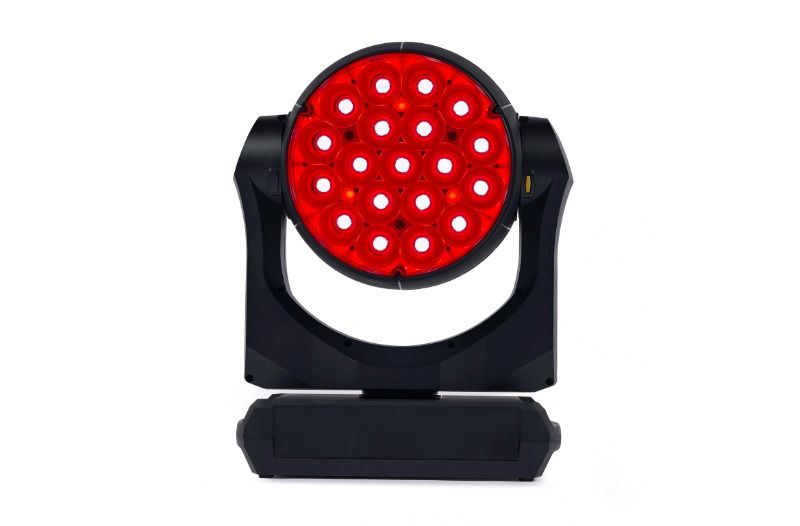

Pikselleştirilmiş Işın: 19x 40W RGBW LED'ler

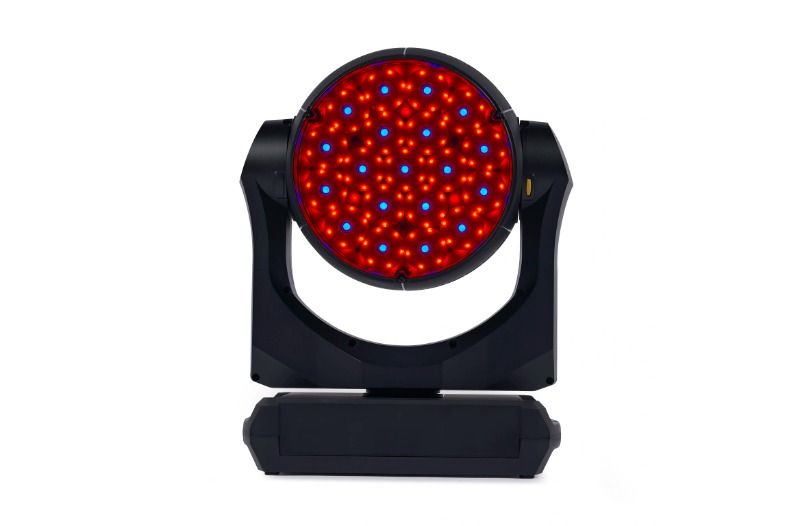

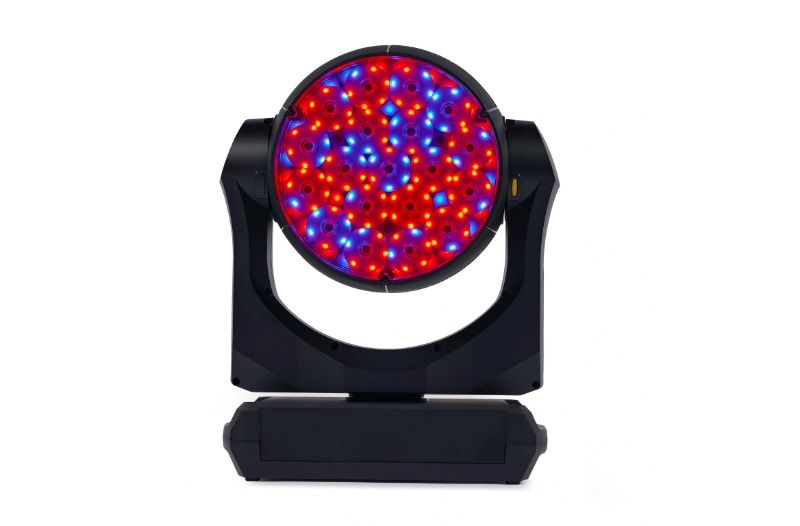

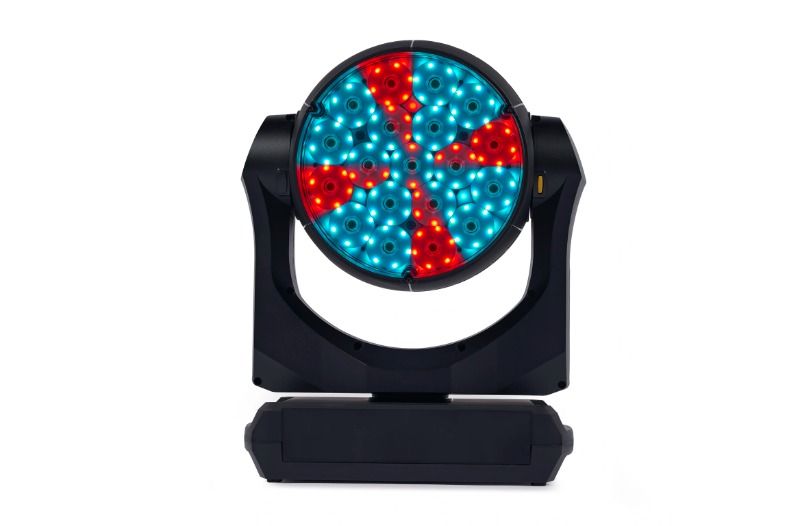

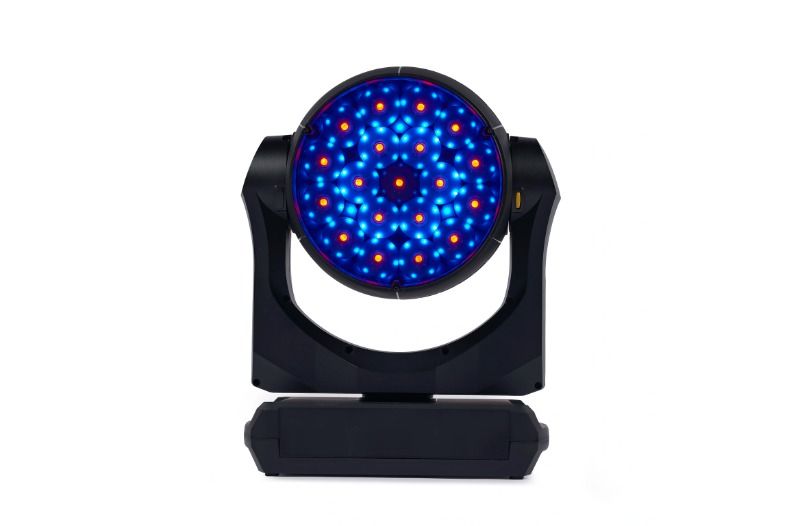

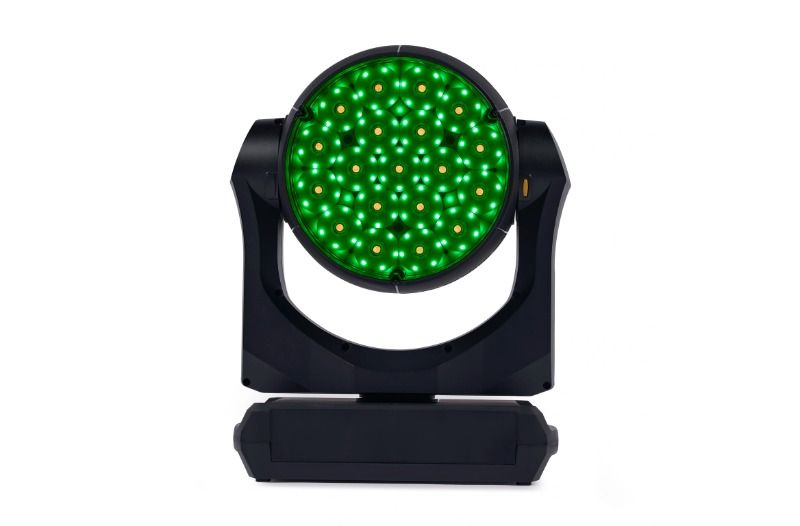

Pikselleştirilmiş Aura: 141x 0,3W RGB LED'ler
Martin'in Tam Gamut Renk Kalibrasyonu kullanılarak tamamen kalibre edilmiştir
Titreşimsiz çalışma - Her türlü kamera uygulamasına uygun LED sürücü frekansı
Zorlu uygulamalar için LED Sürücü frekansı ayarlanabilir

Physical
Width (across yoke)	410 mm (16.14 in.)Width (base): 385 mm (15.16 in.)Height (head forward): 516 mm (20.31 in.)Height (maximum): 544 mm (21.42 in.)Depth (head): 216 mm (8.50 in.)Depth (base): 232 mm (9.13 in.)Minimum center-to-center distance in side-by-side installation: 420 mm (17 in.)Weight: 15.60 kg (34.39 lbs)
Dynamic Effects
Beam Dimmer/Shutter	0 - 100% continuous dimming, regular and random strobe, instant open and blackoutBeam Dimming options: Choice of four dimming curvesBeam Color Mixing: RGB(W), independently variable 0 - 100%Beam Color Temperature Control: Variable 2,000 - 10,000 KBeam Virtual Color wheel: 48 color presets, continuous rotation & random colorZoom: Motorized with 1:8 zoom ratioPan: Motorized 540°Tilt: Motorized 268°Beam PixelMapping: individual RGB control of each of the 19 Beam pixelsBeam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlAura Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackoutAura Dimming options: Choice of four dimming curvesAura Color Mixing: RGB, independently variable 0 - 100%Aura Color Temperature Control: Variable 2,000 - 10,000 KAura Virtual Color wheel: 48 color presets, continuous rotation & random colorAura PixelMapping: individual RGB control of each of the 141 Aura pixelsAura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlPre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction controlLED Frequency control: Two LED PWM control rates
Control and Programming
Control Protocols	DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3Protocol Detection: AutomaticDMX Modes: Compact, Basic, Extended, Ludicrous & Compact DirectDMX Channels: 17, 32, 89, 512 & 17Multi-Universe Overflow: No16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and TiltSetting and Addressing: Display Menu, RDM, RDM over Art-Net or Martin P3Local User Interface: Backlit LCD Display with battery-powered operationFixture identification: User-settable ID numberDMX Compliance: USITT DMX512-ARDM Compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 - 2018Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: Galvanic-isolated RS-485DMX/RDM Daisy-Chain Limit: 32 fixturesEthernet Transceiver: 10/100Mbit (with fail-safe bypass)Ethernet Daisy-Chain Limit Recommendation: 50 fixturesFirmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
Front Lens Diameter	255 mm (10.04 in.)Zoom Range: 1:8Full Zoom Range at Half Peak (Beam Angle): 6° - 40°Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°Beam Light Source: 19 x 40 W RGBW LEDAura Light Source: 141 x 0.3 W RGB LEDMax. Total Beam LED Engine Power: 570 WMax. Total Aura LED Engine Power: 50 WMinimum LED lifetime: > 50.000 hours (to > 70% luminous output)* *Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output	19,000 lumensFixture Luminous Output Wide: 10,500 lumensFixture Luminous Output Narrow: 8,500 lumensPeak Luminous Intensity Narrow: 940,000 cdCCT: Variable 2,000 K - 10,000 K (+/- 200 K)CRI (Color Rendering Index): >= 73CQS (Color Quality Scale): >= 85TM-30 Rf (IES TM-30-15 Fidelity Index): >= 77TM-30 Rg (IES TM-30-15 Gamut Index): >= 117TLCI (Television Lighting Consistency Index): >= 61Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode (DMX controllable)Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode (DMX controllable)Binning: Tight color and flux binningCalibration: Full Gamut Color Calibration of Beam and AuraColor Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient* All Photometric Data measured at 6500 K white
Construction
Housing	High-impact flame-retardant thermoplasticColor: Black
Protection rating	IP 20
Installation
Mounting points	2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location	Indoor
Orientation	Any
Minimum distance to combustible materials	0.2 m (7.87 in.)
Minimum distance to illuminated surfaces	2.4 m (94.49 in.)
Connections
AC mains power in/thru	Neutrik powerCON TRUE1DMX and RDM data in/thru: Neutrik 5-pin locking XLREthernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCONFirmware from flash memory: USB 2.0 type A port
Electrical
AC power	100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 ATypical earth-leakage current: 0.36 mAPower Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 VMax current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 VTypical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V * Power ConsumptionMaximum: 560 WTypical: 500 W Idle: 81 W Hibernation: 37 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal

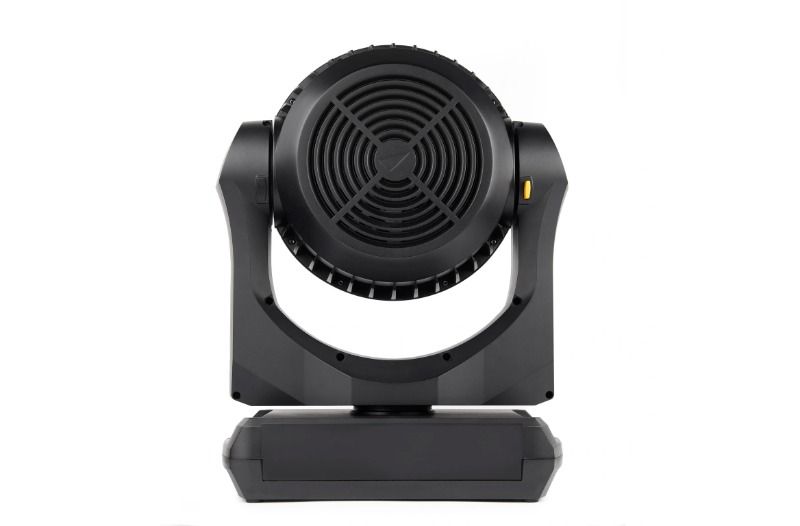

Cooling	Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient	53° C (128° F)
Total heat dissipation (calculated, +/- 10%)	1563 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output)	32.6 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low)	24.6 dB(A)
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
Efficacy (max output)	25.4 lm/W
LWR*	705 lm/kg (320 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE	IEC 60598-2-17 (IEC 60598-1)
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
United Kingdom	UKCA
Thailand	TIS
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachmentMulti-Language Safety and Installation Manual
Related Items
Martin Companion Cable (for firmware update over DMX)	P/N 91616091
Martin Companion Software (for firmware update over DMX/Ethernet)	Free download from www.martin.com
Accessories

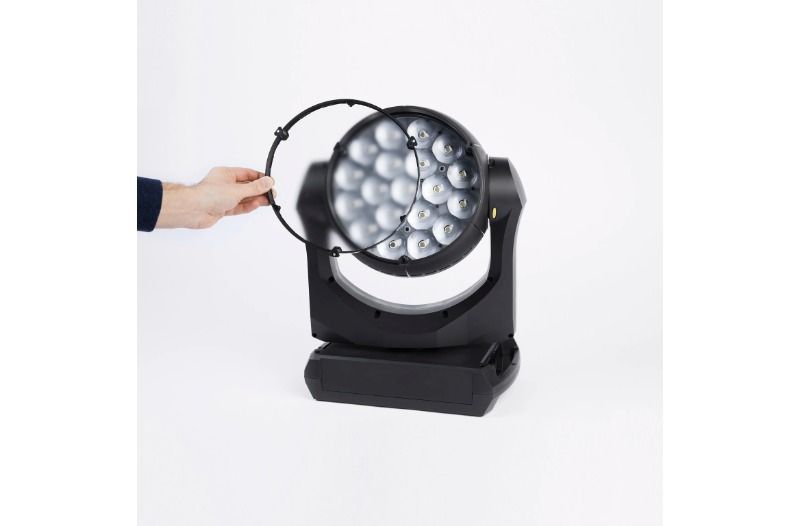

OpticalMAC Aura PXL SoftLens	P/N MAR-91614062HUTransport and StorageFlightcase for 3 x MAC Aura PXL: P/N 91515052Additional SiP Foam Flightcase Insert for MAC Aura PXL: P/N 91611860HUConsumablesCR123A 3-volt lithium battery: P/N 05801011Power Input CablesPower Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173Power Linking CablesPower relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172Power ConnectorsCable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HUCable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HUInstallation HardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Half-coupler Clamp: P/N 91602005Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Verified Third-Party Accessories

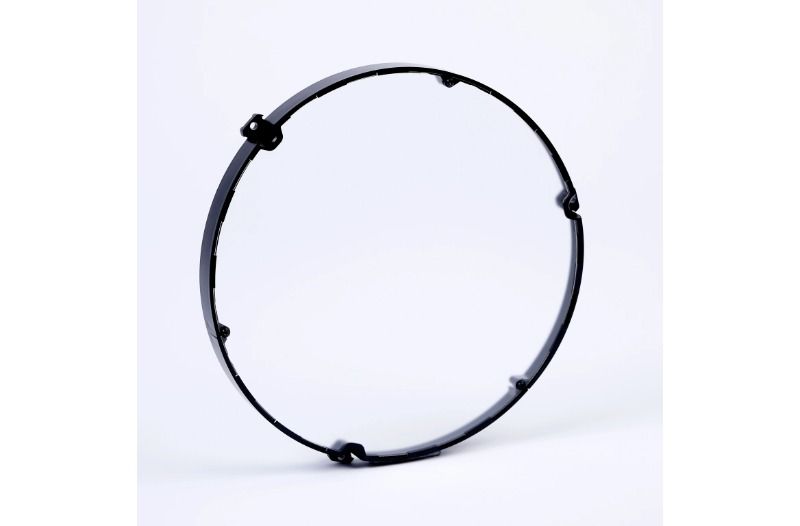

Beam ControlMAC Aura PXL Top Hat	P/N City Theatrical2786MAC Aura PXL Hexcel Louver: P/NCity Theatrical 2787MAC Aura PXL Concentric Ring: P/N City Theatrical 2788MAC Aura PXL Beam Control Accessory Mount Kit: P/N City Theatrical 27880001
Ordering Information
MAC Aura PXL EPS (in cardboard box, polystyrene packaging)	P/N 90250035HU
MAC Aura PXL SIP (in cardboard box with SIP foam flight case insert)	P/N 90250040HU
MAC Aura PXL, white finish, EPS (in cardboard box, polystyrene packaging)	P/N 90250030HU
