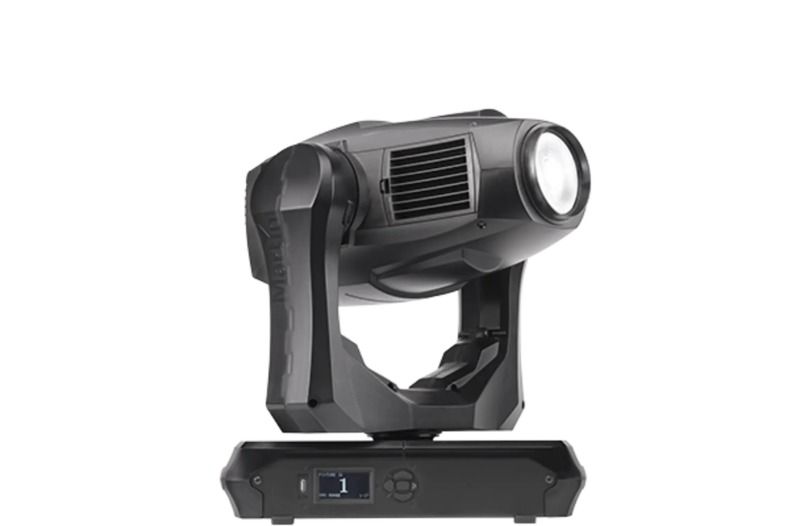

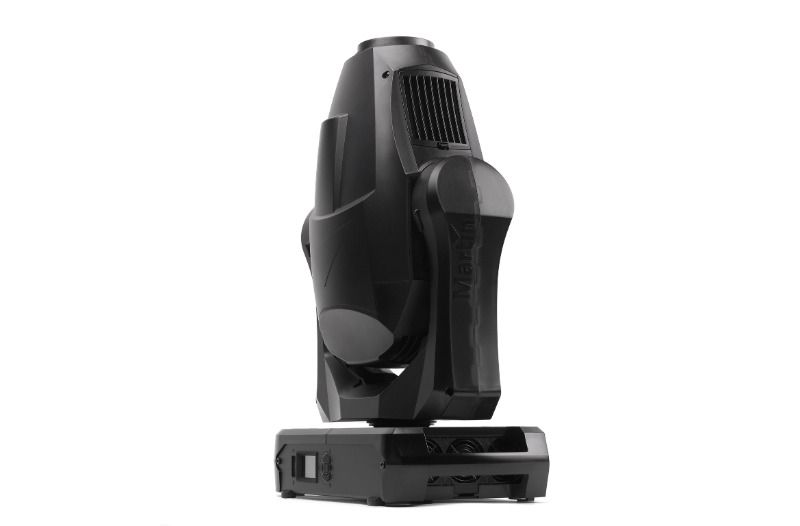

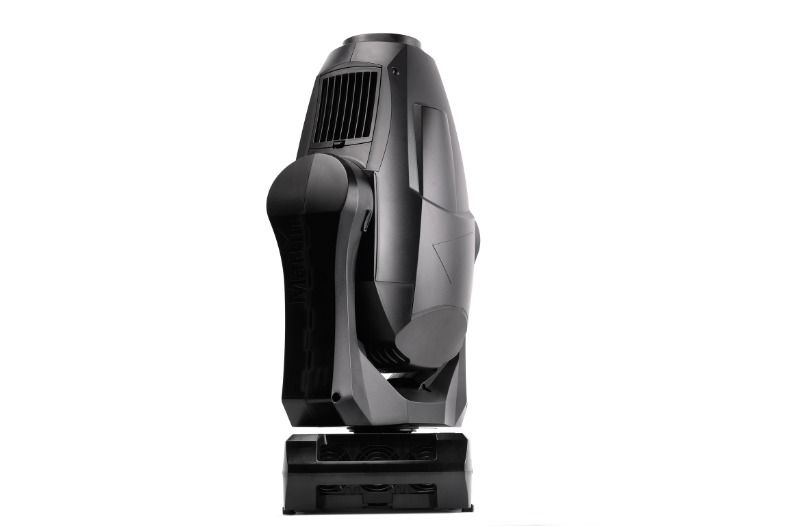

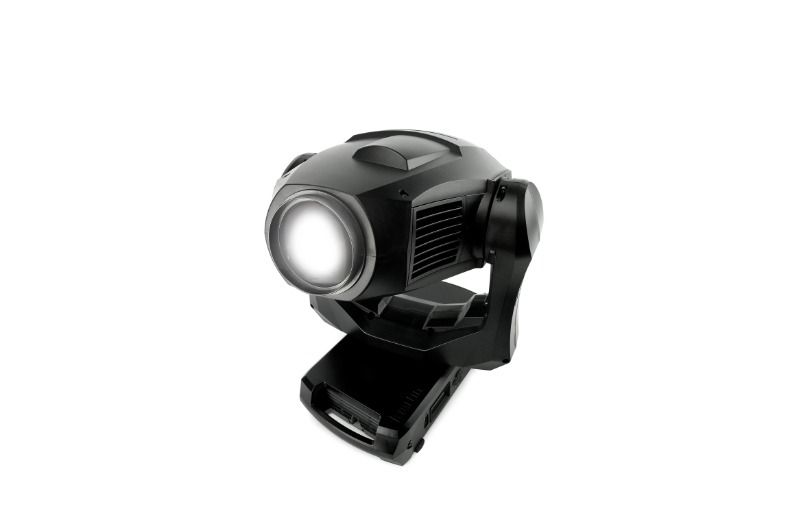

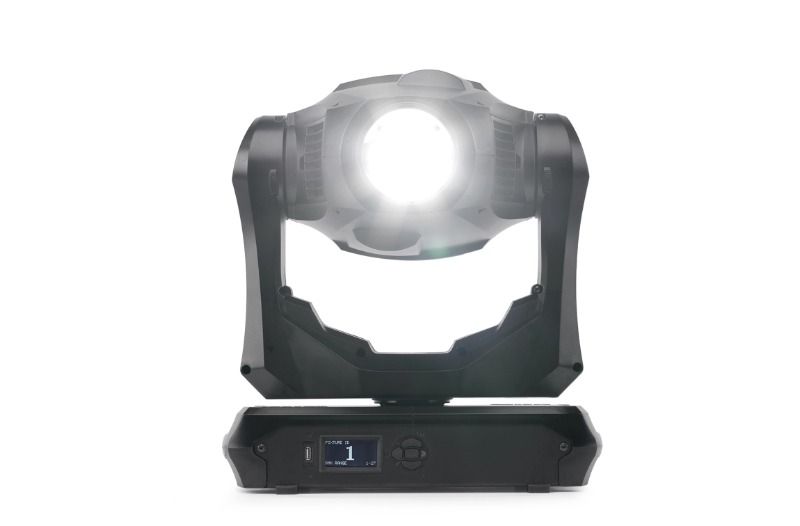

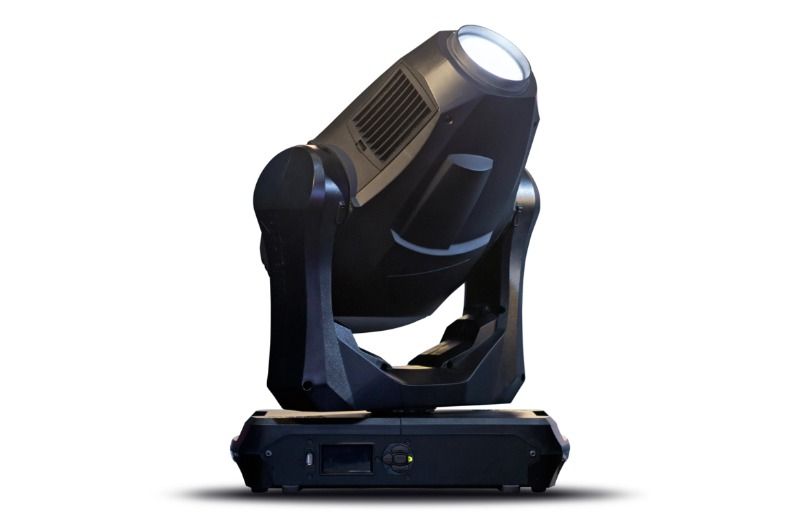

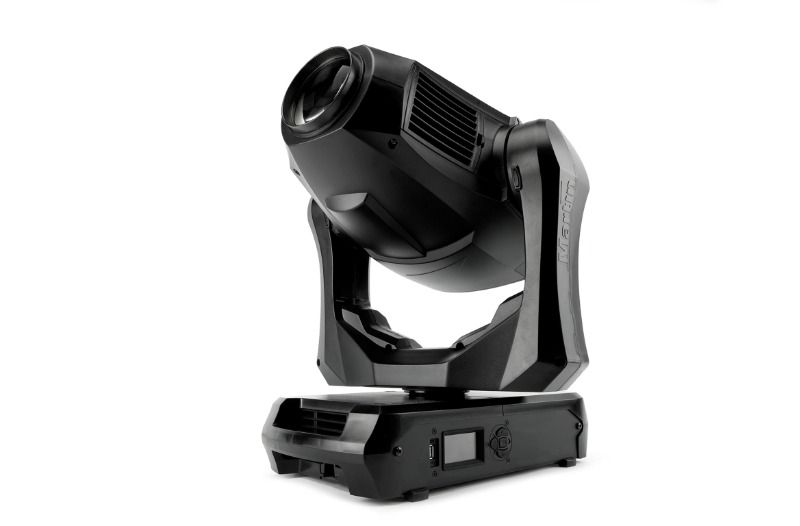

MAC Quantum Profile

  • Marka : MARTIN
  • Ürün Kodu : MAC QUANTUM PROFILE

MAC Kuantum Profili (üretilmiyor)
Hızlı ve hassas CMY renk karışımıyla parlak beyaz LED spot

Bu son derece parlak LED profil armatürü, yüksek kaliteli beyaz ışığı hızlı, pürüzsüz CMY renk karıştırma sistemi ve hem yüzeylerde hem de havada net gobo projeksiyonu ile birleştirir.

Tüm bunlarla ve daha önce hiç görülmemiş ışın animasyonlarına olanak tanıyan yeni Animotion FX sistemiyle, pazar artık en son LED teknolojisini etkili bir şekilde kullanan bir profil armatürde ilk gerçek 700/800 W deşarj lambası değişimini nihayet görüyor.

Özellikler

  • 700/800 watt HID armatürüne ilk gerçek alternatif
  • Düz alan, net görüntü, yüksek kontrast
  • CMY renk karıştırma ve 1:3 yakınlaştırmayı içeren tam özellik seti
  • Çok düşük ağırlık ve kompakt tasarım
  • Süper yüksek hızlı hareketler ve efektler
  • En son LED teknolojisi sayesinde tutarlı fotometrik performans

Physical
Length 452 mm (17.8 in.)
Width 431 mm (17.0 in.) across yoke
Height 642 mm (25.3 in.) head straight up648 mm (25.5 in.) maximum
Weight 23.2 kg (51.1 lbs.)
Dynamic Effects
Color mixing CMY, independently variable 0 - 100%
Color wheel 6 color filters plus open
Beam effects Rotating three-facet prism
Rotating gobo wheel 6 interchangeable gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel 10 gobos plus open, wheel indexing, rotation and shake
Iris 0 - 100%, pulse effects
Zoom Motorized
Shutter effect Electronic, with variable speed regular and random strobe
Electronic dimming Four dimming curve options
Pan 540°
Tilt 268°
Pan and tilt speed Adjustable via onboard control panel and DMX
Focus Motorized, with zoom-focus tracking
Control and Programming
Control systems DMX
Control resolution 8-bit, with 16-bit control of dimming, gobo indexing, zoom, focus, pan and tilt

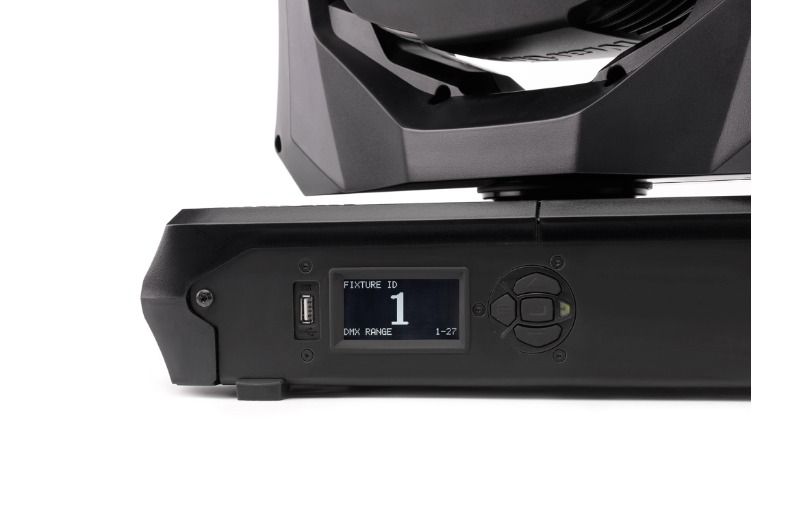

Setting and addressing Control panel with backlit graphic display
RDM Implemented
DMX channels 19/27
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Transceiver RS-485
Fixture software update Direct using USB memory stick or via DMX link using Martin USB Duo DMX Interface Box
Optics
Zoom range 12° - 36° (1:3)
Light source 475 W LED engine
Minimum LED lifetime 50,000 hours (to >70% luminous output)*
LED refresh rate 3000 Hz
Default color temperature 6000 K
Output 12,700 lm
*Figure obtained under manufacturer´s test conditions
Photometric Data
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Lamp
Construction
Housing High-impact flame-retardant thermoplastic
Color Black
Protection rating IP20
Installation
Mounting points 4 pairs of quarter-turn locks
Location Indoor use only, must be fastened to surface or structure
Orientation Any
Minimum distance to combustible materials 0.2 m
Minimum distance to illuminated surfaces 2.0 m

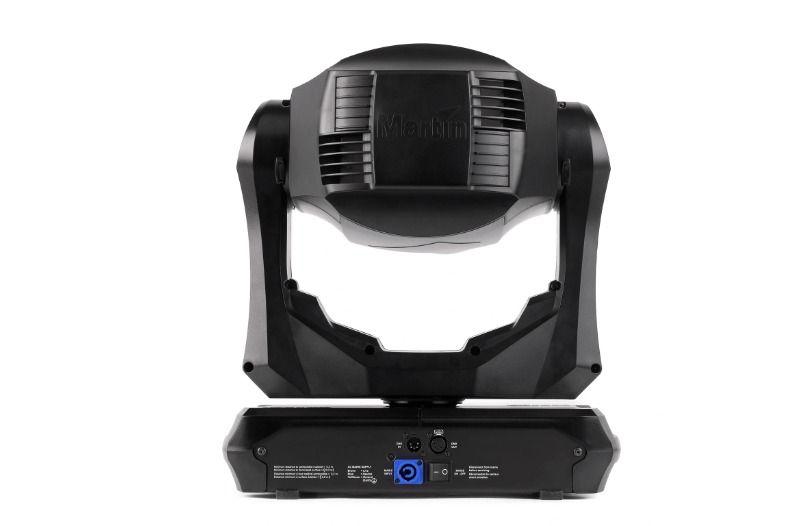

Connections
AC power input Neutrik PowerCon
DMX and RDM data in/out 5-pin locking XLR
Electrical
AC power 120-240 V AC nominal, 50/60 Hz Power supply unit: Auto-ranging electronic switch mode Typical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A Power Factor: 0.99 @ 120 V / 208 V / 230 V / 240 V Typical current draw: 4.8 A @ 120 V , 2.8 A @ 208 V , 2.5 A @ 230 V , 2.4 A @ 240 V * Power Consumption Maximum: 750 W Typical: 576 W * Idle: 50 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.) 40° C
Minimum ambient temperature (Ta min.) 5° C
Total heat dissipation (calculated, +/- 10%) 2000 BTU/hr.
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 21
LWR* LWR = Lumen-to-Weight Ratio
Approvals
EU safety EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety UL 1573
US EMC FCC Part 15 Class A
Canadian safety CSA C22.2 No. E598-2-17 (CSA E60598-1)
Canadian EMC ICES-003 Class A
Australia/NZ C-TICK N4241
Thailand TIS
Included Items
2 x Omega brackets for rigging clamp attachment P/N 91602001
Related Items
Martin Companion Cable P/N 91616091
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Accessories
Power Input Cables Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800 Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177 Power input cable 3 x 2.5 mm2, H07RN-F OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801 Power input cable 3 x 14 AWG, SJOOW OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178 (H07RN-F are European approved cables, SJOOW are US approved cables)
Power connectors Power Connector PowerCON Female : P/N 91611794
Installation hardware G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003 Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007 Half-coupler Clamp: P/N 91602005 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006 Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Flightcase for 2 x MAC Quantum P/N 91510210
Ordering Information
MAC Quantum Profile in cardboard box P/N 90240000
MAC Quantum Profile in 2-unit flightcase P/N 90240010
