MAC One

Marka : MARTIN
Ürün Kodu : MAC ONE

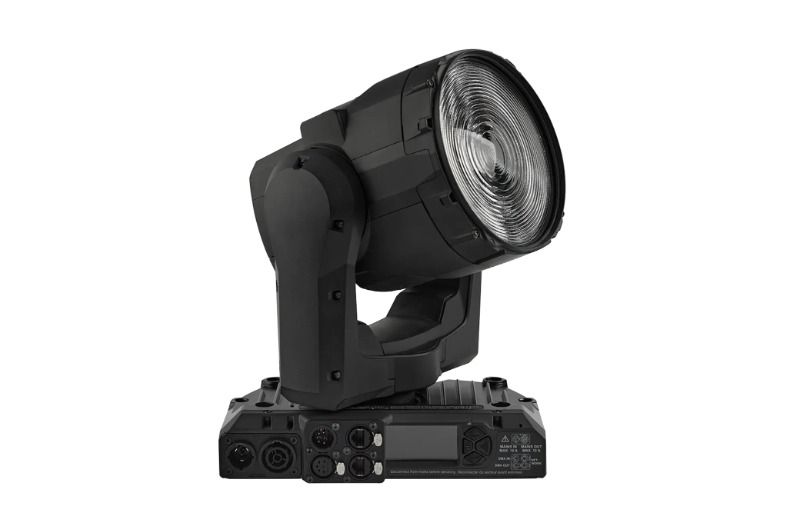

MAC Bir

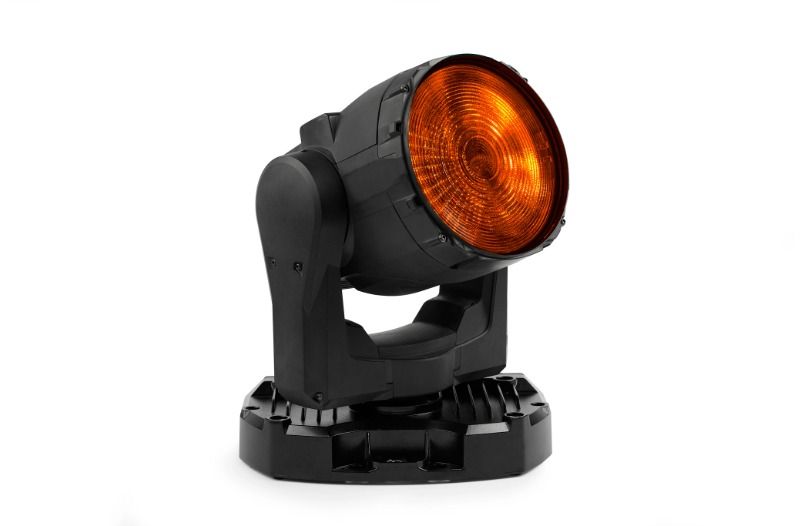

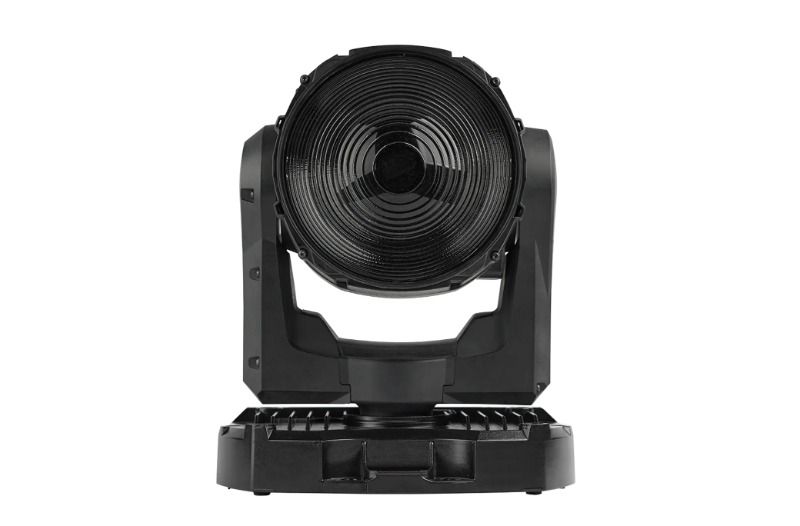

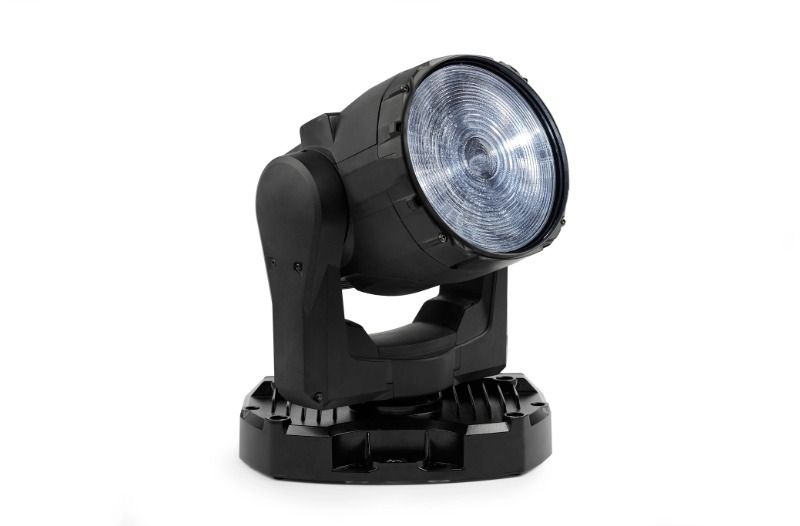

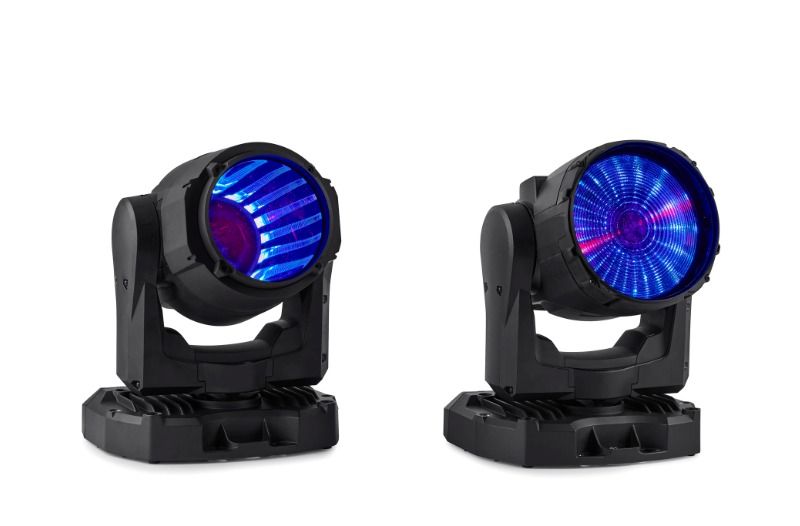

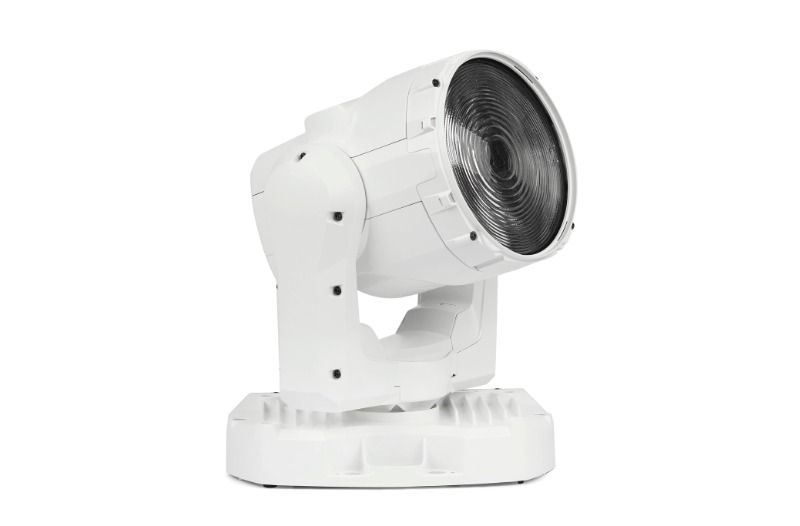

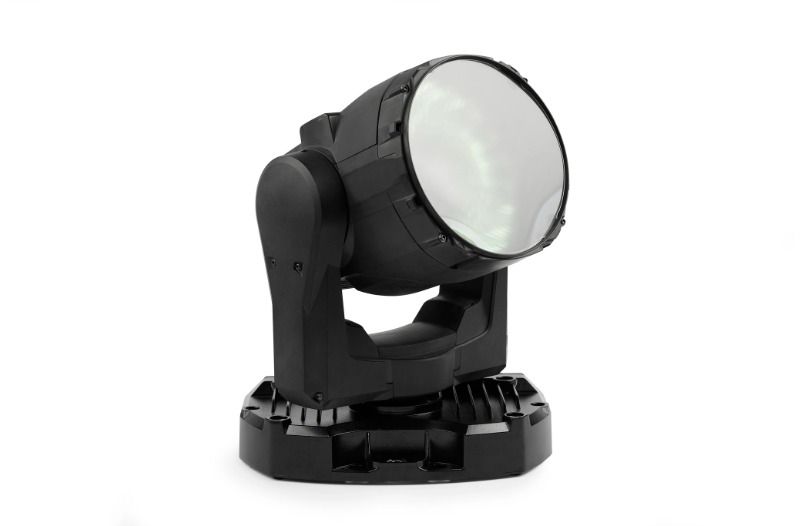

Fresnel Lensli Creative BeamWash Hareketli Kafa

Kompakt hareketli kafalar için yeni bir standart belirleyen MAC One, herhangi bir sahneyi veya etkinliği olağanüstü bir görsel gösteriye dönüştüren büyüleyici bir Fresnel lense sahip, devrim niteliğinde bir Işın, Yıkama ve Göz Şekeri armatürüdür. Kompakt, hafif ve çok yönlü MAC One, performans aydınlatmasında yeni bir kompakt sınıf tanımlar.

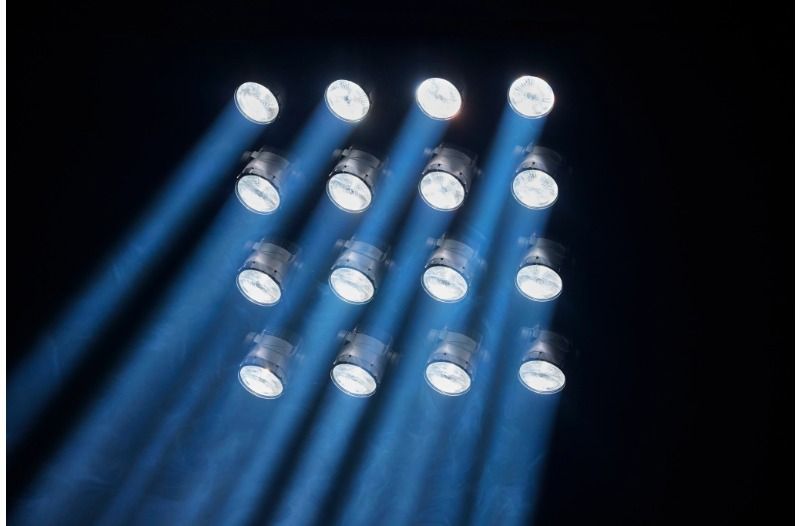

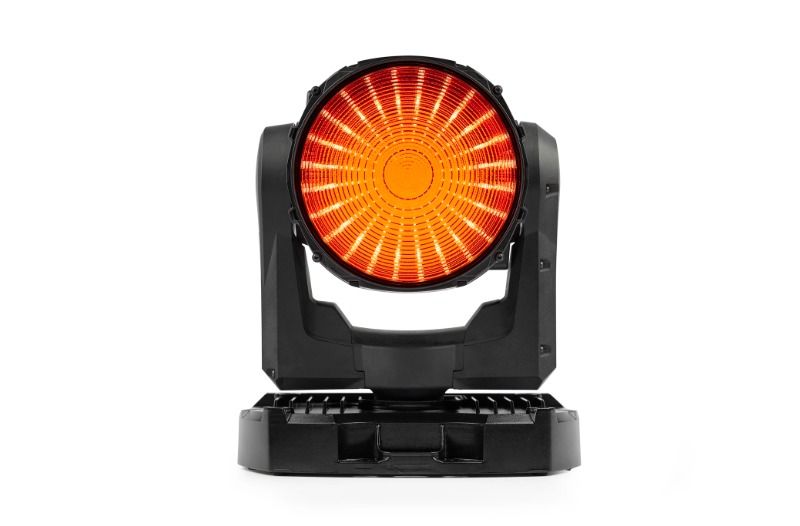

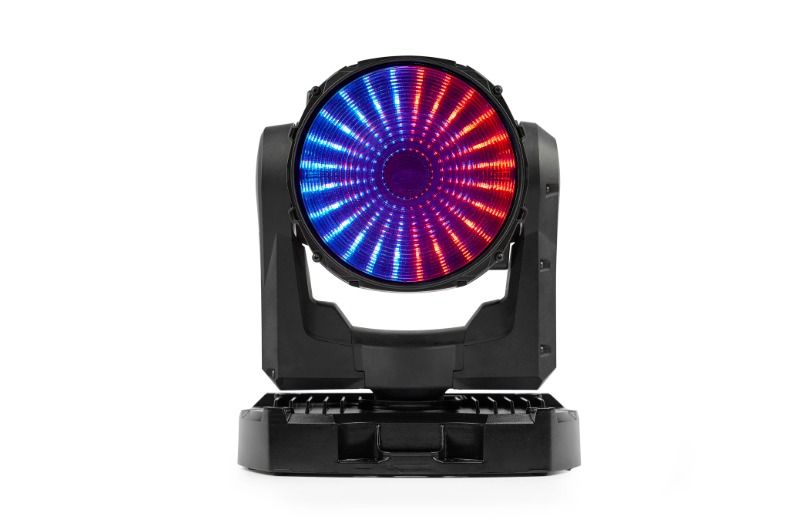

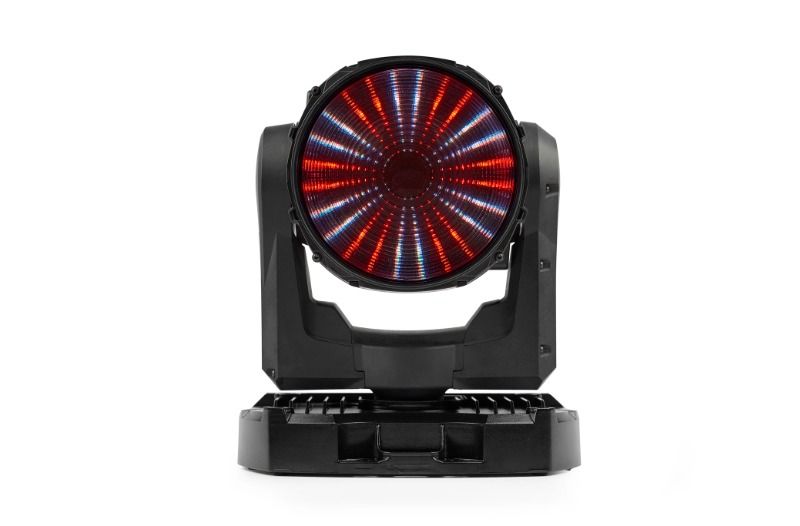

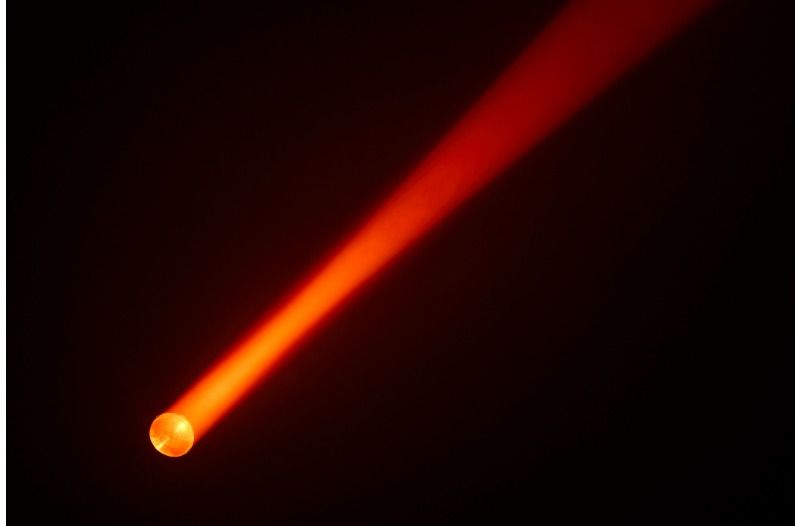

MAC One üç güçlü özellik alanında öne çıkıyor. Birincisi, dar, yüksek yoğunluklu ışın, sağlam ve canlı hava efektleri sağlamak için daha büyük, daha ağır armatürlerle aynı etkiyi sağlar. Daha sonra, çarpıcı Fresnel lensi, 4 ila 27 derece yakınlaştırma aralığıyla yumuşak bir yıkama oluşturarak kusursuz geçişler ve ilgi çekici görsel efektler sunar. Sağlam özellik setini tamamlayan, unutulmaz ve dikkat çekici görsel deneyimleri garanti eden lens içindeki 24 RGB efektli LED'e sahip yenilikçi bir arka ışık sistemidir.

2.500 lm'lik etkileyici çıktı ve 375.000 cd'lik dar ışın yoğunluğuyla MAC One'ın performansı kendi kategorisinde benzersizdir. Özel olarak geliştirilmiş 120 W RGBL (Kırmızı, Yeşil, Mavi, Limon) LED motoruyla güçlendirilen bu ürün, geleneksel RGBW armatürlerden daha yüksek ışık kalitesi (CRI, TM-30, TLCI) sağlayarak seçici aydınlatma tasarımcılarına hitap ediyor.

MAC One, inanılmaz derecede kompakt ve düşük ağırlıklı bir form faktöründe yenilikçi bir özellik kombinasyonu sunarak rakip armatürlere karşı öne çıkıyor. Armatürün kullanımı ve yönetimi kolaydır ve aydınlatma tasarımcıları ve kullanıcıları için yaratıcı olanaklar dünyasının kapılarını açar. Ağırlık veya alan sınırlamalarından ödün vermeden bir gösteride daha fazla donanım kullanılabilir, bu da nakliye maliyetlerinin düşmesine ve kiralama şirketleri için önemli bir yatırım getirisine yol açar.

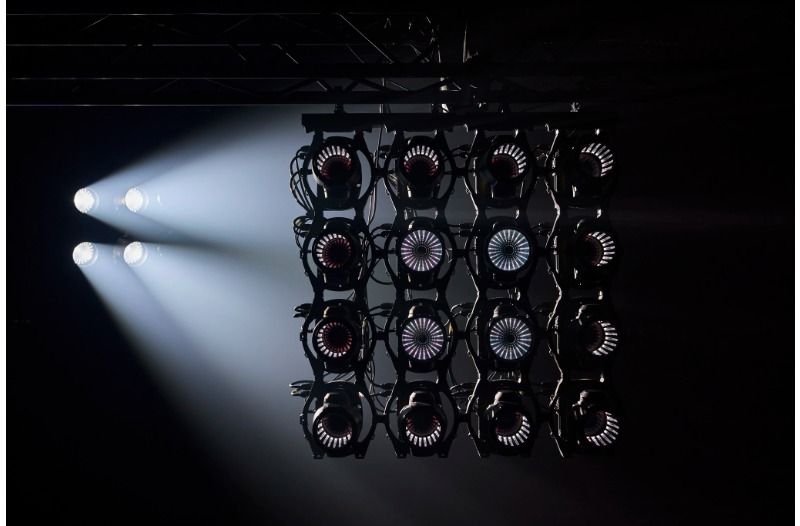

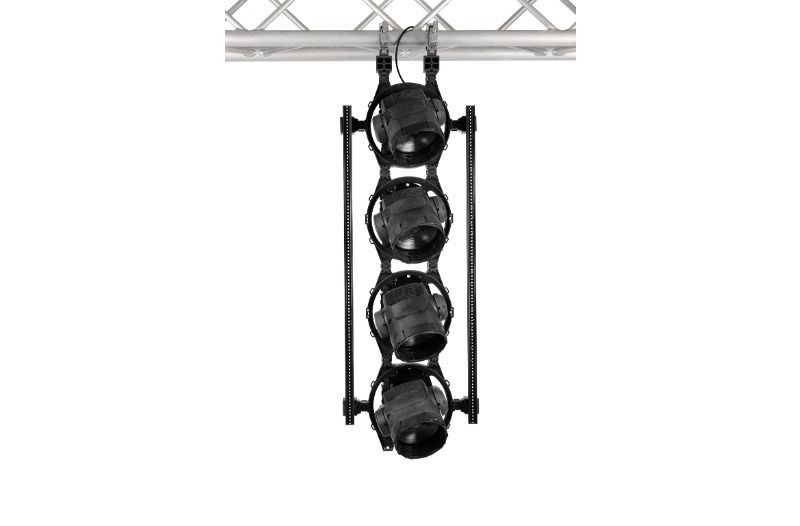

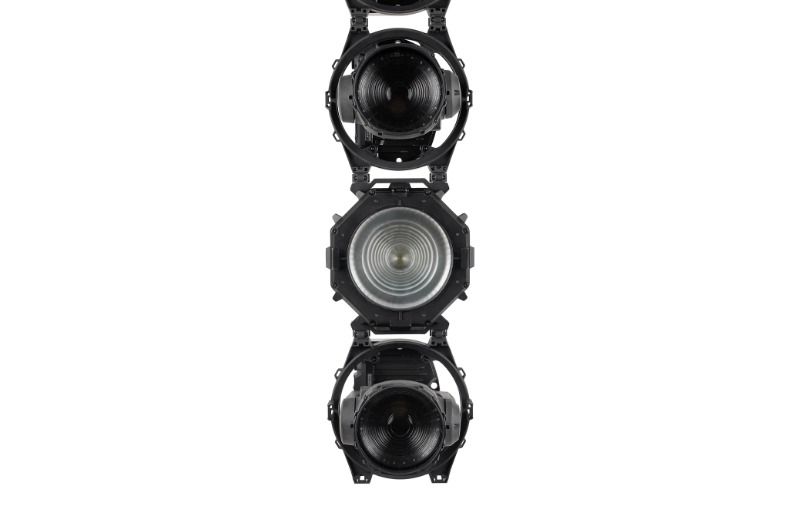

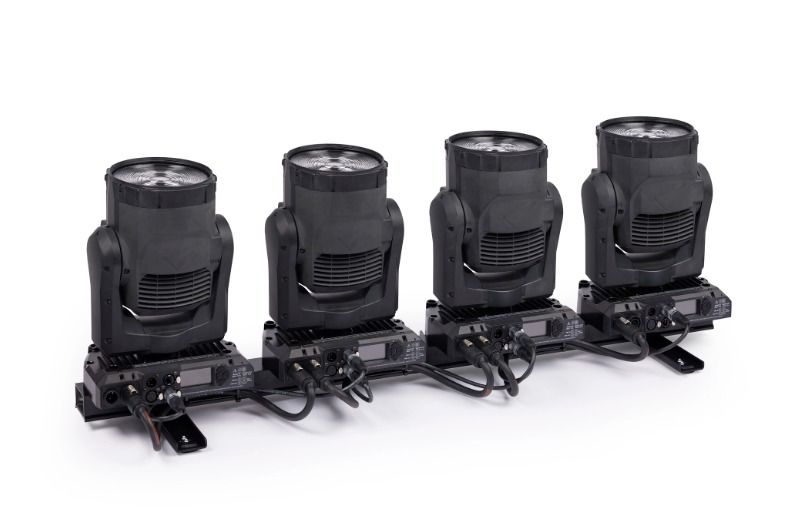

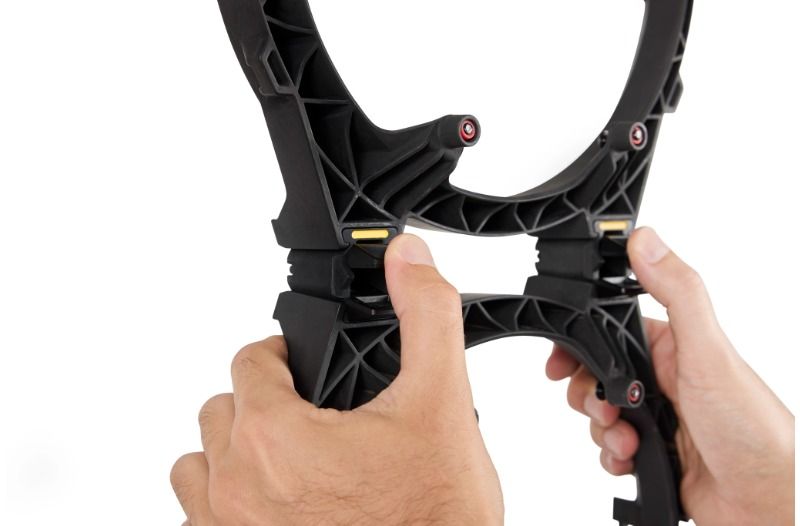

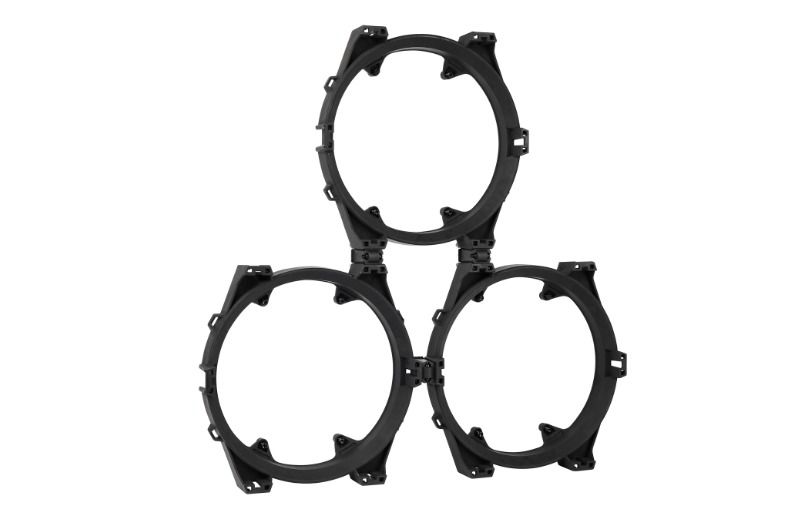

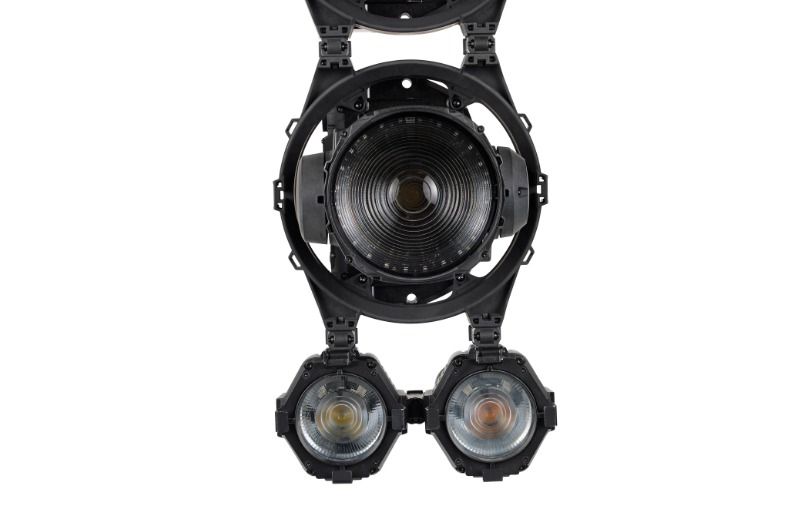

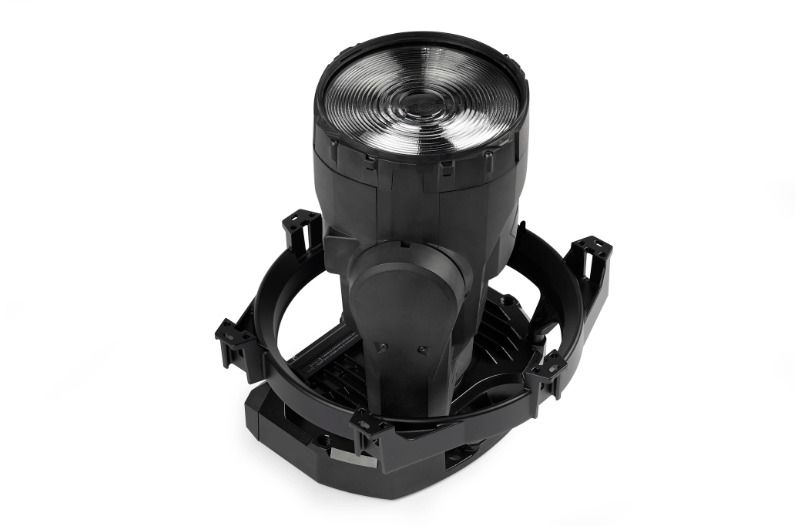

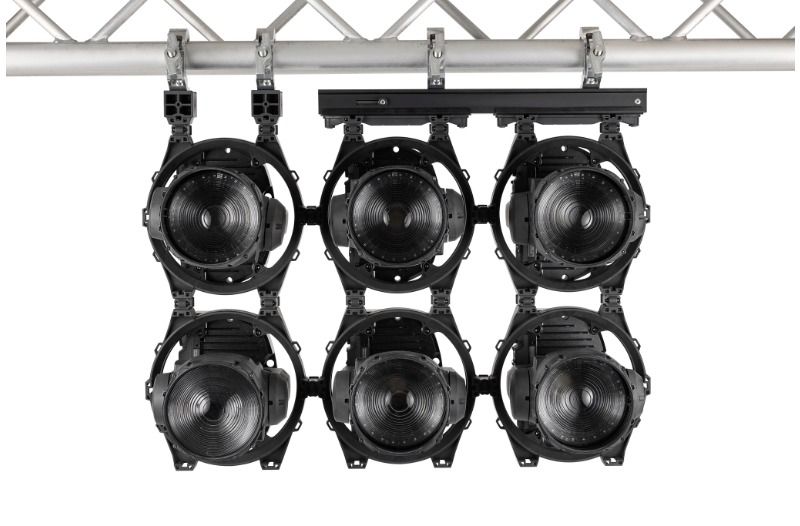

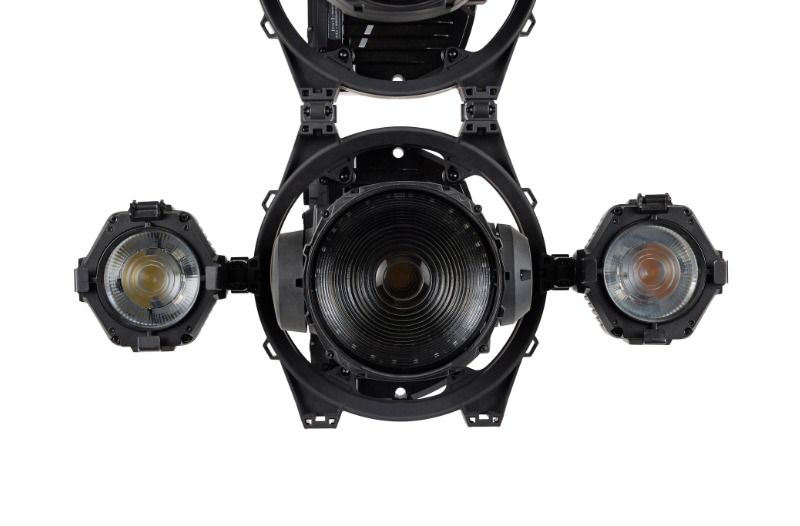

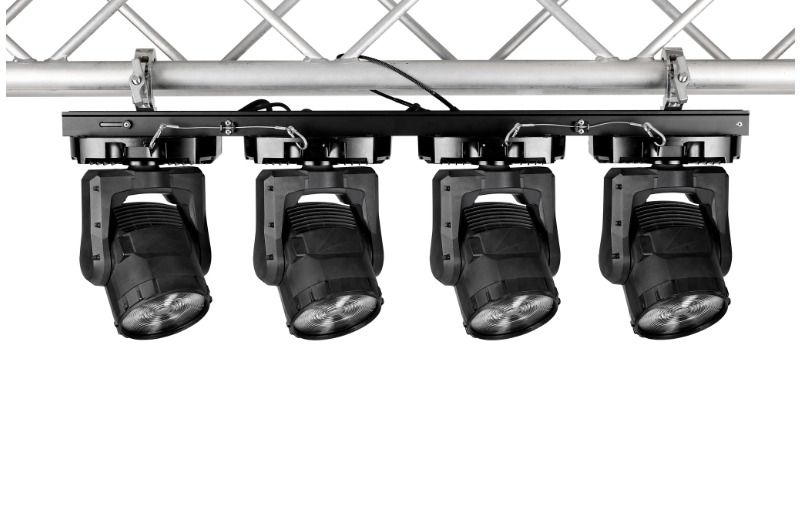

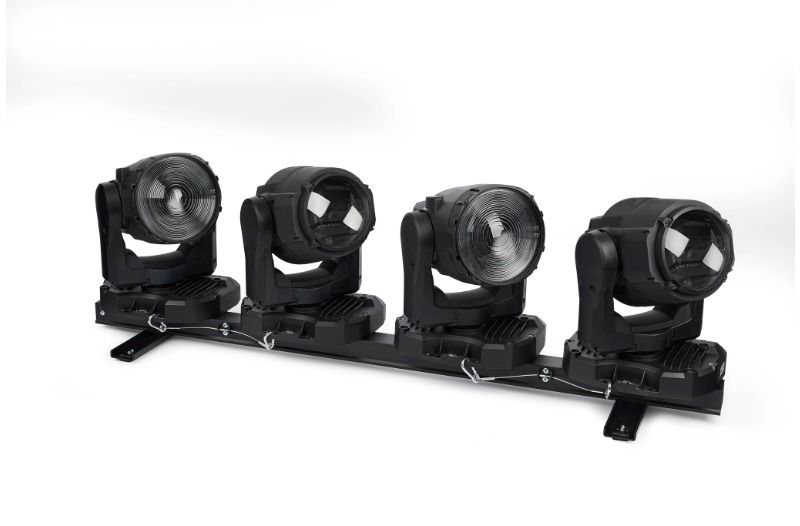

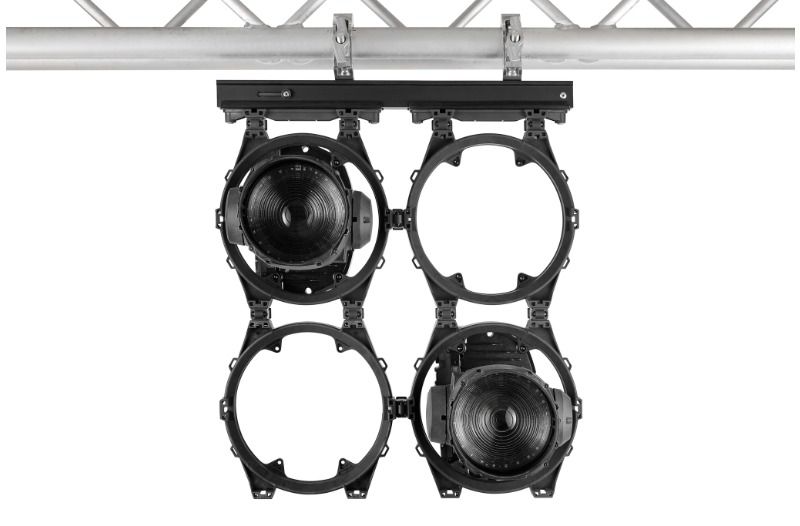

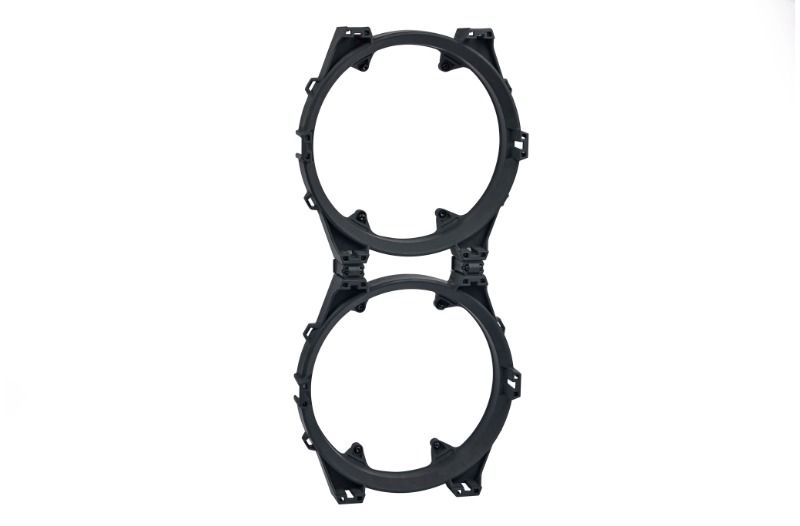

Daha fazla çok yönlülük için MAC One, orijinal olarak Martin'in VDO Atomic ürünleri için oluşturulan VDO Grid Mount System ile de kullanılabilir. Martin fourbar ve matris aksesuarları da tasarım potansiyelini daha da genişletmek ve büyük miktarlarda konuşlandırmayı kolaylaştırmak için kullanılabilir. MAC One, her türlü aydınlatma kurulumuna kusursuz entegrasyon için DMX, Art-Net, sACN ve Martin P3 kontrol sistemleriyle çalıştırılabilir.

İster aydınlatma tasarımcısı, kiralama şirketi veya etkinlik organizatörü olun, MAC One birçok armatürle büyük görünümler yaratmanın, dar alanlar için kompakt bir armatür kullanmanın veya büyüleyici göz alıcı efektlerle sahneyi büyülemenin yanıtıdır. MAC One ile beklentileri aşın, yaratıcı ifadeyi güçlendirin ve sahnede devrim yaratın.

VDO Izgara Montaj Sistemi hakkında daha fazla bilgi edinmek için buraya tıklayın.

Özellikler

RGBW'den daha yüksek ışık kalitesi (CRI, TM-30, TLCI) sunan özel şirket içi geliştirilmiş 120 W RGBL (Kırmızı, Yeşil, Mavi, Limon) LED
Lümen Çıkışı: 2500 lm
Yoğunluk: Dar ışında 375.000 cd

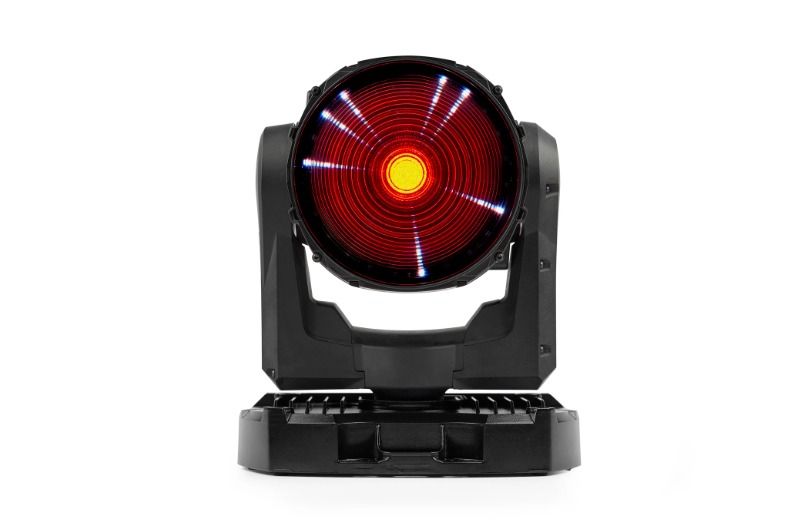

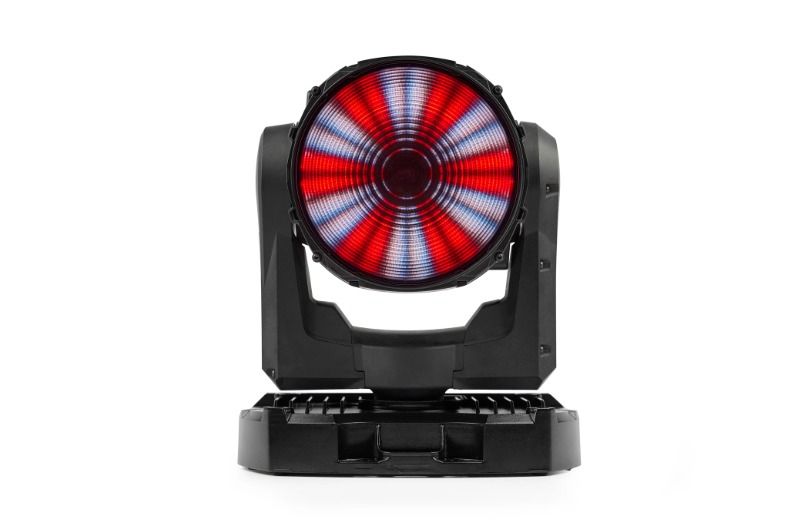

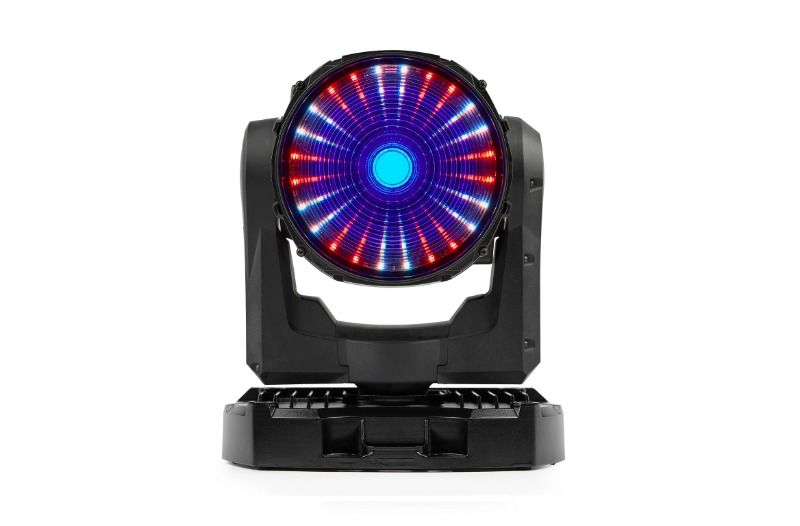

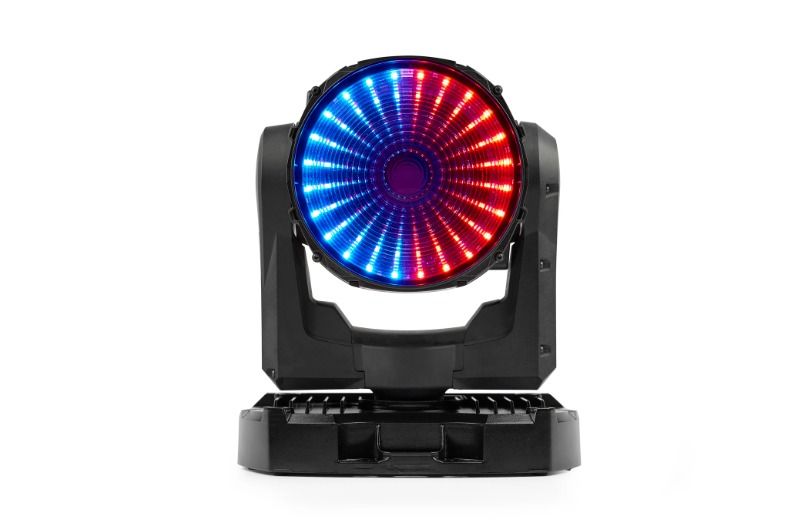

Arka Işık Efekti: 24 x 0,25 W RGB LED
Martin'in Tam Gamut Renk Kalibrasyonu kullanılarak tamamen kalibre edilmiştir
Titreşimsiz çalışma
Zorlu uygulamalar için LED Sürücü frekansı ayarlanabilir

Physical

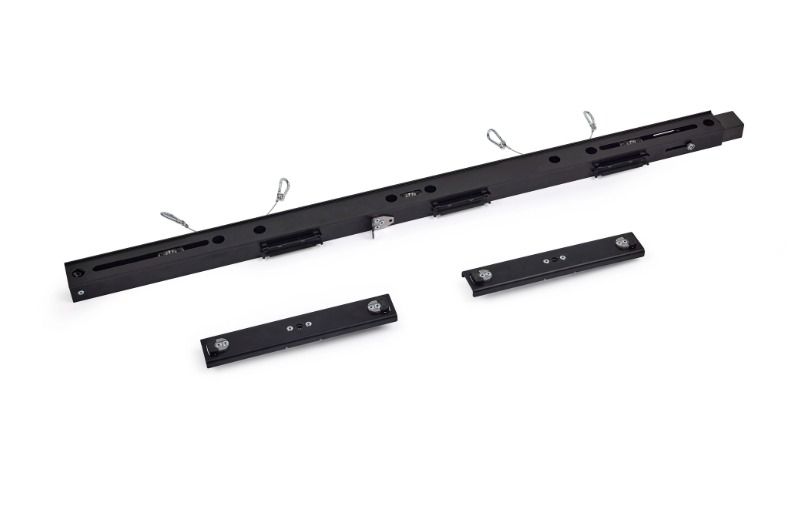

MAC One FixtureWidth (across yoke)	226 mm (8.90 in.)Width (base): 254 mm (10.00 in.)Height (head forward): 297 mm (11.69 in.)Height (maximum): 349 mm (13.74 in.)Depth (head): 220 mm (8.66 in.)Depth (base): 177 mm (6.97 in.)Minimum center-to-center distance in side-by-side installation: 300 mm (11.81 in.)Weight: 4.40 kg (9.70 lbs.)MAC One Family FourbarLength: 1168 mm (45.98 in.)Length (installed end-to-end): 1200 mm (47.24 in.)Width: 88 mm (3.46 in.)Height (without feet): 42 mm (1.65 in.)Height (with feet): 60 mm (2.36 in.)Weight: 3.20 kg (7.05 lbs.)MAC One Family VDO Grid Mount RingWidth: 282 mm (11.10 in.)Width (installed side-to-side): 300 mm (11.81 in.)Height: 282 mm (11.10 in.)Height (installed side-to-side): 300 mm (11.81 in.)Depth: 80 mm (3.15 in.)Weight: 0.75 kg (1.65 lbs.)MAC One Family Dual VDO HeaderLength: 568 mm (22.36 in.)Length (installed end-to-end): 600 mm (23.62 in.)Width: 85 mm (3.35 in.)Height: 58 mm (2.28 in.)Weight: 2.20 kg (4.85 lbs.)MAC One Family Single VDO AdapterLength: 50 mm (1.97 in.)Width: 57 mm (2.24 in.)Height: 58 mm (2.28 in.)Weight: 0.20 kg (0.44 lbs.)
Dynamic Effects
Beam Dimmer/Shutter	0 - 100% continuous dimming, regular and random strobe, instant open and blackoutBeam Dimming options: Choice of four dimming curvesBeam Color Mixing: RGB, independently variable 0 - 100%Beam Color Temperature Control: Variable 2,000 - 12,850 KBeam Tint Control: Variable green-magenta shift ?uv -0.05 - +0.05Beam Virtual Color wheel: 48 color presets, continuous rotation & random colorZoom: Motorized with 1:5 zoom ratio, including zoom pulse effectPan: Motorized 540°Tilt: Motorized 240°Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlBacklightDimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackoutBacklight Dimming options: Choice of four dimming curvesBacklightColor Mixing: RGB, independently variable 0 - 100%BacklightColor Temperature Control: Variable 2,000 - 12,850 KBacklightTint Control: Variable green-magenta shift ?uv -0.05 - +0.05BacklightVirtual Color wheel: 48 color presets, continuous rotation & random colorBacklightPixelMapping: Individual RGB control of each of the 24 Backlight pixelsBacklightP3 Mix: Videomapping of fixture with variable crossfade between DMX control and video controlPre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combinedLED Frequency control: Variable LED PWM control
Control and Programming
Control Protocols	DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3Protocol Detection: AutomaticDMX Modes: Compact, Basic, Ludicrous & Compact DirectDMX Channels: 20, 36, 108 & 20Multi-Universe Overflow: Yes, in all DMX Modes16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Zoom, Pan and TiltSetting and Addressing: Display Menu, RDM, RDM over Art-Net or Martin P3Local User Interface: Backlit LCD Display with battery-powered operationFixture identification: User-settable ID numberDMX Compliance: USITT DMX512-ARDM Compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 - 2016Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: Galvanic-isolated RS-485DMX/RDM Daisy-Chain Limit: 32 fixturesEthernet Transceiver: 10/100Mbit (with fail-safe bypass)Ethernet Daisy-Chain Limit Recommendation: 50 fixturesFirmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
Optics
Front Lens Diameter	150 mm (5.91 in.)Zoom Range: 1:5Full Zoom Range at Half Peak (Beam Angle): 4° - 19°Full Zoom Range at Tenth Peak (Field Angle): 6° - 27°Beam Light Source: 1 x 120 W RGBL LEDBacklight Light Source: 24 x 0.25 W RGB LEDMax. Total Beam LED Engine Power: 120 WMax. Total Backlight LED Engine Power: 6 WMinimum LED lifetime: > 50.000 hours (to > 70% luminous output)* *Figure obtained under manufacturer's test conditions
Photometric Data
Light Engine Luminous Output	5,700 lumensFixture Luminous Output Wide: 2,500 lumensFixture Luminous Output Narrow: 1,900 lumensPeak Luminous Intensity Narrow: 375,000 cdCCT: Variable 2,000 K - 12,850 K (+/- 200 K)CRI (Color Rendering Index) (default): >= 77CRI (Color Rendering Index) (optimized): >= 86CQS (Color Quality Scale) (default): >= 86CQS (Color Quality Scale) (optimized): >= 89TM-30 Rf (IES TM-30-15 Fidelity Index) (default): >= 80TM-30 Rf (IES TM-30-15 Fidelity Index) (optimized): >= 84TM-30 Rg (IES TM-30-15 Gamut Index) (default): >= 114TM-30 Rg (IES TM-30-15 Gamut Index) (optimized): >= 105TLCI (Television Lighting Consistency Index) (default): >= 68TLCI (Television Lighting Consistency Index) (optimized): >= 87Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMXBacklight LED Refresh Rate: 1,200 HzBinning: Tight color and flux binningCalibration: Full Gamut Color Calibration of Beam and BacklightColor Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient* All Photometric Data measured at 6500 K white
Construction
Housing	High-impact flame-retardant thermoplastic
Color	Black
Protection rating	IP20
Installation

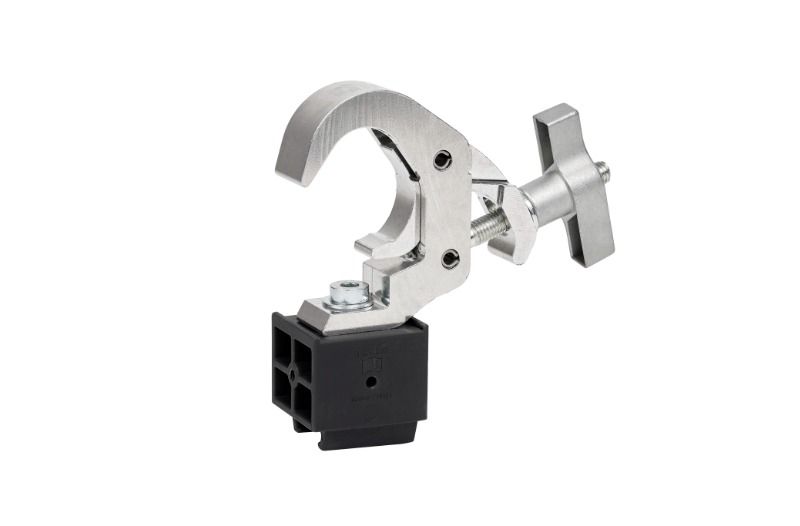

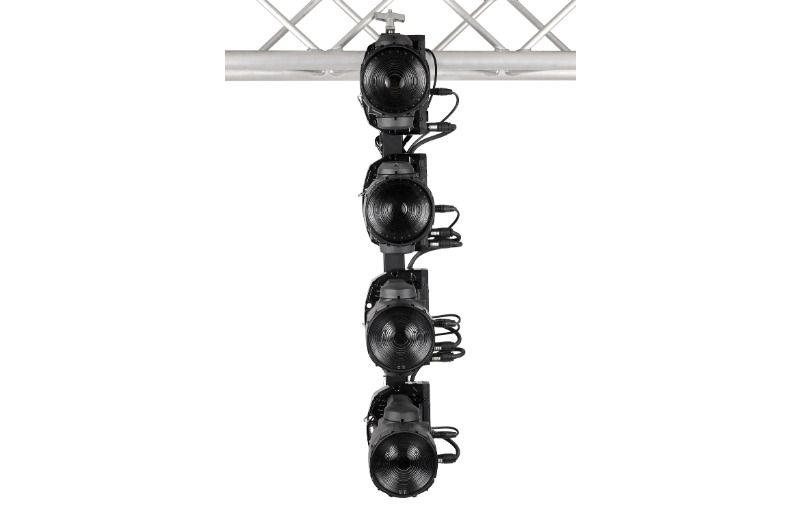

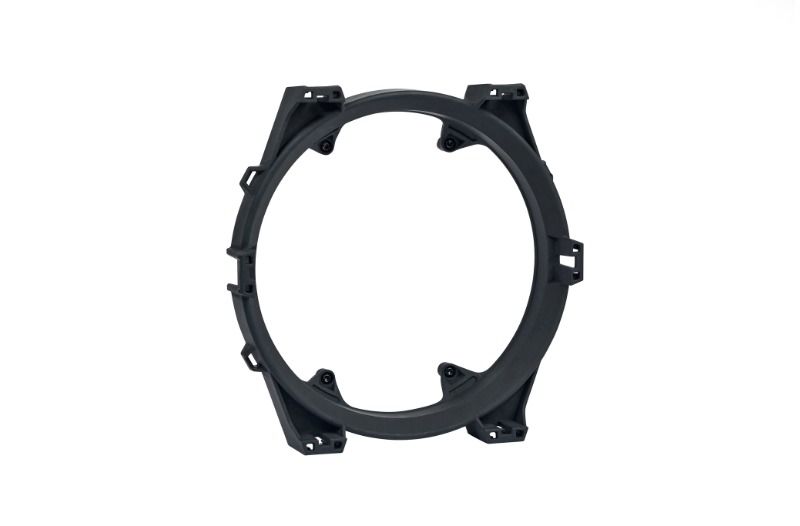

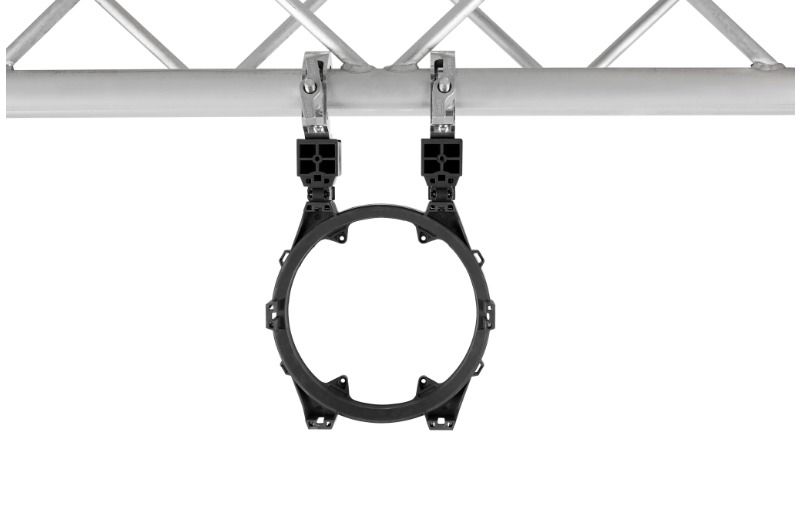

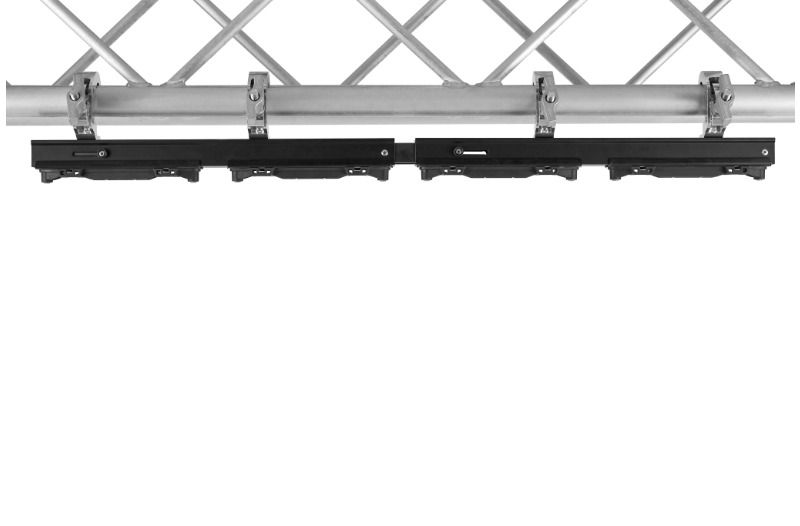

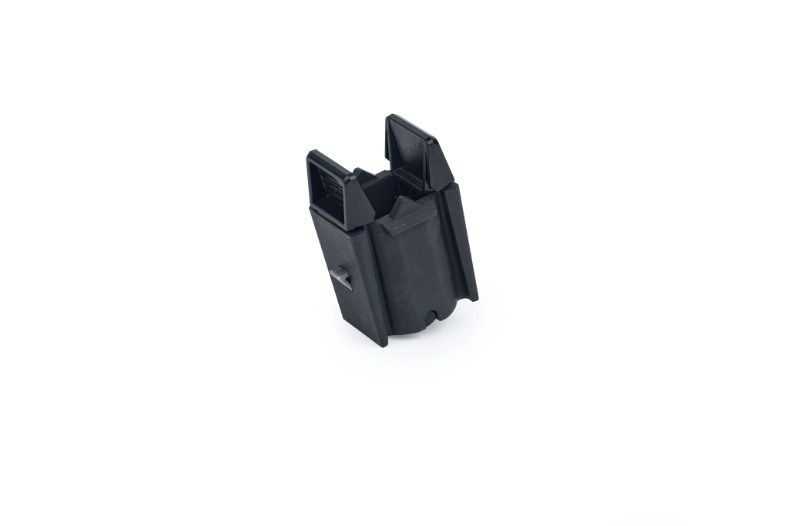

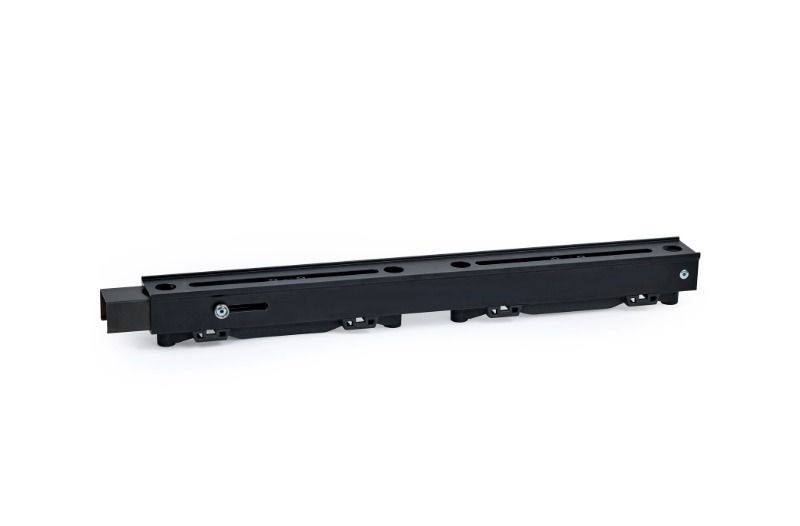

Mounting options	clamps on fixture, omega on fixture, fourbar or VDO grid mount ringMounting points on Fixture: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holesMounting points on Fourbar: 1 fixed and 2 repositionable M12 threaded holesMounting points on VDO Grid Mount Ring: 6 receivers for VDO Couplers (compatible with VDO Atomic Bold/Dot)Mounting points on Dual VDO Header: 2 repositionable M12 threaded holes and 4 receivers for VDO Couplers (compatible with VDO Grid Mount Ring and VDO Atomic Bold/Dot)Mounting points on Single VDO Adapter: 1 fixed M12 threaded hole, 4 fixed M6 threaded holes and 1 receiver for VDO Coupler (compatible with VDO Grid Mount Ring and VDO Atomic Bold/Dot)Maximum vertical column height in VDO Grid Mount Rings: 12 fixturesLocation: Indoor or outdoor protected from elementsOrientation: AnyMinimum distance to combustible materials: 0.20 m (7.87 in.)Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

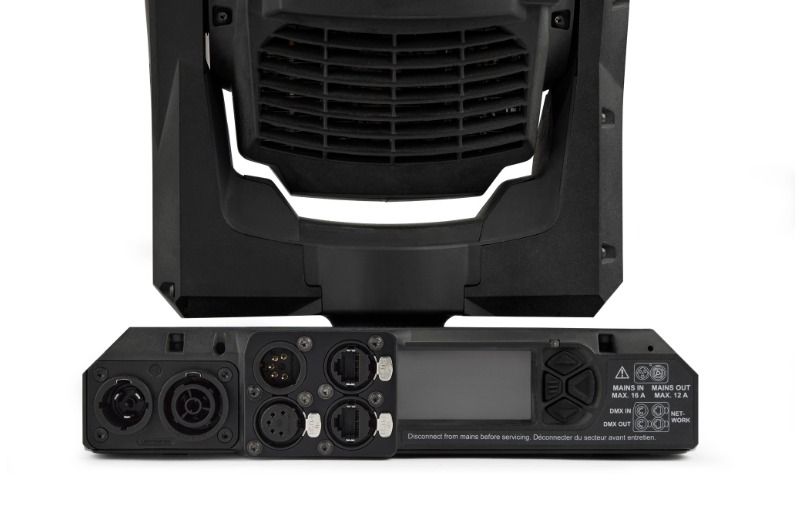

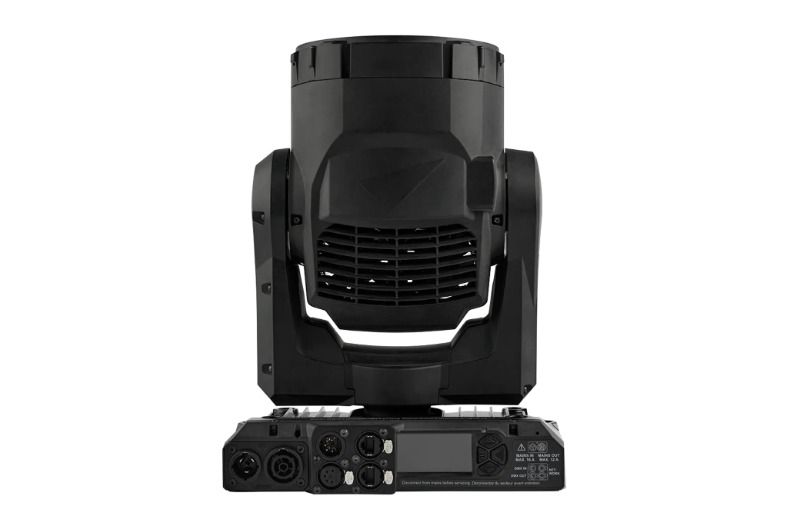

Connections
AC mains power in/thru	Neutrik powerCON TRUE1 TOP
DMX and RDM data in/thru	Neutrik 5-pin locking XLR
Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass	Neutrik etherCON
Electrical
AC power	100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 ATypical earth-leakage current: 0.50 mAPower Factor: 0.99 @ 100V , 0.98 @ 120V , 0.94 @ 208V , 0.92 @ 230V , 0.88 @ 240VMax current draw: 2.0 A @ 100V / 120V, 0.9 A @ 208V / 230V / 240VTypical current draw: 1.6 A @ 100 V , 1.4 A @ 120 V , 0.9 A @ 208 V , 0.8 A @ 230 V , 0.8 A @ 240 V * Power ConsumptionMaximum: 180 WTypical: 160 W Idle: 24 W Hibernation: 9 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling	Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.)	40° C (104° F)
Minimum ambient temperature (Ta min.)	5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient	55° C (131° F)
Total heat dissipation (calculated, +/- 10%)	546 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output)	26.3 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low)	23.0 dB(A)
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
FSC	Certified cardboard inner and outer packaging
Efficacy (max output)	21.4 lm/W
LWR*	568 lm/kg (258 lm/lbs.)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE	IEC 60598-2-17 (IEC 60598-1)
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
United Kingdom	UKCA
Thailand	TIS 1955-2551
Korea	KS C 9832, KS C 9835
Included Items
Single omega bracket with 1/4 turn fasteners for rigging clamp attachmentSoftLensMulti-Language Safety and Installation Manual
Related Items
MAC One Beam in dual SiP	P/N MAR-90250505HUMAC One Beam in Cardboard: P/N MAR-90250500HUMAC One Beam white in Cardboard: P/N MAR-90250510HUVDO Atomic Bold in cardboard: P/N MAR-90357703VDO Atomic Dot CLD in cardboard: P/N 90357701VDO Atomic Dot WRM in cardboard: P/N 90357702Martin Companion Cable (for firmware update over DMX): P/N 91616091Martin Companion Software (for firmware update over DMX/Ethernet): Free download from www.martin.com
Accessories

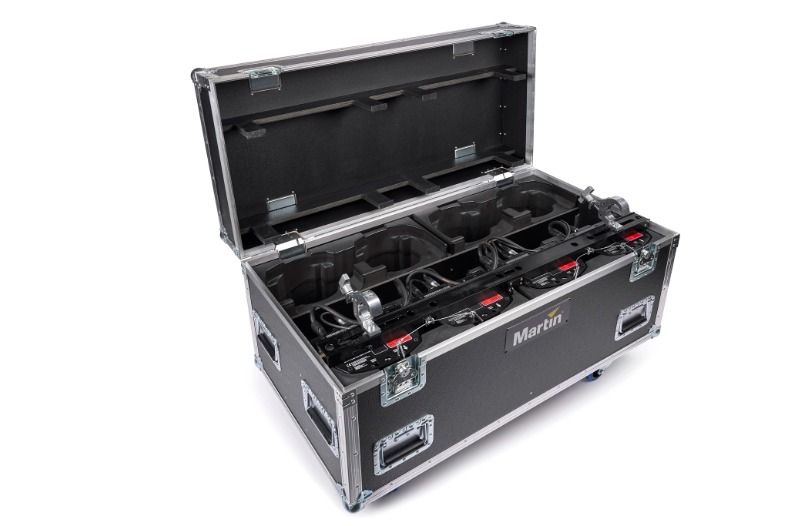

Transport and Storage Flightcase for 8 x MAC One (fits MAC One Beam and MAC One)	P/N MAR-91515058Additional dual SiP Foam Flightcase Insert for MAC One Beam and MAC One: P/N MAR-91611865HU Consumables CR123A 3-volt lithium battery: P/N 05801011 Spare Parts Additional MAC One SoftLens: P/N 5137039-00 Power Input Cables Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173 Power Linking Cables Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172 Power Connectors Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HUCable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU PDE Adapter Cables (for use in matrix with VDO Atomic Bold/Dot)BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001 Installation Hardware MAC One Family Fourbar: P/N MAR-91616127HUMAC One Family VDO Grid Mount Ring: P/N MAR-91616128HUSet of 10 VDO Couplers: P/N MAR-91616129HUDual VDO Header: P/N MAR-91616130HUSet of 10 Single VDO Adapters: P/N MAR-91616135G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Half-coupler Clamp: P/N 91602005Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Verified Third-Party Accessories
Beam ControlMAC One Concentric Ring	P/N City Theatrical 2810MAC One Hexcel Louver: P/NCity Theatrical 2811MAC One Top Hat: P/NCity Theatrical 2812
Ordering Information
MAC One in dual SiP (in cardboard box with dual SiP foam flight case insert)	P/N MAR-90250205HU (to be ordered in multiples of 2)
MAC One in Cardboard (in cardboard box with cardboard inlay)	P/N MAR-90250200HU

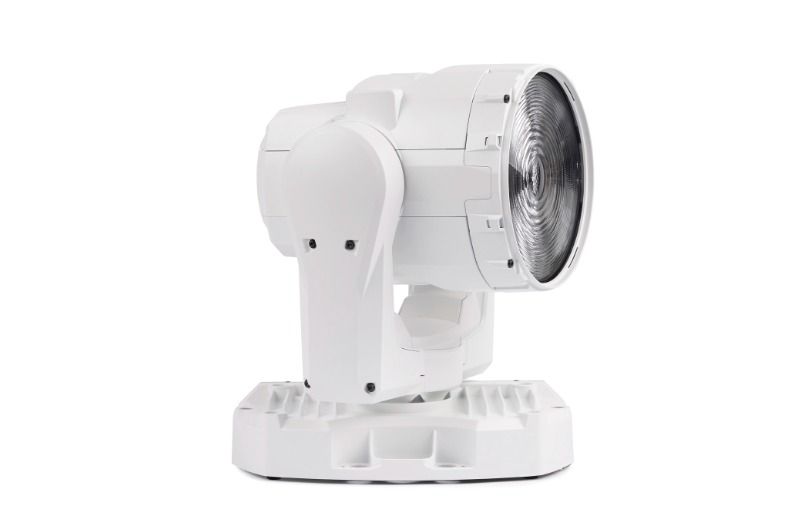

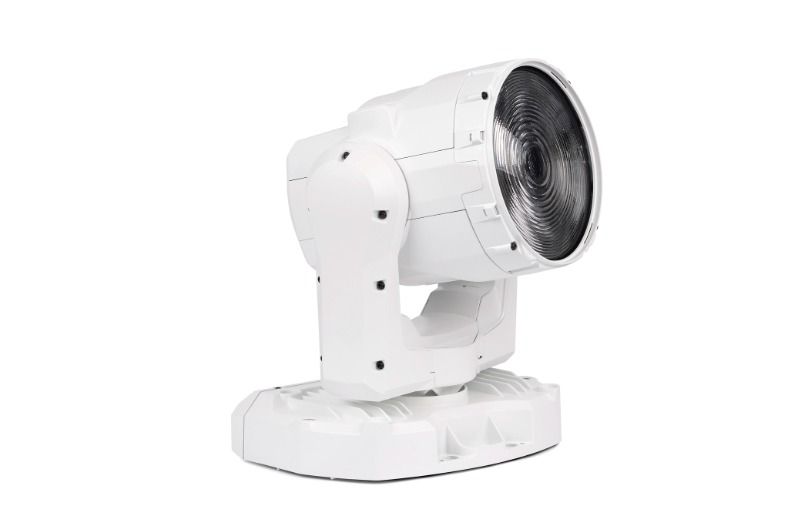

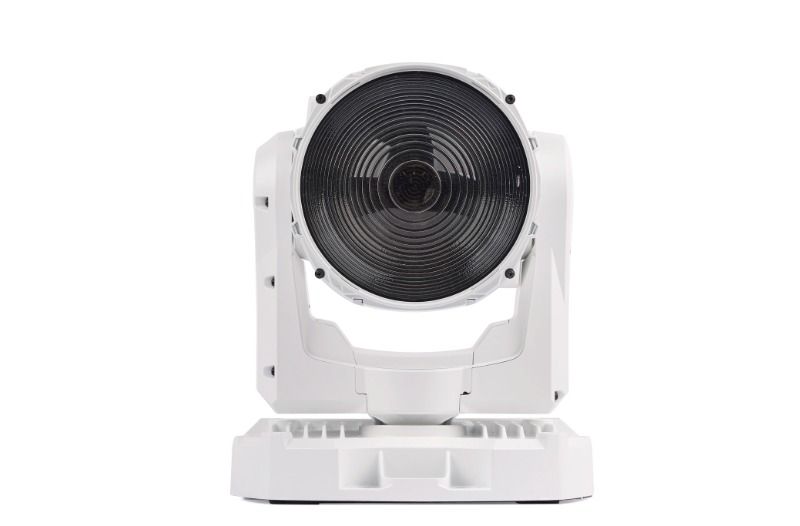

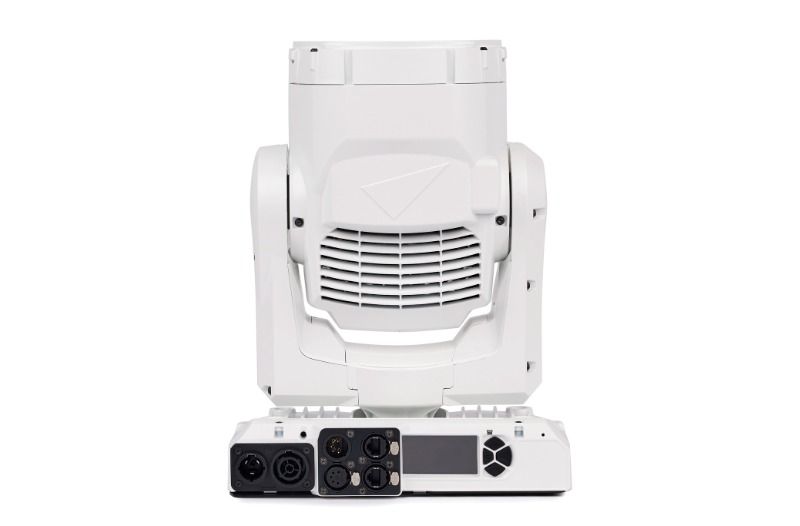

MAC One white in Cardboard (in cardboard box with cardboard inlay)	P/N MAR-90250210HU
