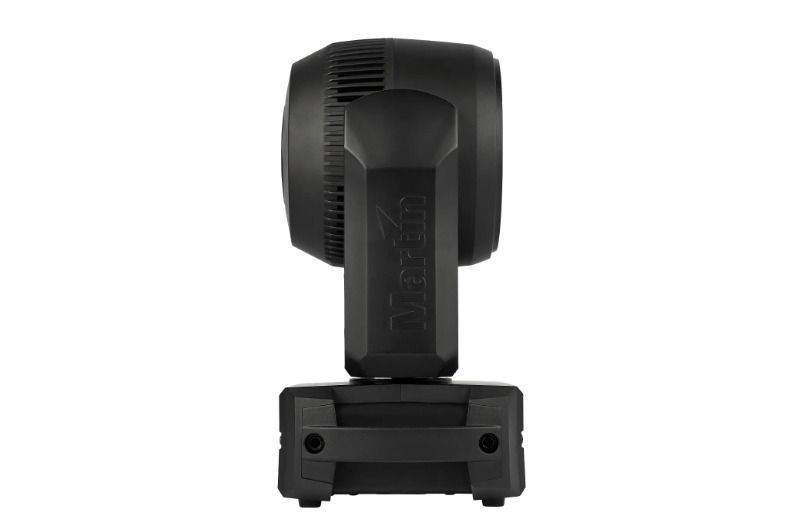

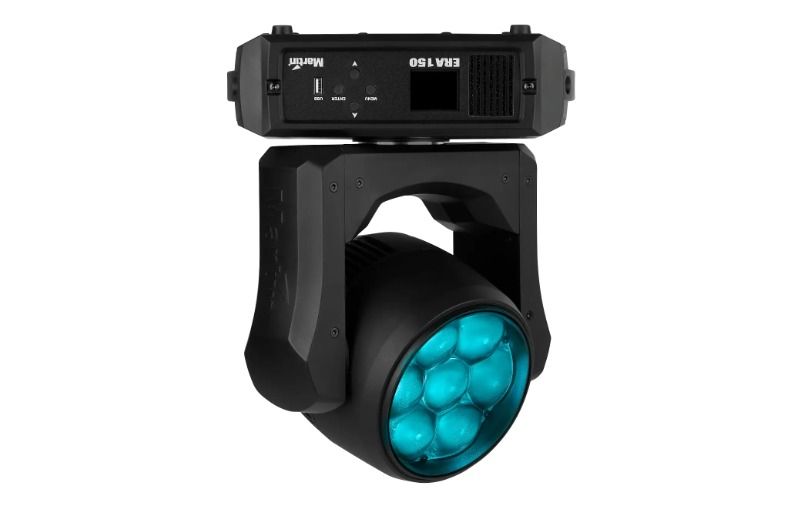

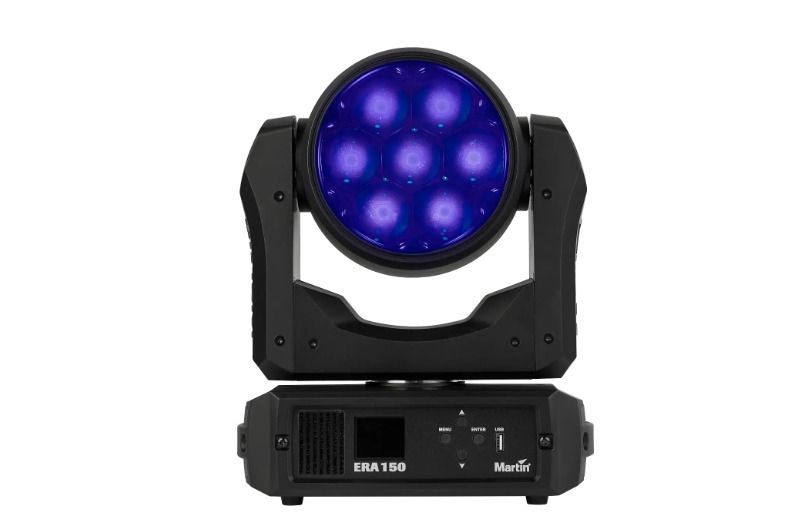

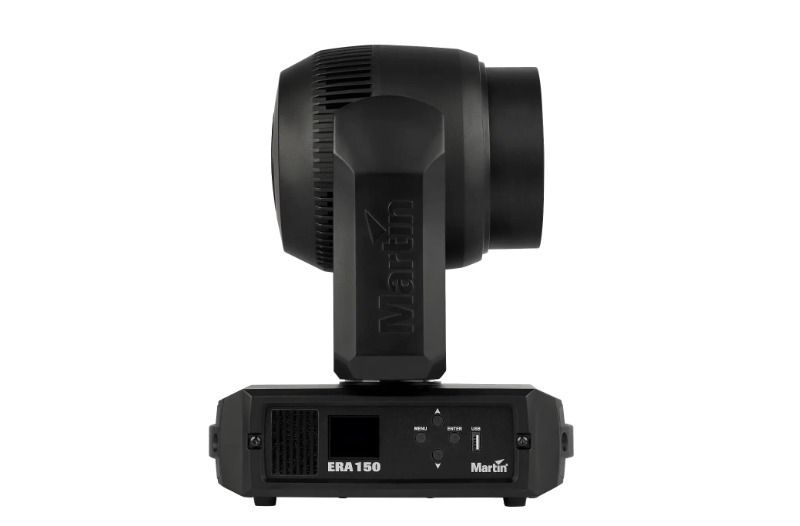

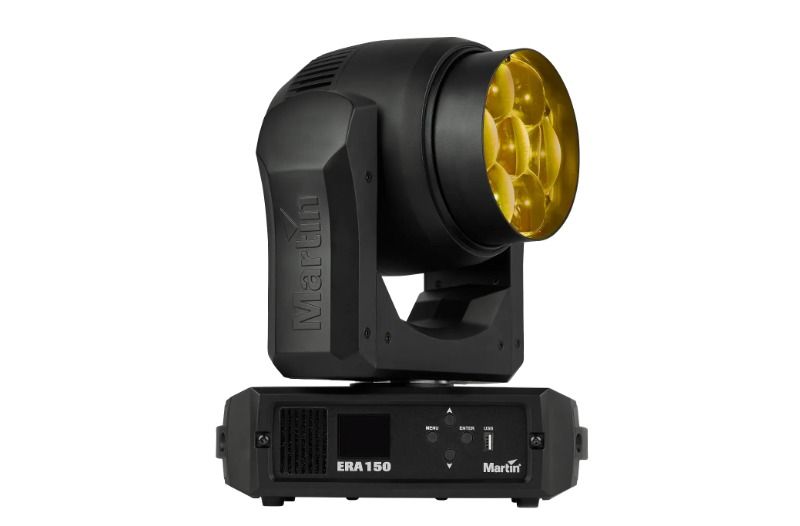

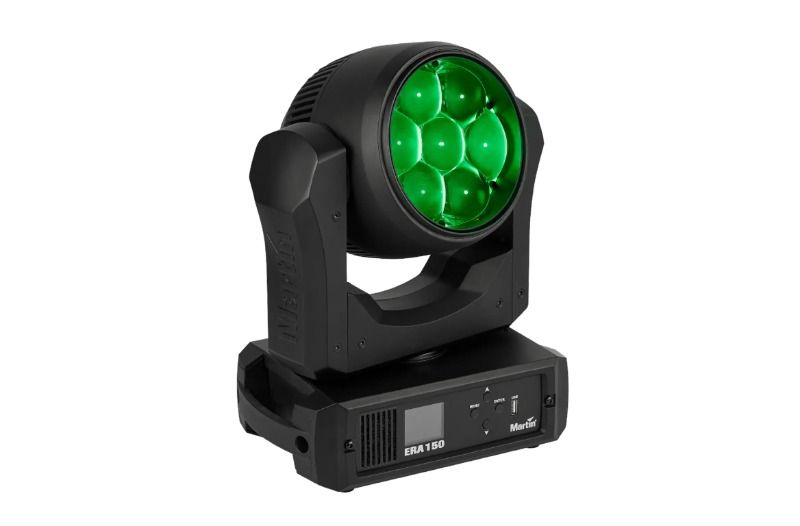

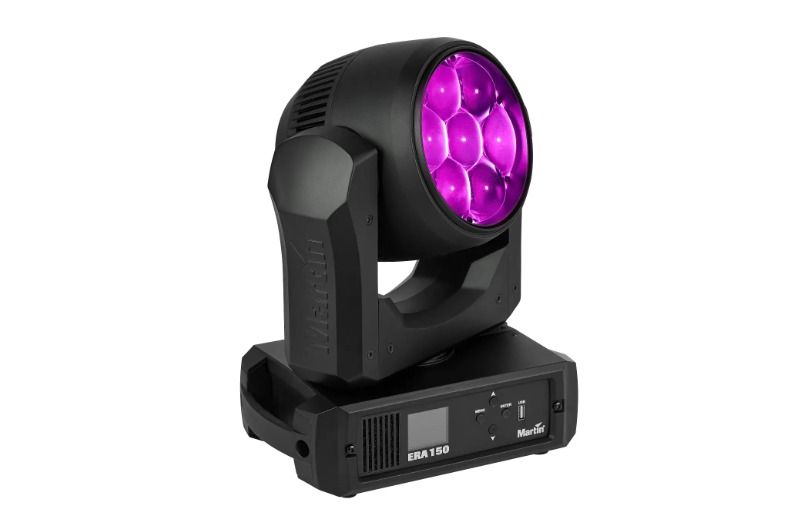

ERA 150 Wash

  • Marka : MARTIN
  • Ürün Kodu : ERA 150 WASH

ERA 150 Yıkama
Yakınlaştırmalı hareketli kafalı LED yıkama armatürü

Martin ERA 150 Wash hareketli kafalı LED yıkama armatürü, doğru renk üretimi ve renk sıcaklığı kontrolü için sınıfında lider lümen çıkışı, yüksek yoğunluklu dar yakınlaştırma ve tam gamlı renk kalibrasyonu sağlayarak, onu kiralama, kurulum ve tur için inanılmaz derecede çok yönlü ancak uygun fiyatlı bir iş atı aydınlatma çözümü haline getiriyor.

ERA 150 Wash, daha geniş yakınlaştırma aralığı, daha yüksek çıktı ve geniş, eşit yıkama alanı üreten yeni tasarlanmış optik sistem sayesinde performansı daha da ileri taşıyor. Diğer gelişmeler arasında, genişletilmiş renk modu ve RGB renginin istediğiniz beyaz nokta etrafında karıştırılmasına olanak tanıyan bir CTC kanalı da dahil olmak üzere gelişmiş renk kalibrasyon özellikleri yer alıyor.

Bir tiyatro prodüksiyonunu, canlı konseri, sergiyi veya kurumsal etkinliği aydınlatıyor olun, tasarımcıların alet çantasına yeni çok yönlülük getiren bu esnek hareketli kafalı armatürle sahneyi renklerle doldurun ve parlak, odaklanmış ışın efektleri yaratın.

Özellikler

  • Işık motoru: LED 7 x 40W RGBW
  • Tam gamlı renk kalibrasyonu
  • CTC kontrolü: 1.800-12.850 K
  • Yüksek çıkış: 3.900 lm
  • Yüksek yoğunluklu 397.783 cd
  • Yakınlaştırma: 4,2 - 58?
  • Düşük gürültülü soğutma sistemi
  • Yüksek hızlı kaydırma, eğme ve yakınlaştırma
  • Ağırlık 7,3 kg (16,1 lb.)
  • Boyutlar: 276 x 176 x 356 mm (10,9 x 7,0 x 14,1 inç)

Physical
Length 276 mm (10.9 in.)
Width 176 mm (7.0 in.)
Height 356 mm (14.1 in.)
Weight 7.3 kg (16.1 lbs.)
Dynamic Effects
Color mixing RGBW
Color presets 48 color presets, virtual color wheel effects
Zoom Motorized: 4.2 - 58°
Color temperature control Variable 1,800 - 12,850 K
Electronic dimming 0 - 100%, four dimming curve options
Strobe and pulse effects Variable speed and action, random strobe
Electronic shutter effect Instant open and blackout
Pan 540°
Tilt 260°
Control and Programming
Control options DMX, RDM
16-bit fine control Dimming, RGB, zoom, pan and tilt
LED color management modes Raw, extended and calibrated

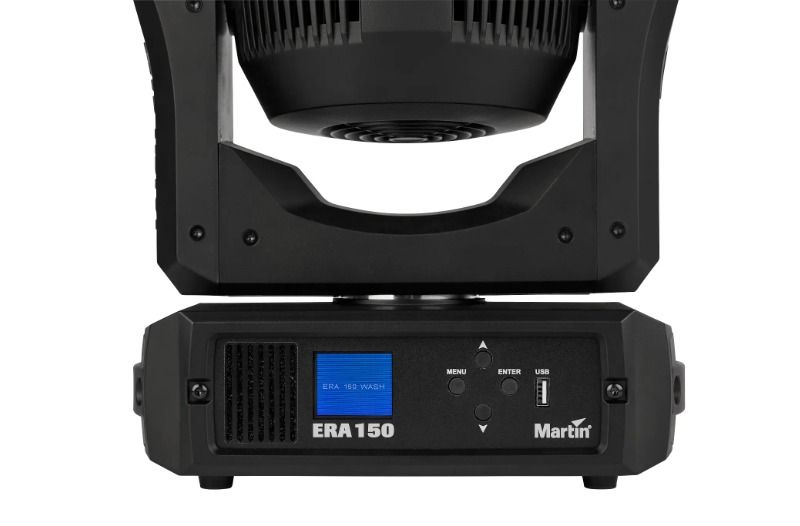

DMX address setting Control panel with LCD display
DMX channels 18
DMX compliance USITT DMX512-A
RDM compliance ANSI/ESTA E1.20
Fixture software update USB memory device or over DMX link
Optics
Light source 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime 50,000 hours (to >70% luminous output)*
Beam angle (half-peak) 4.2° - 38.7°
Field angle (one-tenth peak) 5.1° - 58.6°
Cutoff angle (3%) 5.7° - 69.6°
Binning Tight color and flux binning
Calibration Full Gamut Color Calibration*Figure obtained under manufacturer's test conditions
Photometric Data
Wide beam 3900 lumens
Narrow beam 1774 lumens
Fixture Center Intensity Narrow Beam 397783 cd
Fixture Center Intensity Wide beam 10042 cd
CRI (Color Rendering Index) >70
CQS (Color Quality Scale) 83
TM-30 Rf (IES TM-30-15 Fidelity Index) 77
TM-30 Rg (IES TM-30-15 Gamut Index) 117
TLCI (Television Lighting Consistency Index) 56
CCT 6500 Kelvin
LED refresh rate - Standard Mode 3600 Hz
LED refresh rate - Theatre Mode 19200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing High-impact flame-retardant thermoplastic
Color Black
Protection rating IP 20

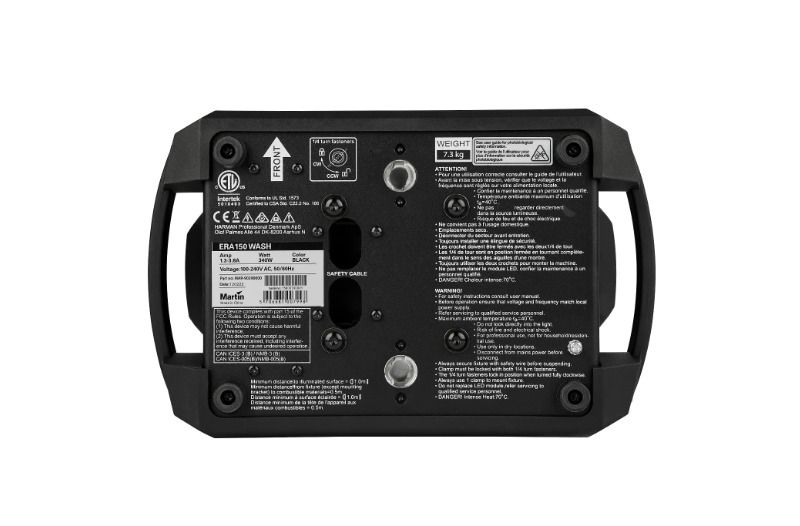

Installation
Mounting points 2 x quarter?turn fastener receptacles, 106.5 mm
Location Indoor use only, must be fastened to surface or structure
Orientation Any
Minimum distance to combustible materials 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces 1 m (3.3 ft.)
Minimum clearance around fan and air vents 0.5 m (1.7 ft.)

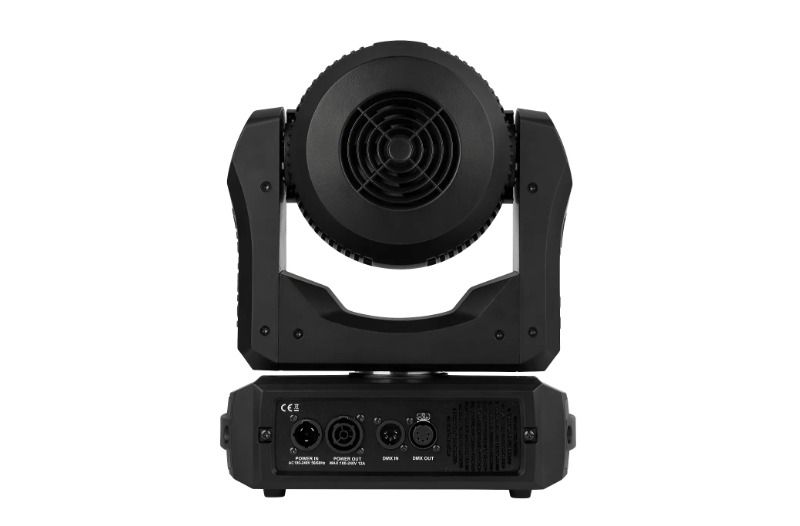

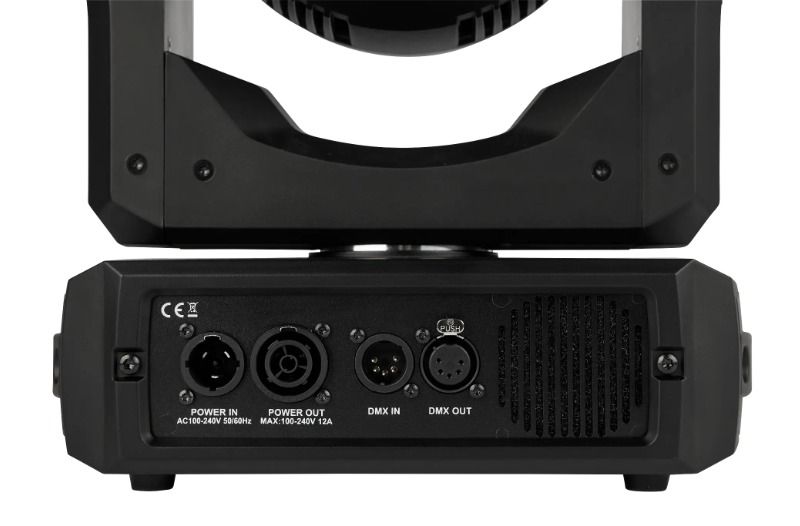

Connections
AC power input/output Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out Neutrik 5-pin locking XLR
Electrical
AC power 100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 240 V, 50 Hz: 8.7 APower Factor: 0.99 @ 100 V / 120 V , 0.97 @ 220 V / 230 V / 240 VTypical current draw: 3.8 A @ 100 V / 120 V , 1.5 A @ 220 V / 230 V / 240 V * Power ConsumptionTypical: 315 W *Hibernation: 5 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling Forced air (temperature regulated, low noise)
Total heat dissipation (calculated) 1195 BTU/hr.*Calculated, +/- 10%, at full intensity, full white
Maximum ambient temperature (Ta max.) 40° C (104° F)
Minimum ambient temperature (Ta min.) -10° C (14° F)
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) 37.0 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) 34.3 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 15.5 lm/W
LWR* 507 lm/kg (230 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015; EN 55032; EN 55035; EN 61000-3-2, EN 61000-3-3, EN 61547
US safety UL 1573
US EMC FCC Part 15 Class B
Canadian safety CSA C22.2 No. 166
Canadian EMC ICES-003 Class B, ICES-005 Class B
Australia/NZ RCM
United Kingdom UKCA
Included Items
Safety and Installation Manual
Martin Omega bracket for rigging clamp attachment P/N 91602001
Related Items
Martin Companion Cable (for firmware update over DMX) P/N 91616091
Martin Companion Software (for firmware update over DMX) Free download from www.martin.com
Accessories
Power Input CablesPower Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 5 m (16.4 ft.) P/N 91610174 Power Linking CablesPower relay cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.) P/N 91611784Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172 Power ConnectorsPower Connector, Cable Mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789HUPower Connector, Cable Mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788HU Installation HardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Half-coupler Clamp: P/N 91602005Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
Ordering Information
ERA 150 Wash in cardboard box P/N MAR-90290000

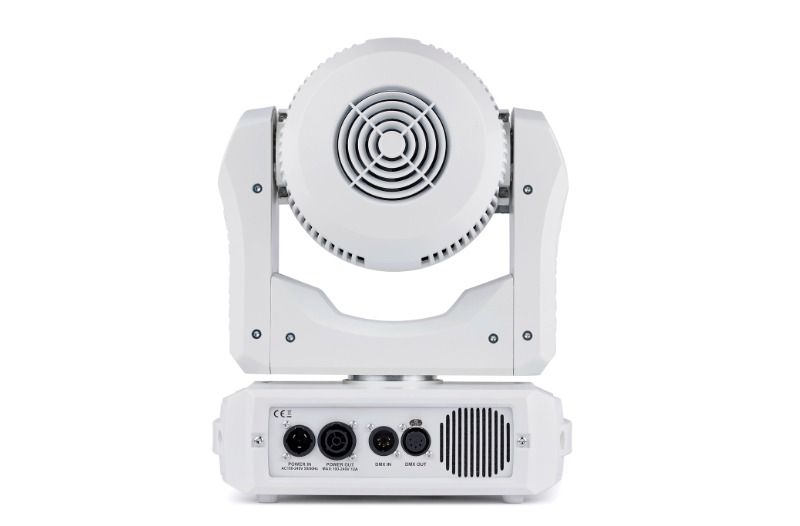

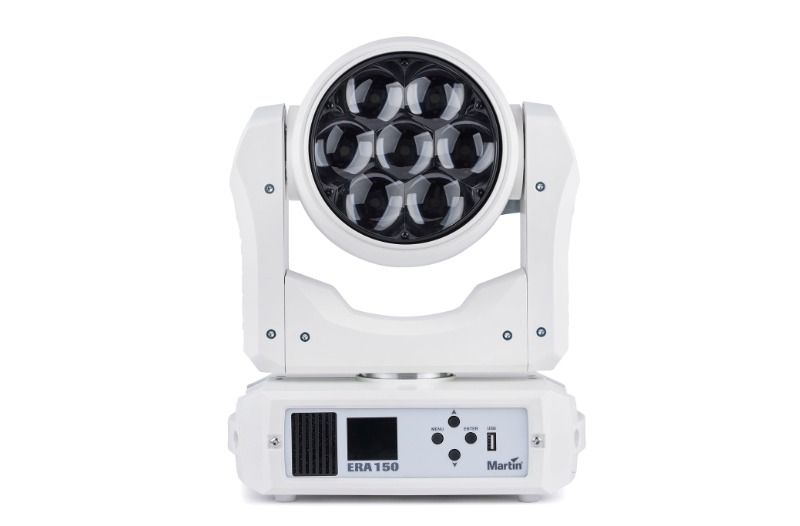

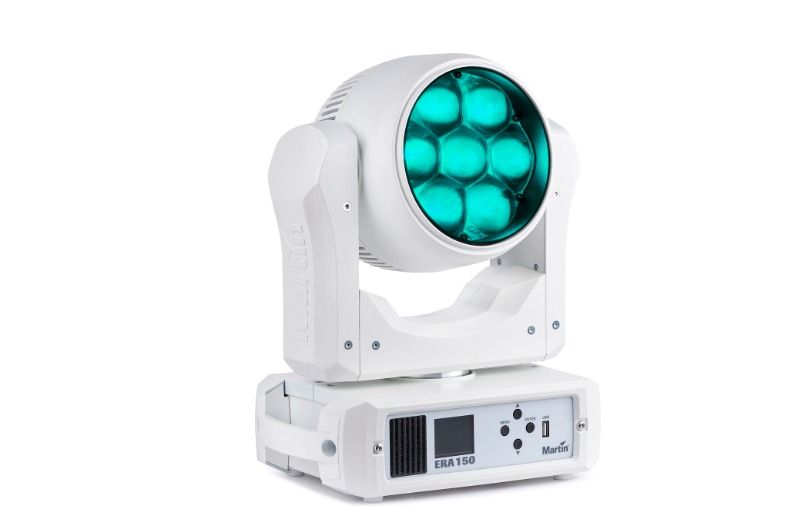

ERA 150 Wash - White in cardboard box P/N MAR-90290005
