| Physical |
| Weight |
32.3 kg (71.3 lbs) |
| Minimum center-to-center distance in side-by-side installation |
660 mm (26.0 in.) |
| Length (head) |
544 mm (21.5 in.) |
| Length (base) |
416 mm (16.4 in.) |
| Width (base) |
290 mm (11.4 in.) |
| Width (across yoke) |
390 mm (15.4 in.) |
| Height (head straight up) |
734 mm (28.9 in.) |
| Height (maximum) |
745 mm (29.4 in.) |
| Dynamic Effects |
| Color mixing |
CMY, independently variable 0-100% |
| Color wheel |
7 color filters plus open |
| Gobo animation |
Animation wheel, indexing, continuous rotation with variable speed and direction |
| Rotating gobo wheel |
7 gobos plus open, wheel rotation, gobo rotation, indexing and shake |
| Static gobo wheel |
8 gobos plus open, wheel indexing, rotation and shake |
| Iris |
0-100% |
| Zoom |
Motorized |
| Color temperature control |
Variable 6500 - 2700 K |
| Framing |
Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position. |
| Prism |
2 rotating/indexing prisms (4-facet circular prism and 6-facet linear) |
| Frost |
Heavy Frost - for wash effects |
| Electronic dimming |
0 - 100%, four dimming curve options |
| Electronic shutter effect |
Strobe effect, pulse effects, instant open and blackout |
| Pan |
540°, coarse & fine control and speed |
| Tilt |
260°, coarse & fine control and speed |
| Focus |
Motorized |
| Control and Programming |
| Control options |
DMX |
| Setting and addressing |

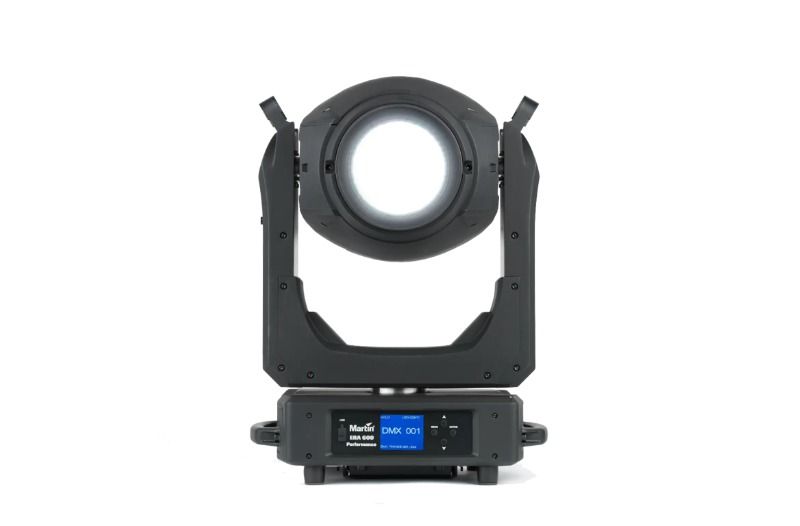

Control panel with backlit LCD display |
| 16-bit control |
Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt |
| DMX channels |
41 |
| DMX compliance |
USITT DMX512/1990 |
| RDM compliance |
ANSI/ESTA E1.20 |
| Transceiver |
Opto-isolated RS-485 |
| Optics |
| Front lens diameter |
120 mm (4.75 in.) |
| Zoom range |
6° - 45° (1:7.5) |
| Light source |
550 W LED engine |
| Minimum LED lifetime |
20000 hours (to >70% luminous output)* |
| Binning |
Tight color and flux binning |
| *Manufacturer´s figure obtained under manufacturer´s test conditions |
| Photometric Data |
| Color Temperature |
2,700 - 6,500 K |
| Light engine luminous output |
37,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 19,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >96 TLCI (Television Lighting Consistency Index): >45 CCT: 6800 K (+/- 250 K) Peak Luminous Intensity: 1,102,000 cd With Optional CRI Boost Filter Fixture luminous output: 13,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >74 TM-30 Rf (IES TM-30-15 Fidelity Index): >75 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >56 CCT: 6500 K (+/- 250 K) Peak Luminous Intensity: 783,000 cd* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient. |
| Light engine luminous output |
37,000 lumens |
| LED refresh rate |
3600 Hz |
| Fixture luminous output |
19,000 lumens |
| CRI (Color Rendering Index) |
>70 |
| CQS (Color Quality Scale) |
>67 |
| TM-30 Rf (IES TM-30-15 Fidelity Index) |
>65 |
| TM-30 Rg (IES TM-30-15 Gamut Index) |
>96 |
| TLCI (Television Lighting Consistency Index) |
>45 |
| CCT |
6800 K (+/- 250 K) |
| Peak Luminous Intensity |
1,102,000 cd |
| Fixture luminous output |
13,000 lumens |
| CRI (Color Rendering Index) |
>79 |
| CQS (Color Quality Scale) |
>74 |
| TM-30 Rf (IES TM-30-15 Fidelity Index) |
>75 |
| TM-30 Rg (IES TM-30-15 Gamut Index) |
>98 |
| TLCI (Television Lighting Consistency Index) |
>56 |
| CCT |
6500 K (+/- 250 K) |
| Peak Luminous Intensity |
783,000 cd |
| Construction |
| Housing |
High-impact flame-retardant thermoplastic |
| Color |
Black |
| Protection rating |
IP 20 |
| Gobos |
| Maximum image diameter |
19.0 mm (0.75 in.) |
| Gobo material |
Borofloat 33 |
| External diameter |
23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.) |
| Maximum gobo thickness |
1.1 mm (0.04 in.) |
| Coating |
Heavy matted aluminum |
| Installation |
| Mounting points |
2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets |
| Location |
Dry location only, must be fastened to surface or structure |
| Orientation |
Any |
| Minimum distance to combustible materials |
0.2 m (8 in.) |
| Minimum distance to illuminated surfaces |
2.0 m (6.6 ft.) |

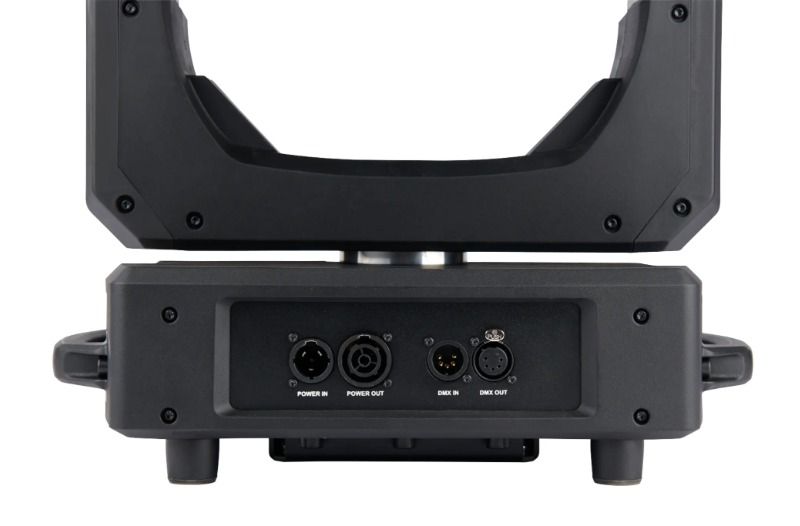

| Connections |
| DMX and RDM data in/out |
5-pin locking XLR |
| AC mains power input. |
Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector |
| AC mains power throughput |
Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector |
| Electrical |
| AC power |
100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 21.8 APower Factor: 0.99 @ 120 V , 0.97 @ 230 VTypical current draw: 6.5 A @ 120 V , 3.2 A @ 230 V * Power ConsumptionMaximum: 856 WTypical: 778 W *Idle: 64 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. |
| Thermal |
| Cooling |
Forced air (temperature regulated, low noise) |
| Maximum ambient temperature (Ta max.) |
40° C |
| Minimum ambient temperature (Ta min.) |
0° C |
| Maximum surface temperature, steady state, at 40° C ambient |
75° C (167° F) |
| Total heat dissipation (calculated, +/- 10%) |
2660 BTU/hr. |
| Acoustic Data |
| Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) |
46.1 dB(A) |
| Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) |
39.1 dB(A) |
| Environmental |
| RoHS |
Compliant |
| REACH |
Compliant |
| WEEE |
Compliant |
| Proposition 65 |
Compliant |
| Efficacy (max output) |
25.4 lm/W |
| LWR* |
588 lm/kg (266 lm/lb) |
| LWR = Lumen-to-Weight Ratio |
| Approvals |
| Global CB Certification/IECEE |
IEC 60598-2-17 (IEC 60598-1) |
| EU safety |
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 |
| EU EMC |
EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547 |
| US safety |
UL 1573 |
| US EMC |
FCC Part 15 Class B |
| Canadian safety |
CSA C22.2 No. 166 |
| Canadian EMC |
ICES-003 Class B, ICES-005 Class B |
| Australia/NZ |
RCM |
| Included Items |
| Two omega brackets with 1/4 turn fasteners for rigging clamp attachment |
2 x P/N 91602001 |
| Related Items |
| Martin Companion Software Suite (including firmware uploader) |
Free download from www.martin.com |
| Martin Companion Cable USB/DMX hardware interface |
P/N 91616091 |
| Accessories |
| Conversion kitsFraming Module (converts ERA 600 Profile to Performance) |
P/N 5125849-00Gobo Wheel 3 Effects Module (converts ERA 600 Performance to Profile): P/N 5131771-00 Optical accessoriesCRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614058 Power input cablesPower Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174 Power relay cables, 16 APower Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172 Power connectorsCable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HUCable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU Installation hardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Half-coupler Clamp: P/N 91602005Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007T-shape omega bracket with 1/4 turn, PN 91602008 |
| Ordering Information |
| Martin ERA 600 Performance in cardboard box |
P/N 9025122049 |
| Martin ERA 600 Performance - White in cardboard box |
P/N 9025122050 |
| Flightcase, two unit, for 2 x ERA 600 Performance / Profile |
P/N 91512205 |
