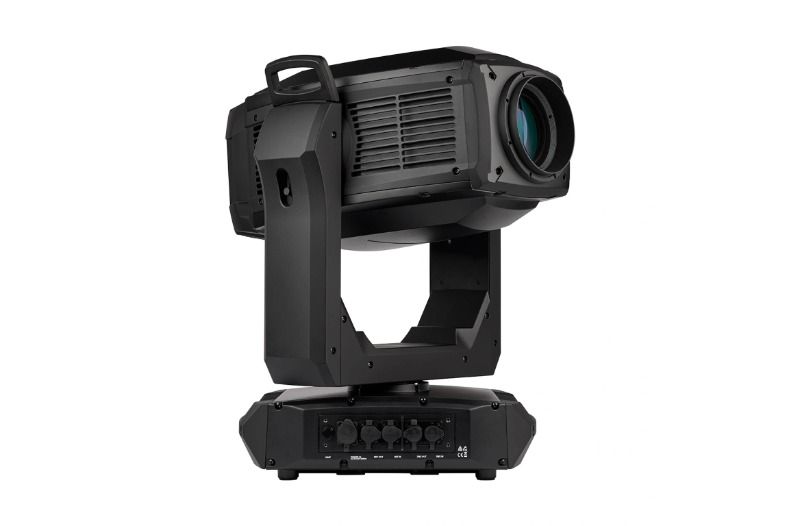

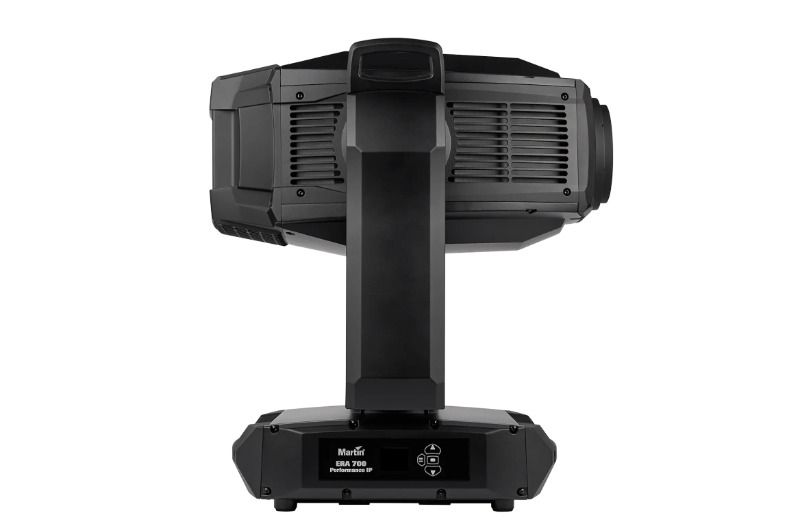

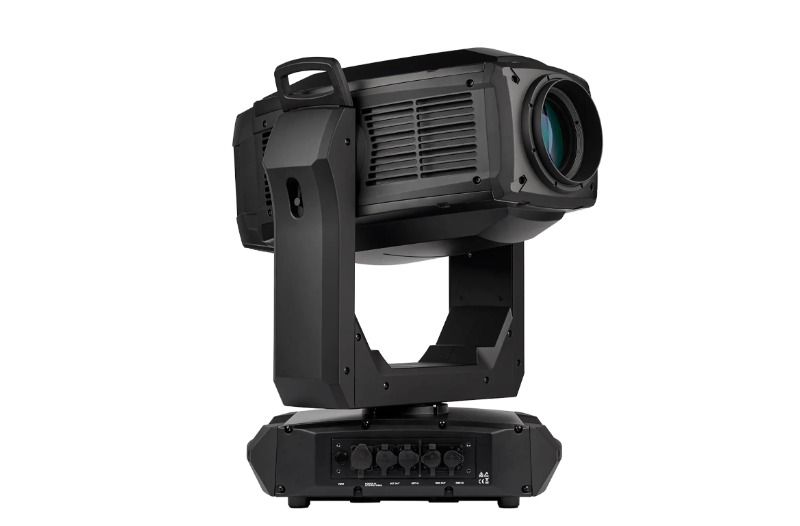

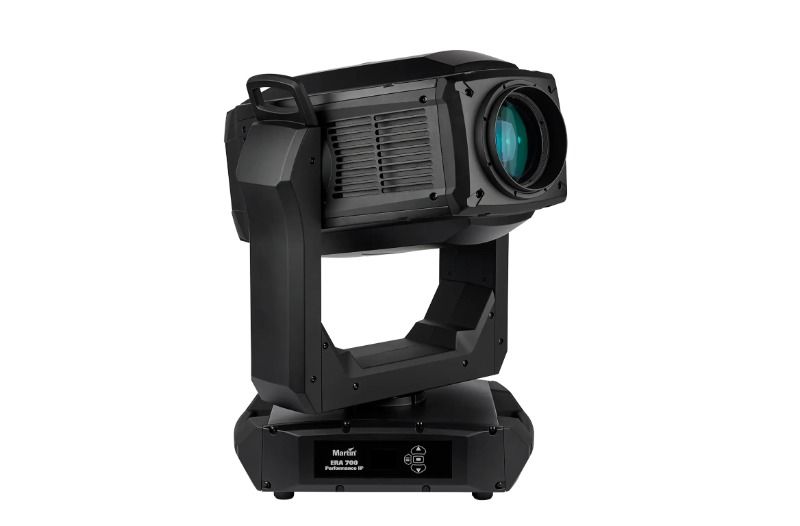

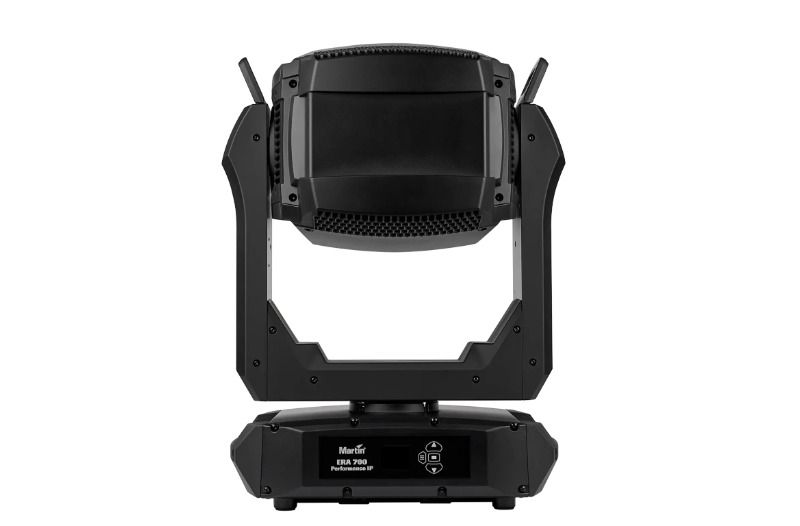

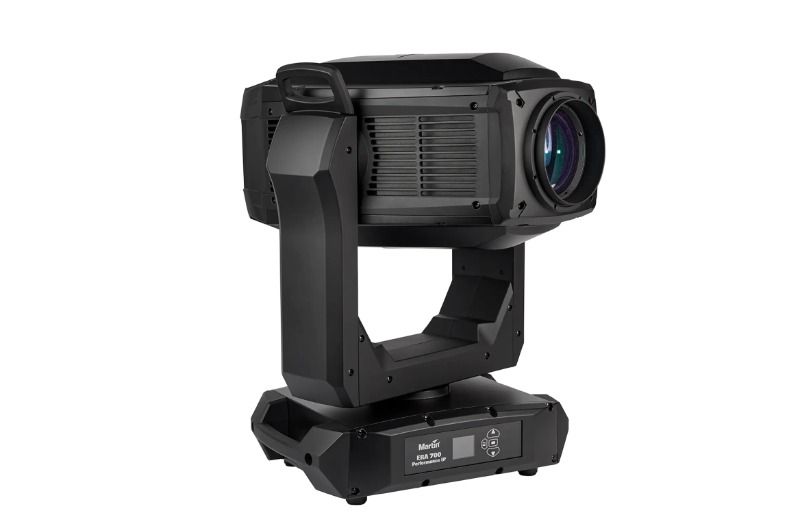

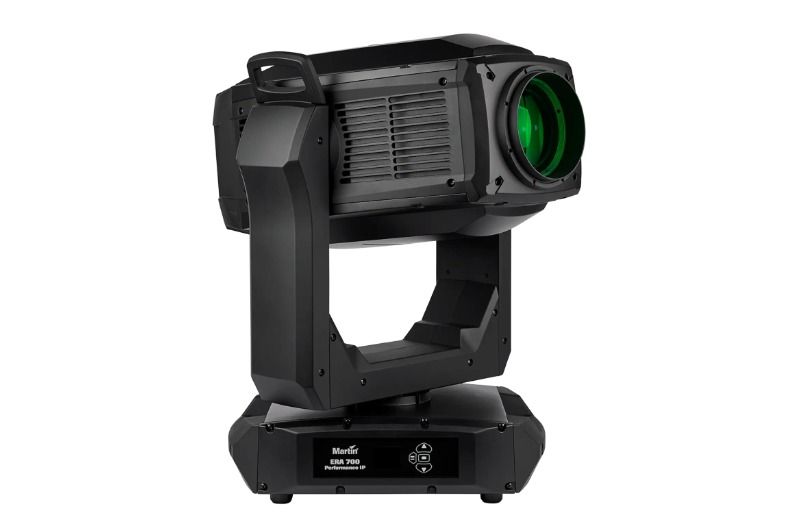

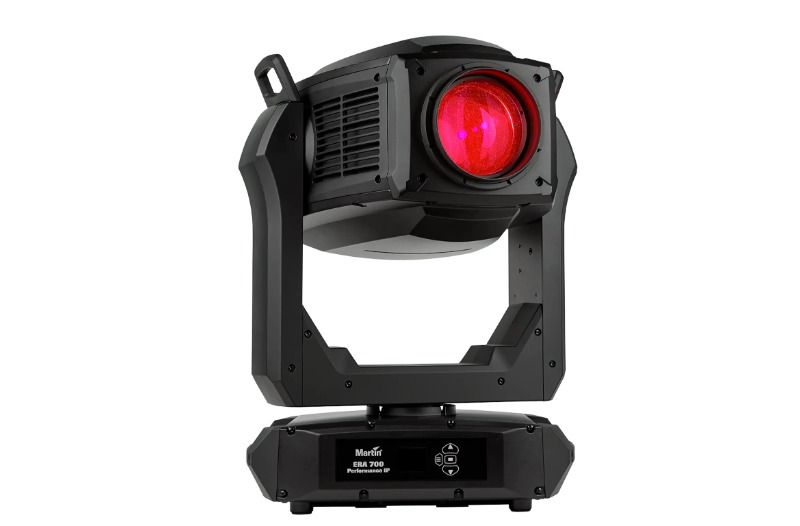

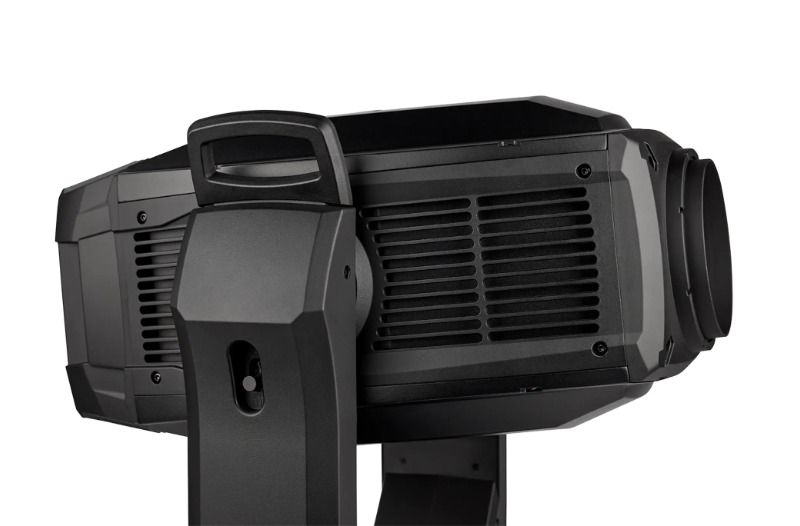

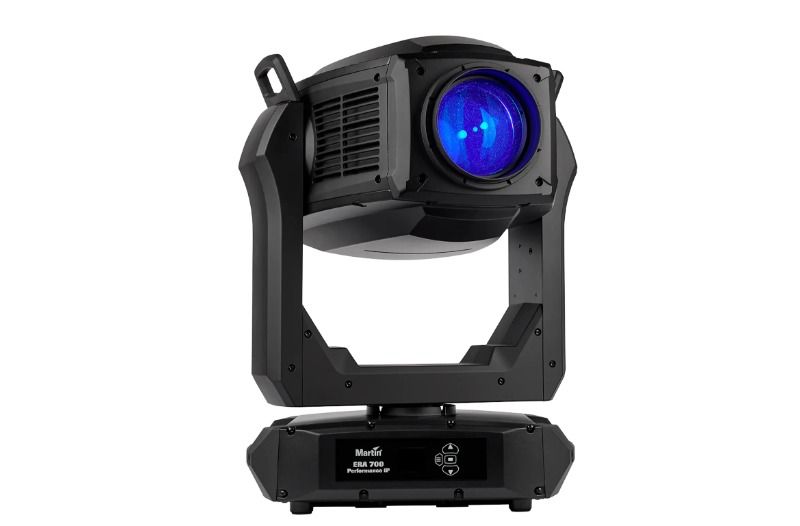

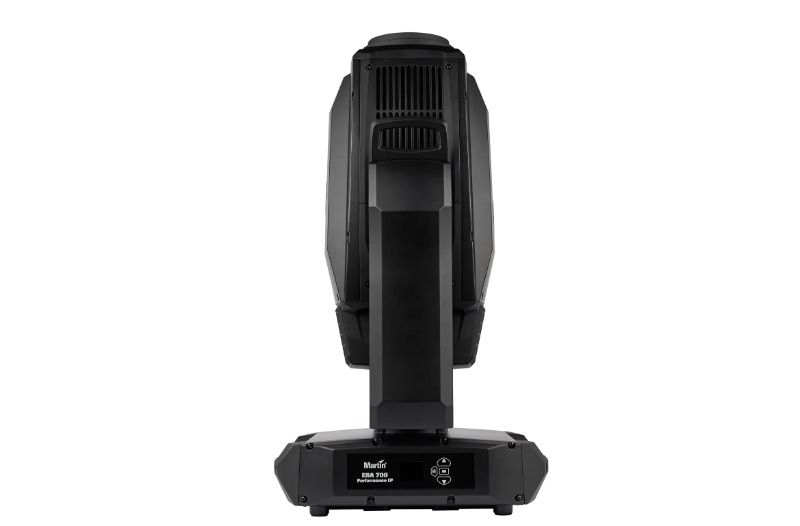

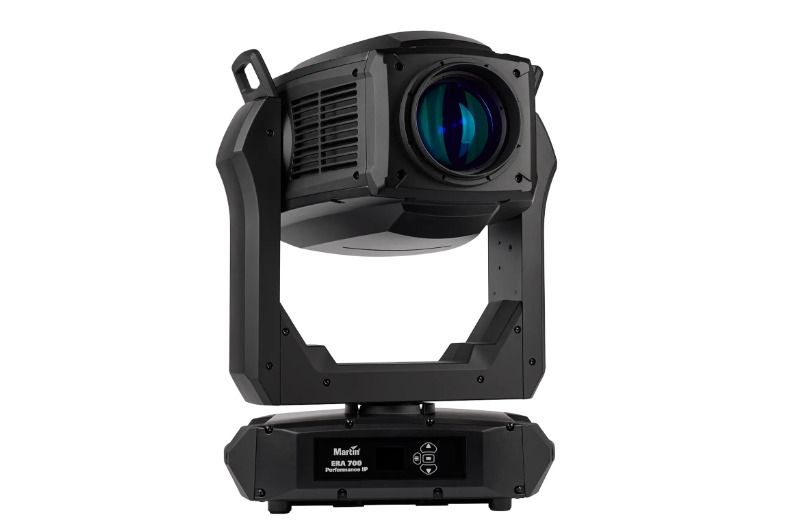

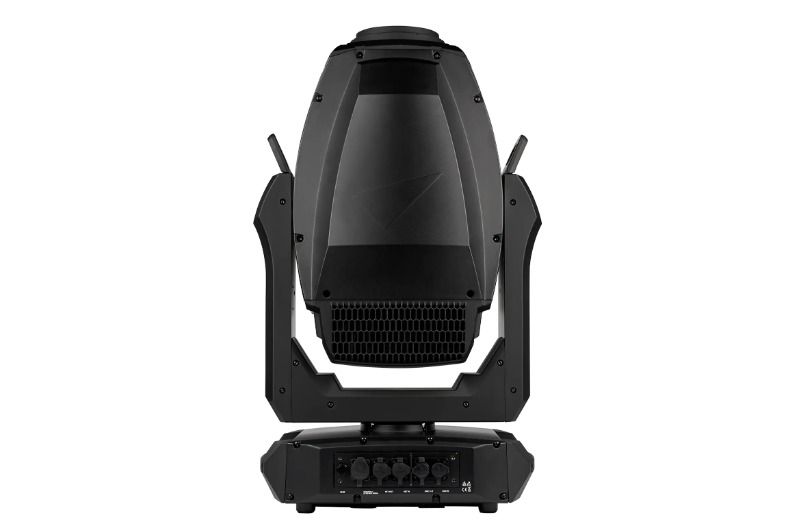

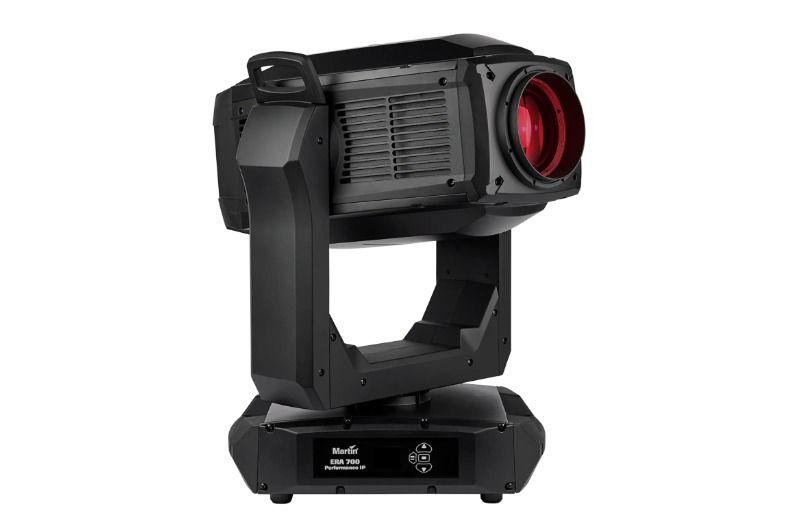

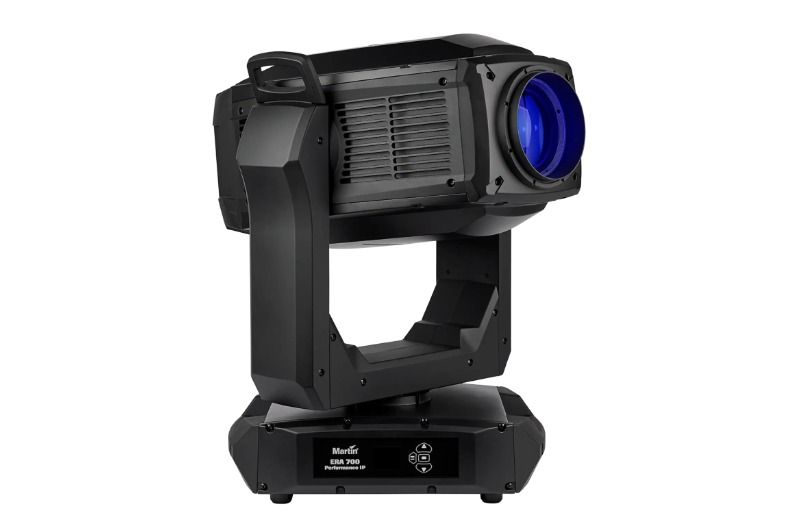

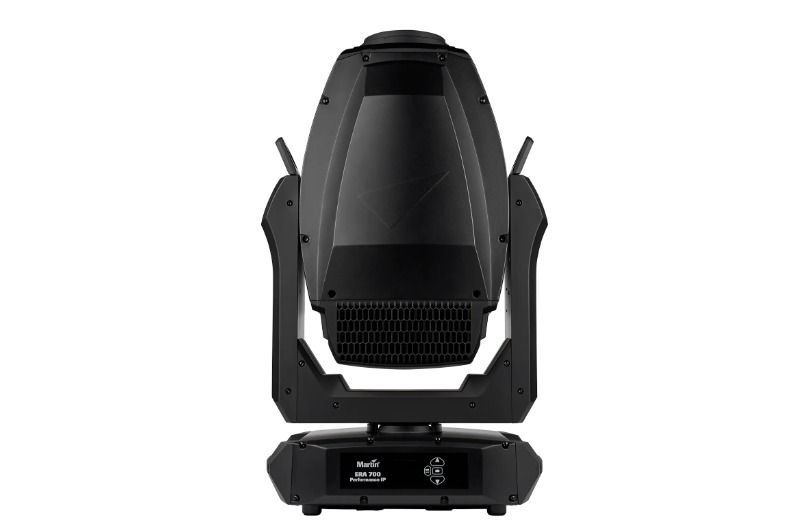

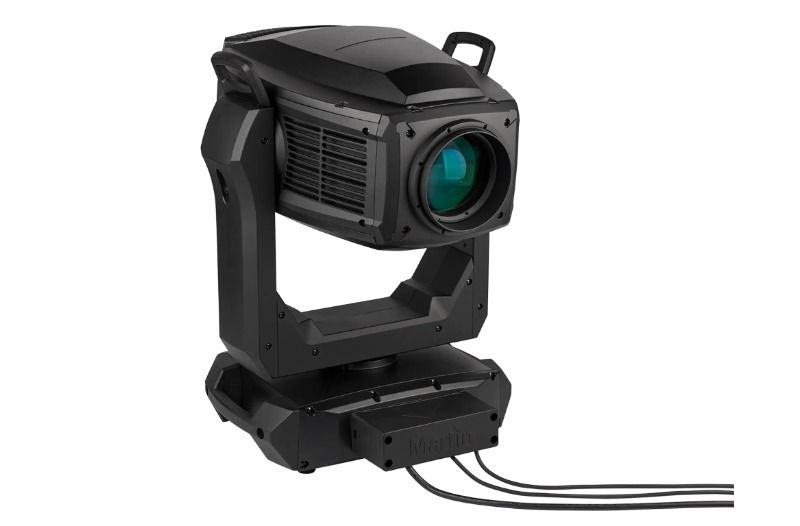

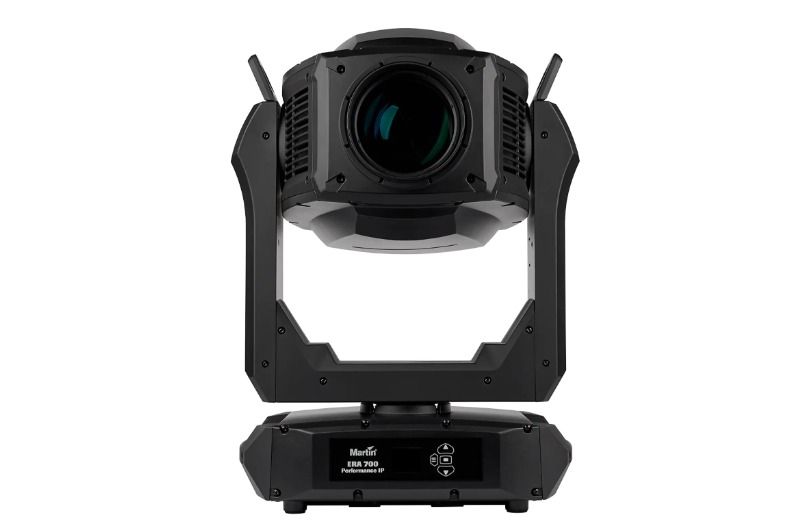

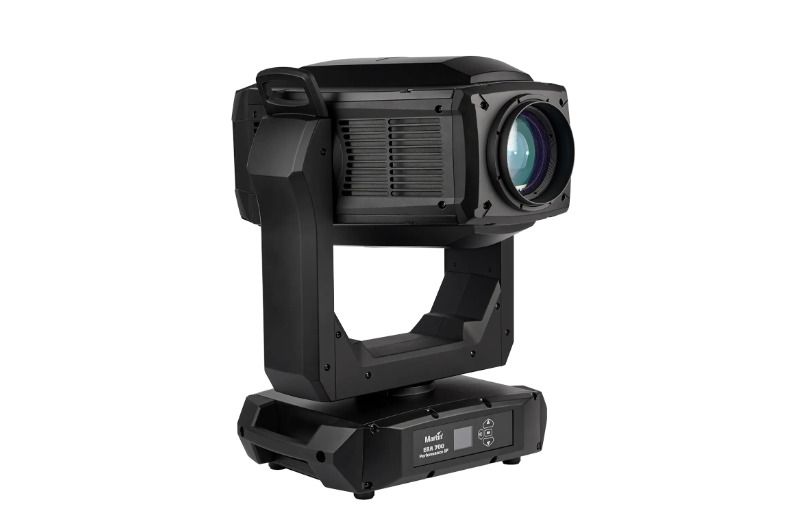

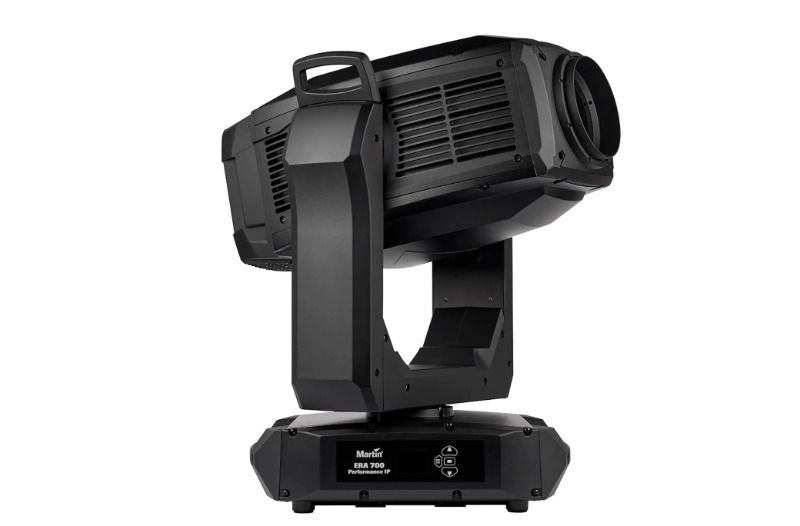

ERA 700 Performance IP

  • Marka : MARTIN
  • Ürün Kodu : ERA 700 PERFORMANCE

ERA 700 Performans IP'si
Tam perde çerçeveli ve CMYC renk karışımına sahip 680W IP65+ LED tabanlı profil

Martin Professional'ın ERA 700 Performance IP'si, sürekli açık hava eğlencesi kullanımı için özel olarak tasarlanmıştır ve daha etkileyici ışık gösterileri için aşırı çevre koşullarına dayanabilir. CMYC renk karıştırma sistemi, tam perde çerçeveleme sistemi, çift gobo tekerlekleri, çift prizmalar, çift donma, animasyon ve çok çeşitli yeni gobo seçimlerini içeren kapsamlı bir aydınlatma tasarımı araç seti sunar. Yalnızca 759 mm yüksekliğinde, 26.000 lümen çıkışlı ve 40 kg'ın altında ağırlığa sahip olan bu cihaz, daha büyük dış mekan gösterileri ile kiralama ve kurulum uygulamaları için gereken mükemmel lümen çıkışını sağlayan güvenilir bir iş makinesidir. Çok çeşitli mimari eğlence ihtiyaçları için idealdir.

Aşırı çevresel koşullar dikkate alınarak tasarlanan ERA 700 Performance IP, sert elementlere karşı C5M deniz seviyesinde tuzluluk korumasıyla -20 santigrat derece ila +40 santigrat derece arasında kusursuz çalışma yeteneğine sahiptir. Yenilikçi aktif nem kontrol sistemi, ünite içindeki optimum nem seviyelerini koruyarak nemle ilgili sorunları önler ve tutarlı performans sağlar.

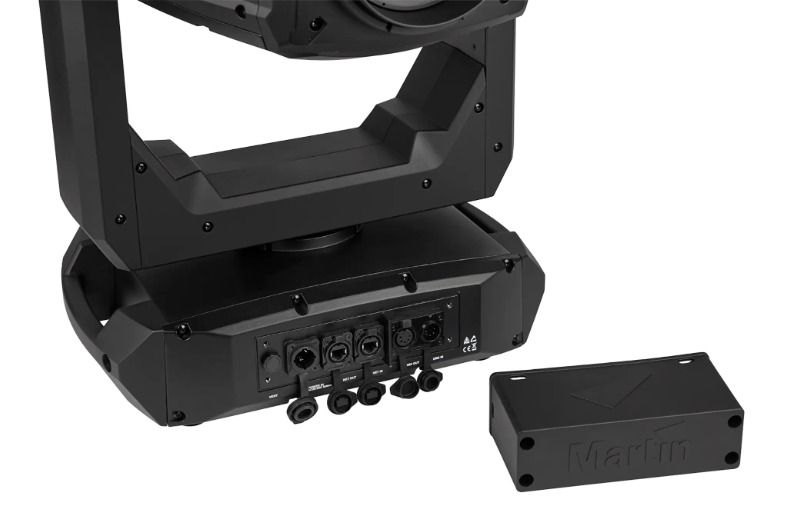

Bu donanım aynı zamanda işlevselliğini ve güvenliğini destekleyen birçok çığır açıcı özellik sunuyor. Yetkisiz erişimi önleyen ve aynı zamanda IP66'ya giriş korumasını artıran ek çevre koruması sağlayan bir kurcalamayı önleyici kutu içerir.

Martin Professional'ın ERA 700 Performance IP'si, kiralama ve kurulum pazarlarının gelişen ihtiyaçlarını karşılar. IP66 derecesi, dış mekan koruma kubbelerine olan ihtiyacı ortadan kaldırır ve kapsamlı özellik seti ve sağlam tasarımı, aydınlatma tasarımcılarına ve sistem entegratörlerine uzun vadeli dış mekan projeleri için güvenilir bir çözüm sunar.

Özellikler

  • 680W 6.500K hafif motor aracılığıyla 26.000 lümen çıkışı
  • IP65 (Kurcalamaya karşı koruma kutusu takılıyken IP66)
  • CMYC Renk Karıştırma sistemi
  • Yakınlaştırma 5,4? - 44?
  • 7 adet yeni tasarım sunan 1 x Dönen Gobo Çarkı
  • 8 adet yeni tasarım sunan 1 x Statik Gobo Çarkı
  • 1 x Animasyon tekerleği (yeni tasarım)
  • Önceden yüklenmiş Spektral Geliştirme filtresine sahip Renk Tekerleği (CRI 90)
  • Tam perde çerçeveleme sistemi
  • 2 x Prizma (Doğrusal ve dairesel)
  • 2 x Don (ağır ve orta)
  • İris
  • Bypasslı ağ üzerinden DMX/RDM ve Art-Net/sACN
  • Ağırlık 39,7 kg
  • Yükseklik 759 mm

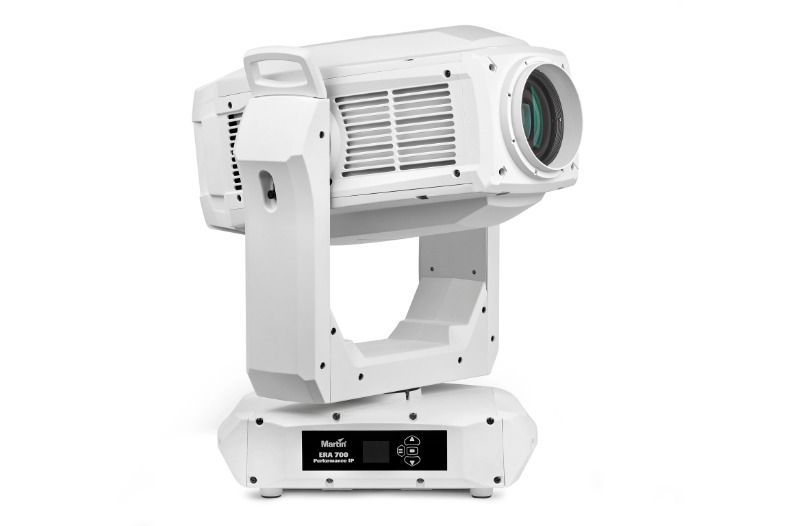

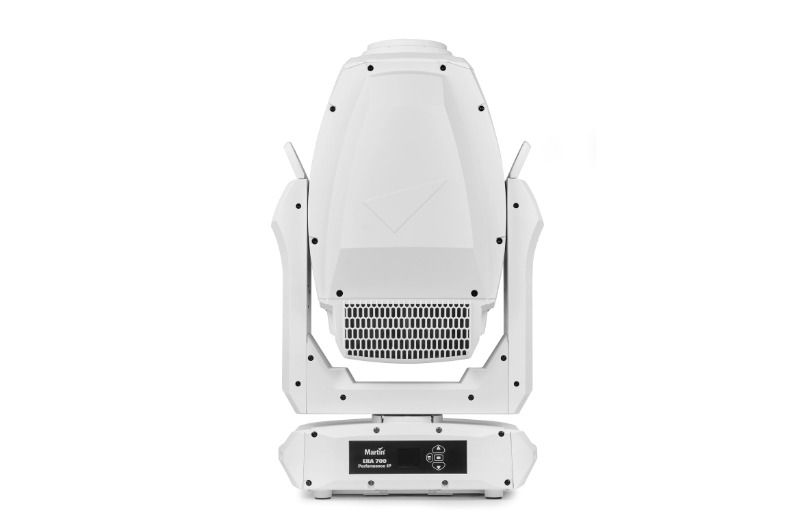

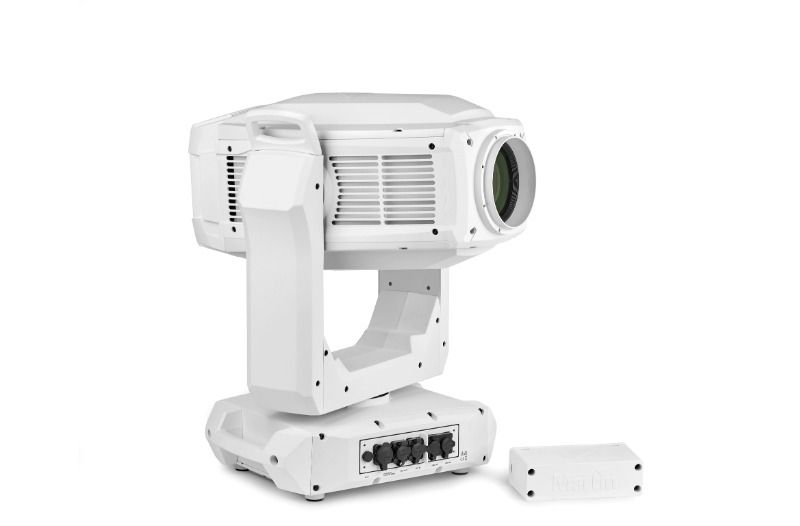

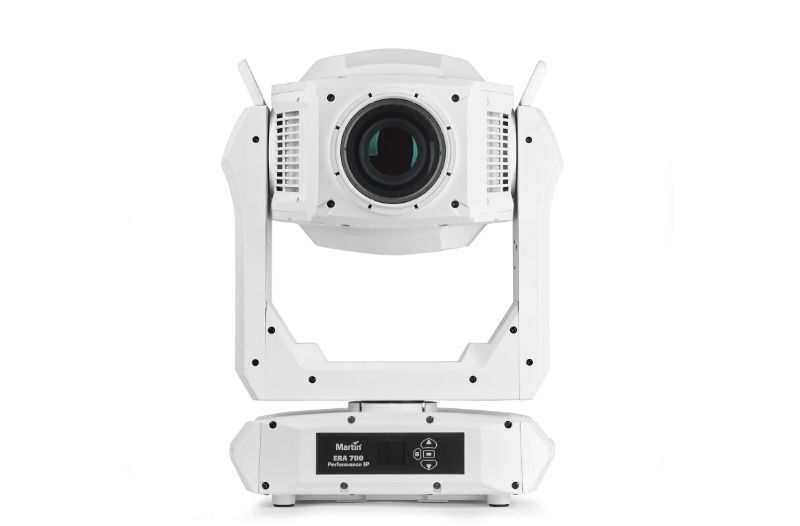

  • Siyah ve beyaz renklerde mevcuttur

Physical
Weight 39.7 kg (87.3 lbs.)
Length (head) 542 mm (21.3 in.)
Length (base) 436 mm (17.1 in.)
Width (base) 314 mm (12.3 in.)
Width (across yoke) 450 mm (17.7 in.)
Height (head straight up) 759 mm (29.8 in)
Height (maximum) 767 mm (30.2 in)
Dynamic Effects
Color mixing CMY, independently variable 0-100%
Color wheel 7 color filters plus open (incl, Spectral Enhancement Filter)
Gobo animation Animation wheel, indexing, continuous rotation with variable speed and direction, shake (flow)
Rotating gobo wheel 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel 8 gobos plus open, wheel indexing, rotation and shake
Iris 0-100%
Zoom Motorized
Color temperature control Variable 6,500 - 2,700 K
Framing Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
Prism 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
Frost Soft frost effect and heavy frost effect
Electronic dimming 0 - 100%, four dimming curve options
Electronic shutter effect Strobe effect, pulse effects, instant open and blackout
Pan 540°, coarse & fine control and speed
Tilt 270°, coarse & fine control and speed
Focus Motorized
Control and Programming
Control options DMX, RDM, Art-Net, sACN
Protocol detection Automatic

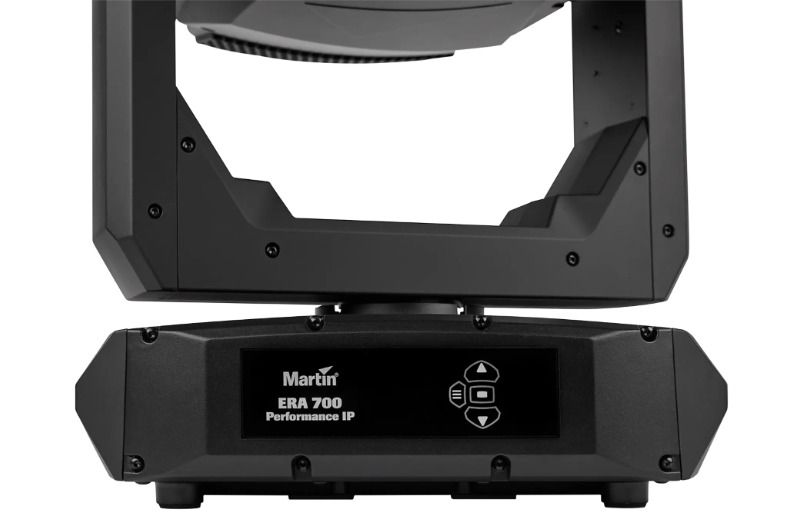

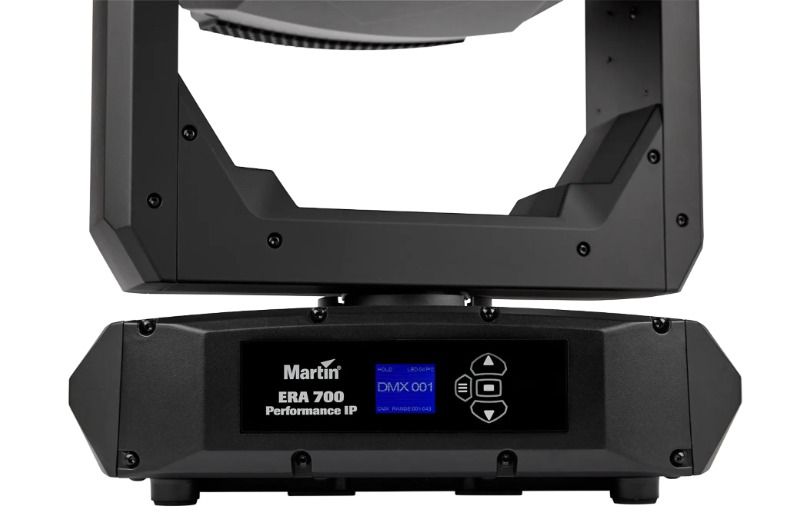

Setting and addressing Control panel with backlit LCD display and battery powered operation
16-bit control Dimming, CMY, CTO, Zoom, Focus, Framing, Gobo Rotation/Indexing, Pan and Tilt
DMX channels Basic 42 Extended 54
DMX compliance USITT DMX512/1990
RDM compliance ANSI/ESTA E1.20
Art-Net Compliance Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance ANSI E1.31 - 2016
Transceiver Opto-isolated RS-485
Optics
Front lens diameter 120 mm (4.75 in.)
Zoom range 5.4° to 44° (1:8)
Light source 680 W LED engine
Minimum LED lifetime 20,000 hours (to >70% luminous output)*
Binning Tight color and flux binning*Manufacturer's figure obtained under manufacturer's test conditions
Photometric Data
Light engine luminous output 41,600 lumens
LED refresh rate 3,600 Hz
Photometric Data With Spectral Enhancement Filter
Fixture luminous output 16,420 lumens
CRI (Color Rendering Index) 90
CQS (Color Quality Scale) 88
TM-30 Rf (IES TM-30-15 Fidelity Index) 87
TM-30 Rg (IES TM-30-15 Gamut Index) 106
TLCI (Television Lighting Consistency Index) 73
CCT 6400 K (+/- 250 K)
Photometric Data Standard
Fixture luminous output 26,000 lumens
CRI (Color Rendering Index) 70
CQS (Color Quality Scale) 68
TM-30 Rf (IES TM-30-15 Fidelity Index) 71
TM-30 Rg (IES TM-30-15 Gamut Index) 94
TLCI (Television Lighting Consistency Index) 46
CCT 6500 K (+/- 250 K)
Peak Luminous Intensity 1,393,059 cd (narrow)
Construction
Housing Recyclable high-impact flame-retardant thermoplastic and cast aluminum
Color Black & White
Protection rating IP 65 (IP 66 with anti-tamper box installed)
Corrosion resistance C5-M (very high corrosivity / marine, ISO 12944)
Gobos
Maximum image diameter 19 mm (0.75 in.)
Gobo material Borofloat 33
External diameter 23.0 mm +0 / -0.2 mm (0.906 in. +0 / -0.008 in.)
Maximum gobo thickness 1.1 mm (0.04 in.)
Coating Speciality coating including CT correction
Installation

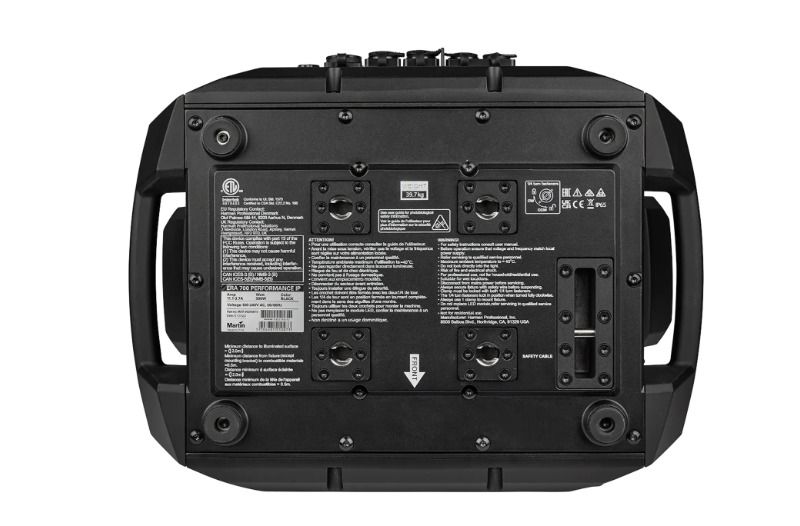

Mounting points 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location Wet locations, must be fastened to surface or structure
Orientation Any
Minimum distance to combustible materials 0.2 m (8 in.)
Minimum distance to illuminated surfaces 2.0 m (6.6 ft.)

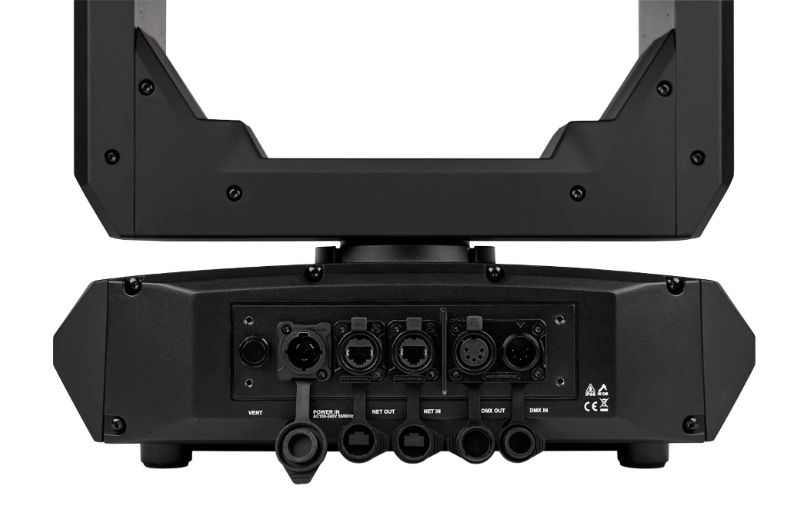

Connections
DMX and RDM data in/out 5-pin locking XLR
AC mains power input. TRUE1 compatible socket, accepts TRUE1 NAC3FX-W (TOP) connector
Ethernet Art-Net, sACN in/out, including fail-safe bypass Neutrik etherCON
Electrical
AC power 100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 14 AMax leakage current: 0.43 mAPower Factor: 0.97 @ 100 V / 120 V / 230 V / 240 VTypical current draw: 11.1 A @ 100 V / 120 V , 3.7 A @ 200 V / 230 V / 240 V * Power ConsumptionMaximum: 990 WTypical: 856 W *Idle: 114 W *Hibernation: 19 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed. Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.
Thermal
Cooling Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.) 40° C
Minimum ambient temperature (Ta min.) -20° C
Maximum surface temperature, steady state, at 40° C ambient 75° C (167° F)
Total heat dissipation (calculated, +/- 10%) 3375 BTU/hr
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) 44.3 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) .38.3 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 29.6 Lm/Watt
LWR* .655 Lm/Kg*LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC .EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety UL 1573
US EMC FCC Part 15 Class B
Canadian safety CSA C22.2 No. 166
Canadian EMC ICES-003 Class B, ICES-005 Class B
Australia/NZ RCM
Korea KS C 9832, KS C 9835
Included Items

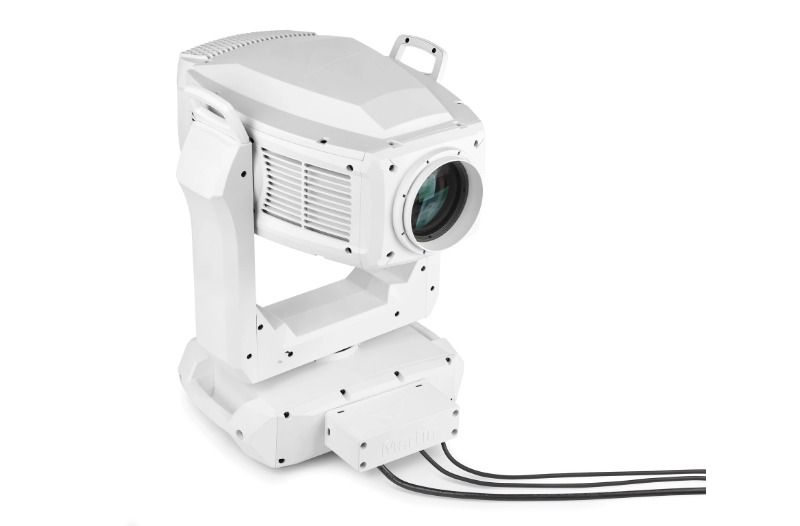

Two omega brackets with 1/4 turn fasteners for rigging clamp attachment 2 x P/N 91602001Anti-Tamper Environmental Protection Box
Related Items
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Martin Companion Cable USB/DMX hardware interface P/N 91616091
Accessories
Power input cablesPower Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174Power connectorsCable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HUInstallation hardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Half-coupler Clamp: P/N 91602005Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007T-shape omega bracket with 1/4 turn: P/N 91602008M12 Installation Kit:P/NMAR-91616136
Ordering Information
Martin ERA 700 Performance IP in cardboard box P/N MAR-90290010
Martin ERA 700 Performance IP White in cardboard box P/N MAR-90290015
Flightcase, two unit, for 2 x ERA 700 Performance IP P/N MAR-91515059
