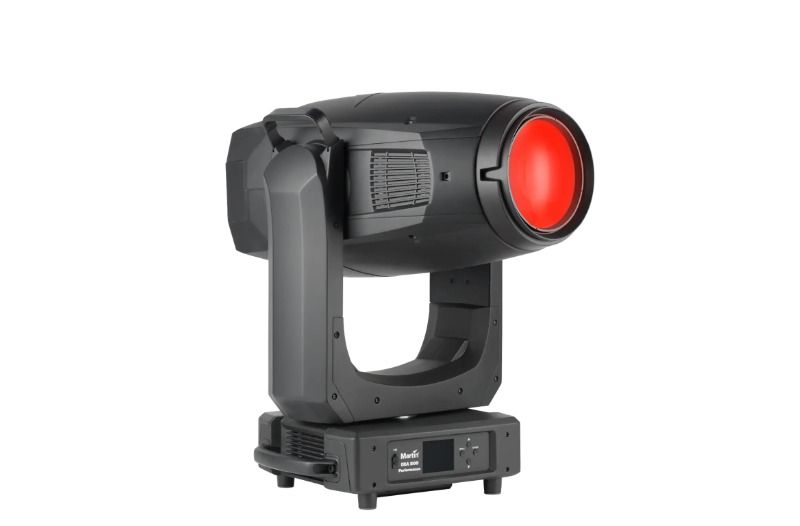

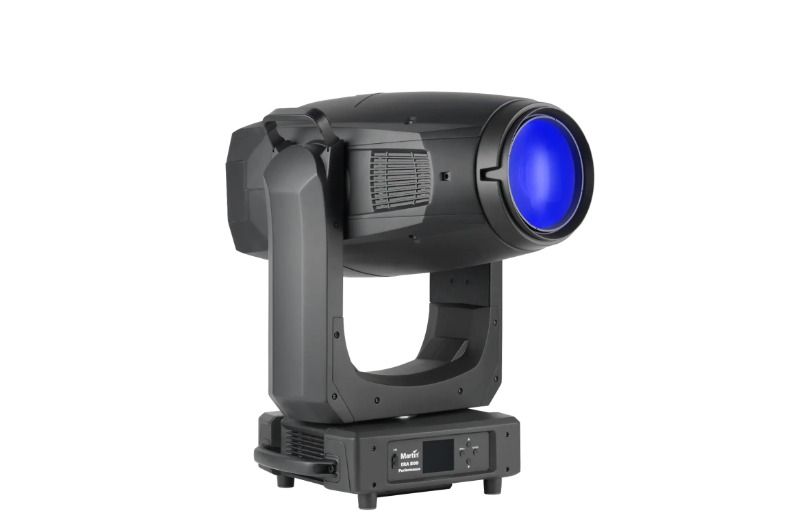

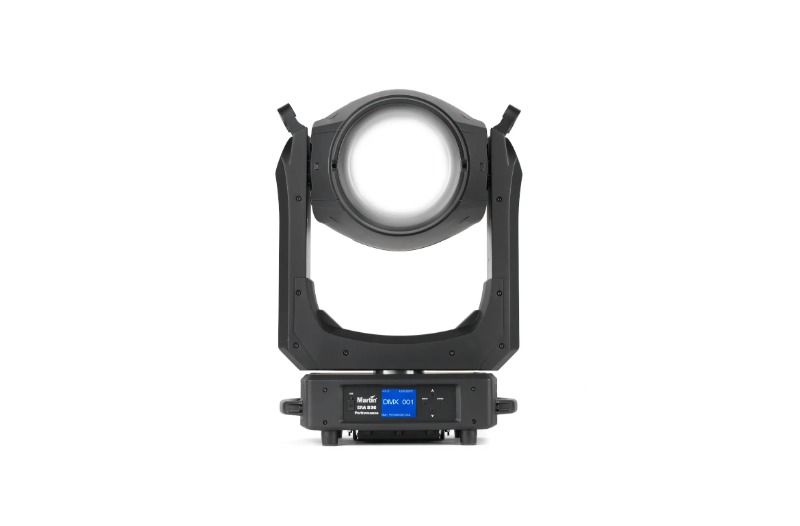

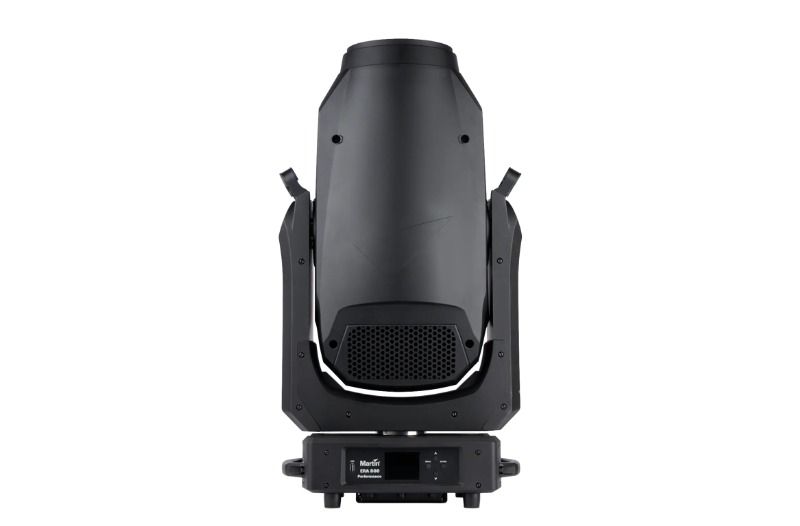

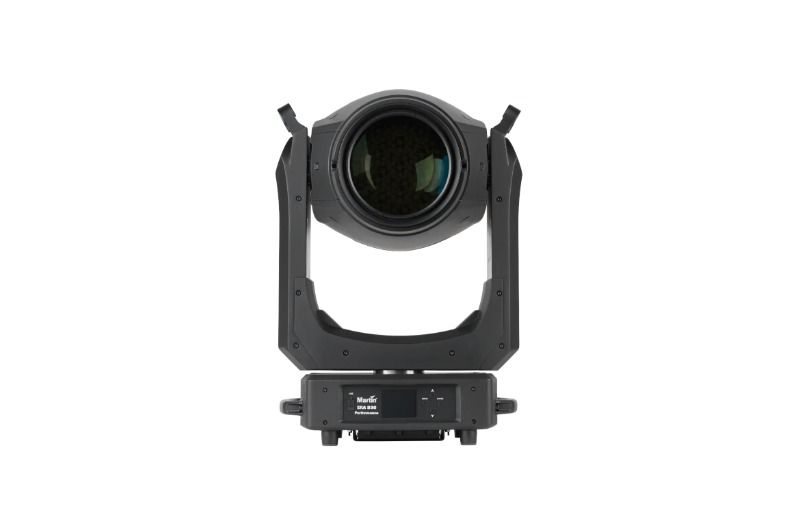

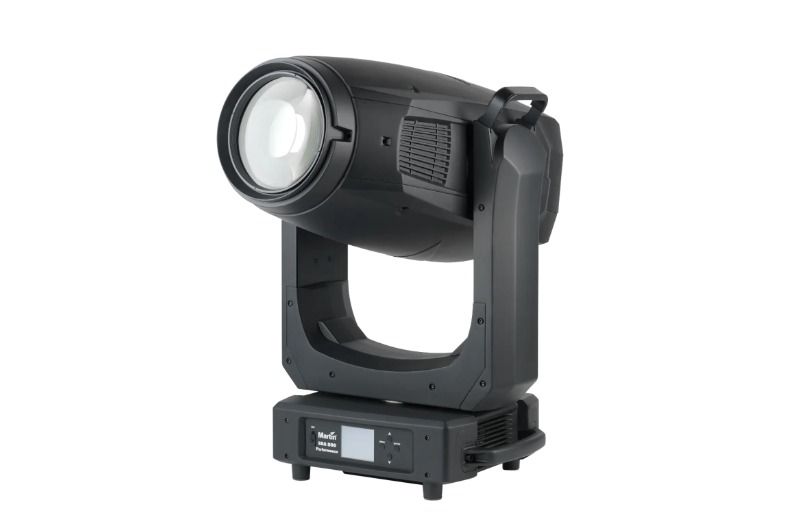

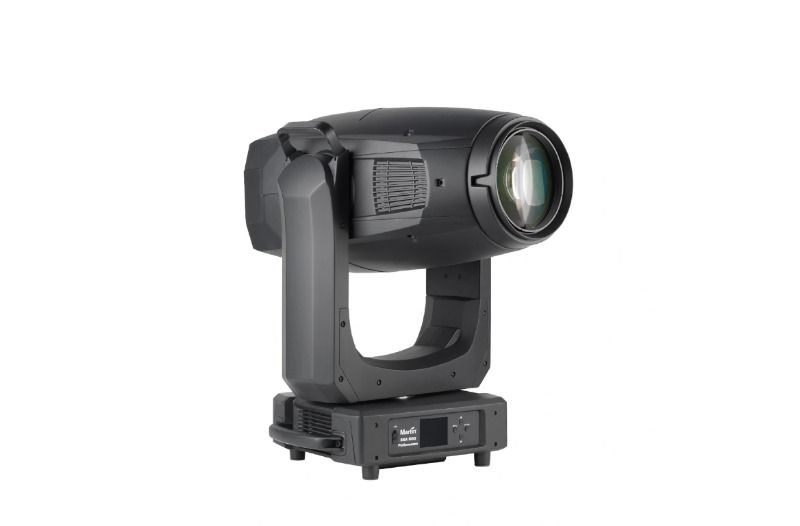

ERA 800 Performance

  • Marka : MARTIN
  • Ürün Kodu : ERA 800 PERFORMANCE

ERA 800 Performansı(üretilmiyor)
Çerçeveleme ve CMY renk karışımına sahip 800W LED tabanlı profil

Ultra parlak, kompakt, turneye çıkmaya uygun hareketli kafa talebini karşılamak üzere tasarlanan Martin ERA 800 Performance, eğlence ve kiralama uygulamaları için özelliklerle dolu, sağlam ve aynı zamanda uygun maliyetli bir profili birleştiriyor.

Düz bir alanla parlak, keskin 6.500K gobo projeksiyonu üreten son derece verimli, süper parlak 800W beyaz LED motora sahiptir. Ek avantajlar arasında 1:8 yakınlaştırma, elektronik karartma ve flaş, tam CMY renk karıştırma ve ayrı renk tekerleği, değişken renk sıcaklığı kontrolü, animasyon tekerleği, ışın ayarı için iris ve sabit ve dönen gobo tekerlekleri yer alır; bu tekerlekler, özellikle iki dönen prizma ve yumuşak ve ağır don filtreleriyle birleştirildiğinde çok çeşitli efektler içeren ünlü Martin MAC serisinden kullanıcının favori gobo'larıyla yüklüdür.

ERA 800 Performance, aydınlatma tasarımcılarına sahnede hassas görünümler elde etmek için yüksek derecede esneklik sunan tam perde çerçeveleme sistemini içerir.

Büyük, stadyum boyutunda sahne ve canlı prodüksiyonlar için mükemmel olan Martin ERA 800 Performance, neredeyse sınırsız tasarım ve kullanım potansiyeli sunan son derece parlak ancak gerçek anlamda çok yönlü bir LED profili gerektiren uzun bir senaryo listesi için idealdir.

Özellikler

  • Parlak 800 watt / 6.500K LED ışık kaynağı
  • 34.000 lümen çıkışı
  • Düz alanlı net optikler
  • 1:8 Hızlı yakınlaştırma
  • 160 mm ön lensle kalın ışın görünümü
  • CMY renk karışımı - MAC aralığına uygun üstün renk paletiyle canlı renk karışımı
  • Doğrusal CTO - Gün ışığından tungsten CCT kontrolüne ve CMY paletinin genişletilmesi
  • 6 yuvalı renk tekerleği - daha fazla renk seçeneği ve bölünmüş renk efektleri için
  • Esnek şekil üretimi için tüm sistemin +/- 60° dönmesine sahip Tam Perde Çerçeveleme bıçakları
  • 6 adet döner/indeksleme gobosu - Tüm ünlü Martin cam goboları
  • Harika geçiş efektleri için 7 statik gobo
  • Sürekli çift yönlü dönüşe sahip animasyon tekerleği
  • İris - Hızlı ve sıkı iris
  • İki prizma - 4 yönlü ve doğrusal - dinamik efektler için döndürme ve indeks kontrolü
  • Yumuşak don - Hafif bir don, gobo sanat eserinin güzel, yumuşak bir kenarla görünür olmasını sağlar.
  • Yoğun donma - yıkama ışığı efektleri için
  • Kompakt ve düşük ağırlıklı tasarım

Physical
Weight 41.0 kg (90.4 lbs.)
Minimum center-to-center distance in side-by-side installation 730 mm (28.8 in.)
Length (head) 608 mm (24.0 in.)
Length (base) 416 mm (16.4 in.)
Width (base) 290 mm (11.4 in.)
Width (across yoke) 431 mm (17.0 in.)
Height (head straight up) 802 mm (31.6 in.)
Height (maximum) 851 mm (33.5 in)
Dynamic Effects
Color mixing CMY, independently variable 0-100%
Color wheel 6 color filters plus open
Gobo animation Animation wheel, indexing, continuous rotation with variable speed and direction
Rotating gobo wheel 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel 7 gobos plus open, wheel indexing, rotation and shake
Iris 0-100%
Zoom Motorized
Color temperature control Variable 6500 - 2700 K
Framing Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position.
Prism 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
Frost Soft frost effect and heavy frost effect
Electronic dimming 0 - 100%, four dimming curve options
Electronic shutter effect Strobe effect, pulse effects, instant open and blackout
Pan 540°, coarse & fine control and speed
Tilt 260°, coarse & fine control and speed
Focus Motorized
Control and Programming
Control options DMX
Setting and addressing Control panel with backlit LCD display
16-bit control Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt
DMX channels 42
DMX compliance USITT DMX512/1990
RDM compliance ANSI/ESTA E1.20
Transceiver Opto-isolated RS-485
Optics
Front lens diameter 160 mm (6.3 in.)
Zoom range 7° - 56° (1:8)
Light source 800 W LED engine
Minimum LED lifetime 20000 hours (to >70% luminous output)*
Binning Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions
Photometric Data
Light engine luminous output 70,000 lumens LED refresh rate : 3600 Hz Standard Fixture luminous output: 35,000 lumens CRI (Color Rendering Index): >70 CQS (Color Quality Scale): >67 TM-30 Rf (IES TM-30-15 Fidelity Index): >65 TM-30 Rg (IES TM-30-15 Gamut Index): >93 TLCI (Television Lighting Consistency Index): >44 CCT: 6900 K (+/- 250 K) Peak Luminous Intensity: 1,870,000 cd With Optional CRI Boost Filter Fixture luminous output: 25,000 lumens CRI (Color Rendering Index): >79 CQS (Color Quality Scale): >76 TM-30 Rf (IES TM-30-15 Fidelity Index): >77 TM-30 Rg (IES TM-30-15 Gamut Index): >98 TLCI (Television Lighting Consistency Index): >57 CCT: 6500 K (+/- 250 K)Peak Luminous Intensity: 1,276,000 cd* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Light engine luminous output 70,000 lumens
LED refresh rate 3600 Hz
Fixture luminous output 35,000 lumens
CRI (Color Rendering Index) >70
CQS (Color Quality Scale) >67
TM-30 Rf (IES TM-30-15 Fidelity Index) >65
TM-30 Rg (IES TM-30-15 Gamut Index) >93
TLCI (Television Lighting Consistency Index) >44
CCT 6900 K (+/- 250 K)
Peak Luminous Intensity 1,870,000 cd
Fixture luminous output 25,000 lumens
CRI (Color Rendering Index) >79
CQS (Color Quality Scale) >76
TM-30 Rf (IES TM-30-15 Fidelity Index) >77
TM-30 Rg (IES TM-30-15 Gamut Index) >98
TLCI (Television Lighting Consistency Index) >57
CCT 6500 K (+/- 250 K)
Peak Luminous Intensity 1,276,000 cd
Lamp
Construction
Housing High-impact flame-retardant thermoplastic
Color Black
Protection rating IP 20
Gobos
Maximum image diameter 25 mm (0.98 in.)
Gobo material Borofloat 33
External diameter 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.)
Maximum gobo thickness 1.1 mm (0.04 in.)
Coating Heavy matted aluminum
Installation
Mounting points 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location Dry location only, must be fastened to surface or structure
Orientation Any
Minimum distance to combustible materials 0.2 m (8 in.)
Minimum distance to illuminated surfaces 2.0 m (6.6 ft.)

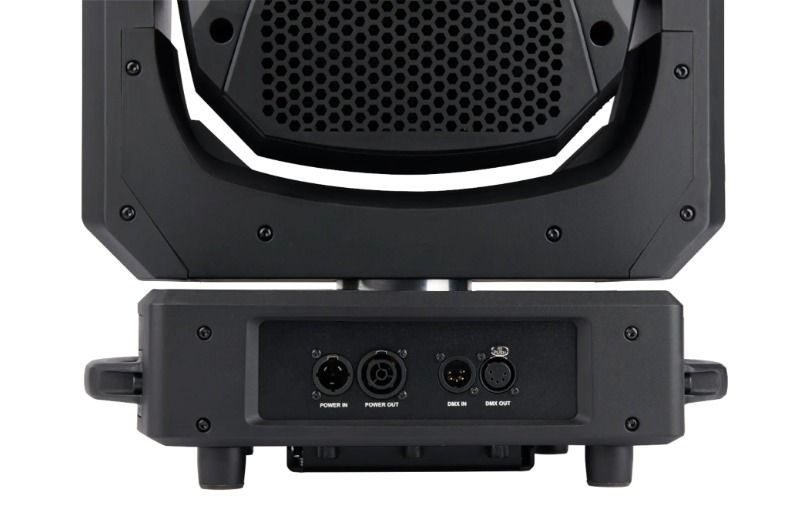

Connections
DMX and RDM data in/out 5-pin locking XLR
AC mains power input. Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
AC mains power throughput Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
Electrical
AC power 100-240 V AC nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 APower Factor: 0.99 @ 120 V , 0.97 @ 230 VTypical current draw: 10.8 A @ 120 V , 5.5 A @ 230 V * Power ConsumptionMaximum: 1397 WTypical: 1270 W *Idle: 64 W * * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Typical: full output white, no effects moving, regulated fan speed. Idle: no output, no effects moving, regulated fan speed.
Thermal
Cooling Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.) 40° C
Minimum ambient temperature (Ta min.) 0° C
Maximum surface temperature, steady state, at 40° C ambient 75° C (167° F)
Total heat dissipation (calculated, +/- 10%) 4340 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output) 41.4 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low) 37.7 dB(A)
Environmental
RoHS Compliant
REACH Compliant
WEEE Compliant
Proposition 65 Compliant
Efficacy (max output) 30.2 lm/W
LWR* 853 lm/W (387 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE IEC 60598-2-17 (IEC 60598-1)
EU safety EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC EN 55015; EN 55032; EN 55035; EN 61000-3-2,-3; EN 61547
US safety UL 1573
US EMC FCC Part 15 Class B
Canadian safety CSA C22.2 No. 166
Canadian EMC ICES-003 Class B, ICES-005 Class B
Australia/NZ RCM
Included Items
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment 2 x P/N 91602001
Related Items
Martin Companion Software Suite (including firmware uploader) Free download from www.martin.com
Martin Companion Cable USB/DMX hardware interface P/N 91616091
Accessories
Conversion kitsFraming Module (converts ERA 800 Profile to Performance) P/N 5125961-00Gobo Wheel 3 Effects Module (converts ERA 800 Performance to Profile): P/N 5131799-00 Optical accessoriesCRI Boost Filter (CRI >79, installs on gobo wheel): MAR-91614059 Power input cablesPower Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) : P/N 91611797Power Input Cable, H07RN-F, 2.5 mm2, 14 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174 Power relay cables, 16 APower Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172 Power connectorsCable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): P/N 91611789HUCable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): P/N 91611788HU Installation hardwareG-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003Half-coupler Clamp: P/N 91602005Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007T-shape omega bracket with 1/4 turn, PN 91602008
Verified Third-Party Accessories
Beam ControlERA 800 Performance Top Hat P/N City Theatrical2820ERA 800 Performance Concentric Ring: P/NCity Theatrical 2821ERA 800 Performance Hexcel Louver: P/N City Theatrical 2822
Ordering Information
Martin ERA 800 Performance in cardboard box P/N 9025122052
Martin ERA 800 Performance - White in cardboard box P/N 9025122053
Flightcase, two unit, for 2 x ERA 800 Performance / Profile P/N 91512255
