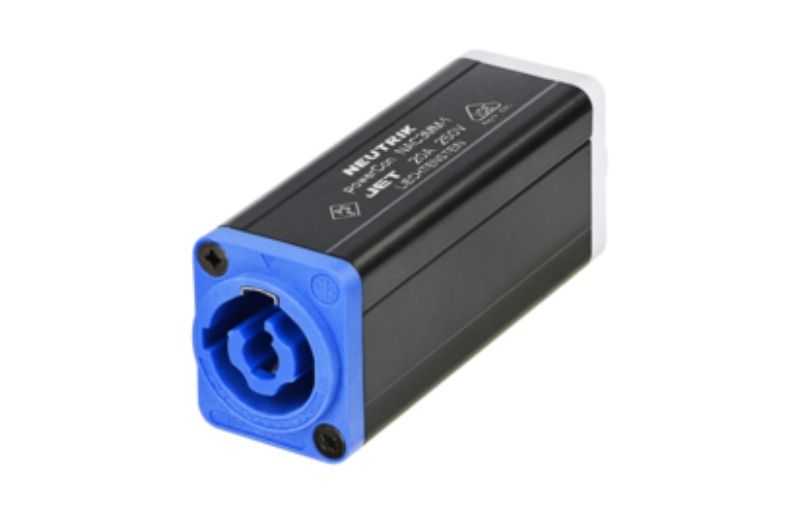

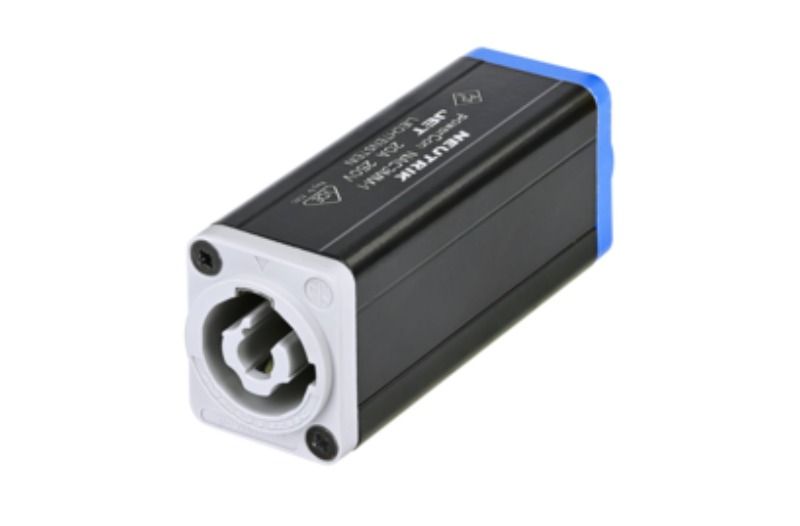

NAC3MM-1

Marka : NEUTRIK
Ürün Kodu : NAC3MM-1

powerCON NAC3MPXXA (güç girişi) - powerCON NAC3MPXXB (güç çıkışı), güç kablolarını NAC3FXXA/B'ye bağlamak için CBC bağlayıcı.

Product
Title	NAC3MM-1
Connection Type	Adapter
Gender	male
Electrical
Contact resistance	<= 3 mOhm
Dielectric strength	4 kVdc
Insulation resistance	> 0.1 GOhm (after damp heat test IEC 68-2-30)
Rated current per contact	16 A rms
Rated voltage	250 V ac
Mechanical
Lifetime	> 1000 mating cycles
Locking device	Quick Lock
Material
Contact plating	2 µm Ag
Locking element	Steel Ck67
Shell	Polyamide (PA 6.6 30 % GR)
Contacts	Bronze (CuNi1Si0.2)
Environmental
Flammability	UL 94 V-0
Protection class	IP 20 (mated)
Safety Requirements	EN/IEC 61984
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
