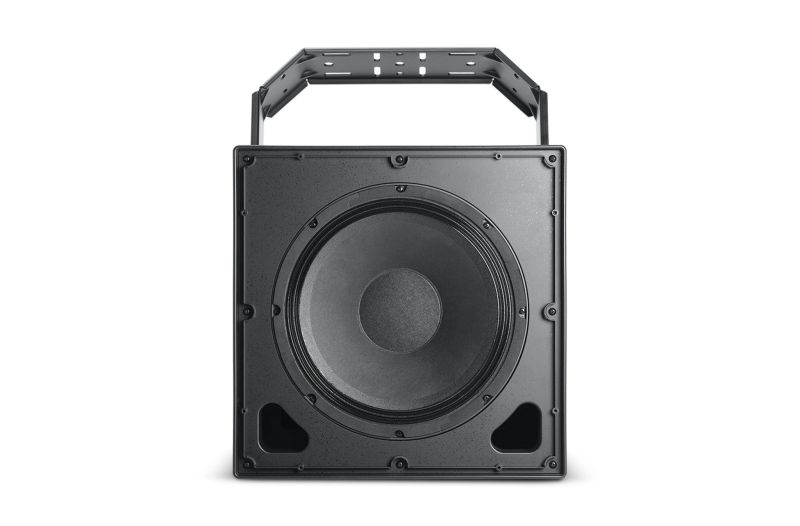

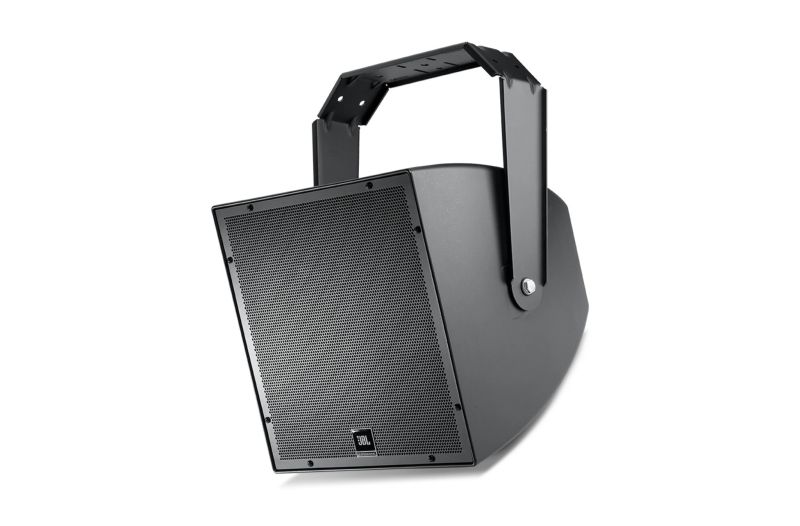

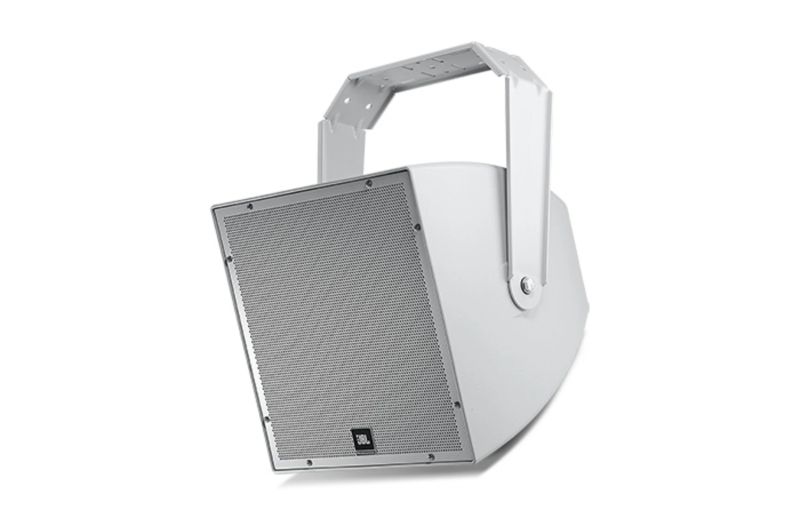

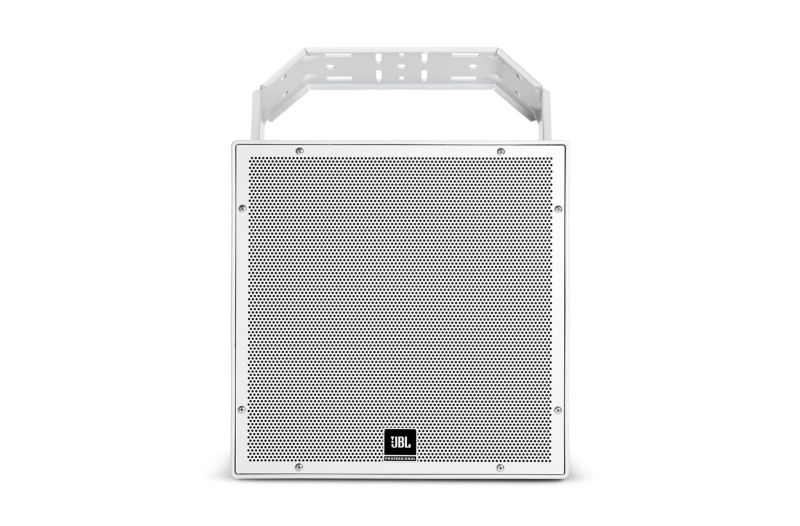

AWC15LF

  • Marka : JBL
  • Ürün Kodu : AWC15LF

15" LF'li, Her Hava Koşullarına Uygun Kompakt Düşük Frekanslı Hoparlör
AWC15LF, bir ses sisteminin düşük frekans kapasitesini artırmak için kompakt, hava koşullarına son derece dayanıklı bir hoparlördür. AWC15LF, spor tesisleri, yarış pistleri, stadyumlar, fuar alanları, rodeolar, buz pateni pistleri, temalı eğlence mekanları, su parkları, dış mekan arka plan müzik sistemleri, yüzme havuzları ve çok çeşitli diğer açık ve kapalı mekan türleri dahil olmak üzere birçok uygulama için idealdir.

Özellikler

  • Dış mekan uygulamaları için düşük frekanslı takviye
  • Hava koşullarına son derece dayanıklı IP56 derecesi
  • Bileşen:
  • ? Kevlar ile güçlendirilmiş konili ve 75 mm (3 inç) ses bobinli 380 mm (15 inç) woofer.
  • 500 Watt güç kullanımı (ortalama sürekli pembe gürültü)
  • 45 Hz'e kadar frekans aralığı
  • 300 Watt 70V/100V çoklu kademe transformatörü veya doğrudan 8 Ohm düşük empedans.

Frequency Range (-10dB) 45 Hz - 2.2 kHz
Frequency Response (±3 dB) 70 Hz - 1.2 kHz
System Power Rating 500 W (2000 W peak), 2 hrs. 300 W (1200 W peak), 100 hrs.
Sensitivity (2.83V @ 1m) 94 dB (Ave. 80 Hz - 300 Hz)
Maximum SPL (1m) Direct 8 Ohm: 121 dB (peaks of 127 dB) 300 W Tap: 119 dB (peaks of 125 dB)
Nominal Impedance 8 ohms (in Direct mode)
Transformer Taps 70V: 300W, 150W, 75W, 38W 100V: 300W, 150W, 75W
LF Driver 380 mm (15 in), Kevlar-reinforced cone, with weather treatment, 75 mm (3 in) voice coil, long throw.
Enclosure ABS with Glass enclosure, heavily braced
Attachment Two M10 (course-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside openlug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
Dimensions 486 x 486 x 479 mm (19.1 x 19.1 x 18.8), cabinet 507 mm (19.9 in) depth with gland nut 546 mm (21.5 in) including bracket extending to back
Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated, steel.
Nominal LF Driver Impedance 8 ohms (in Direct mode)
Suspension Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Net Weight (each) 20.2 kgs. (44.5 lbs.)
Coverage Pattern Omnidirectional
