NF2D-B-9

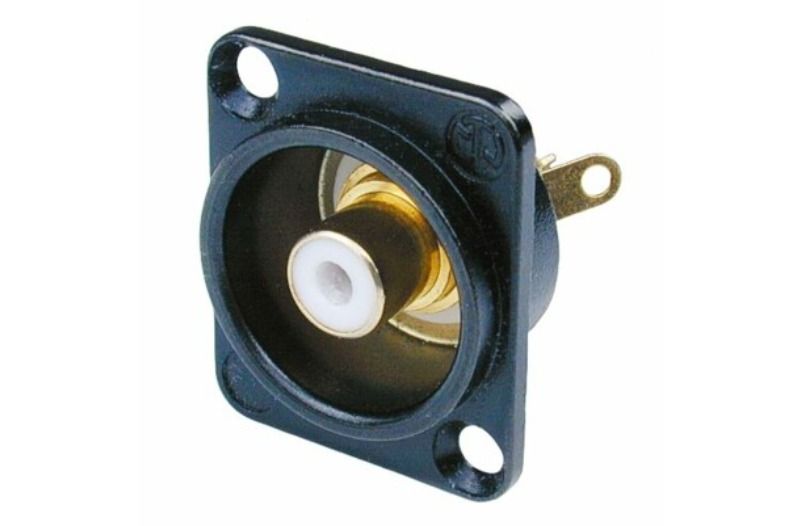

Siyah krom D-şekilli muhafazada fono soketi, beyaz izolasyon rondelaları, lehim versiyonu.

Özellikler ve Faydalar

Product
Title	NF2D-B-9
Connection Type	RCA
Gender	female
Electrical
Capacitance between contacts	<= 9 pF
Contact resistance	<5G mOhm
Dielectric strength	0,5 kVdc
Insulation resistance	< 5 GOhm
Rated current per contact	16 A
Rated voltage	< 50 V
Mechanical
Lifetime	> 2000 mating cycles
Wiresize
Wiring	Solder contacts
Mounting direction	Front mounting
Chassis shape	D
Material
Contacts	Brass (CuZn39Pb3)
Shell	Zinc diecast (ZnAl4Cu1)
Contact plating	0.05 µm Au over 2 µm Ni
Environmental
Flammability	UL 94 HB
Standard compliance	IEC 601-14
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
