NF2D-9

  • Marka : NEUTRIK
  • Ürün Kodu : NF2D-9

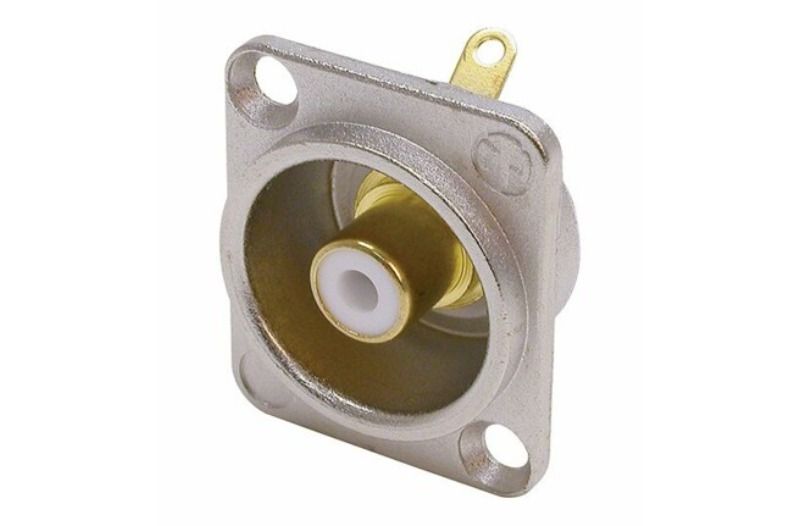

Nikel D-şekilli muhafazada fono soketi, beyaz izolasyon rondelaları, lehim versiyonu.

Özellikler ve Faydalar

  • Zorlu kalite standartlarımıza göre hassas bir şekilde işlenmiştir
  • Altın kaplama kontaklar

Product
Title NF2D-9
Connection Type RCA
Gender female
Electrical
Capacitance between contacts <= 9 pF
Contact resistance <10 mOhm
Dielectric strength 0,5 kVdc
Insulation resistance > 5 GOhm
Rated current per contact depends on mating connector / A
Rated voltage < 50 V
Mechanical
Lifetime > 2000 mating cycles
Wiresize
Wiring Solder contacts
Mounting direction Front mounting
Chassis shape D
Material
Contacts Brass (CuZn39Pb3)
Shell Zinc diecast (ZnAl4Cu1)
Contact plating 0.05 µm Au over 2 µm Ni
Environmental
Flammability UL 94 HB
Standard compliance IEC 601-14
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
