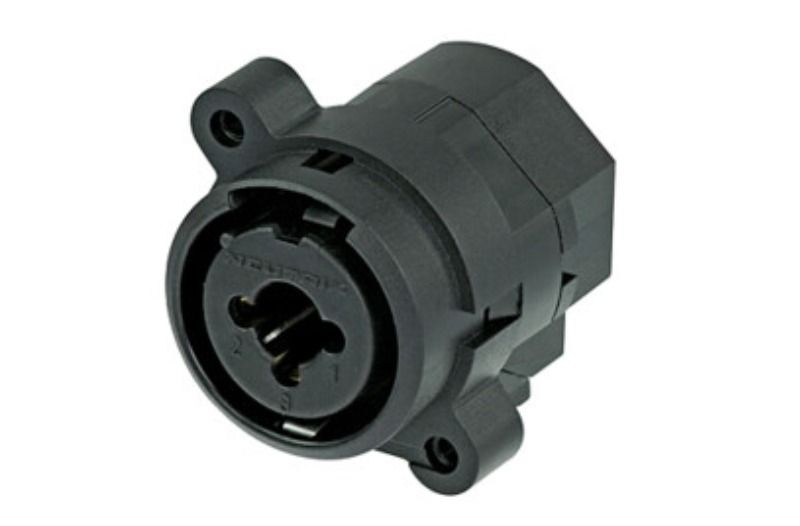

NCJ5FI-H-0

Anahtarlama kontağı olmayan 1/4" mono jaklı 3 kutuplu XLR dişi priz, yatay PCB montajı, Tutma yayı
3 kutuplu XLR yuvasını ve 1/4" jakı birleştiren XLR / jak hibrit kasa konektörü.

Product
Title NCJ5FI-H-0
Connection Type Combo
Gender female
Electrical
Contact resistance < 10 mOhm (XLR)
Contact resistance < 20 mOhm (jack)
Dielectric strength 1,5 kVdc
Insulation resistance > 2 GOhm (initial)
Rated current per contact 7,5 A (XLR)
Rated current per contact 7,5 A (Jack)
Rated voltage < 50 V
Mechanical
Insertion force <= 25 N
Withdrawal force <= 25 N
Lifetime > 1000 mating cycles
Locking force > 20 N separating force
Panel thickness max. 7 mm 0.27"
Wiresize
Mounting direction Rear mounting
Material
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Bronze (CuSn6)
Insert PA66
Locking element Steel Ck67
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C
