NC3FXX-HD-B-D

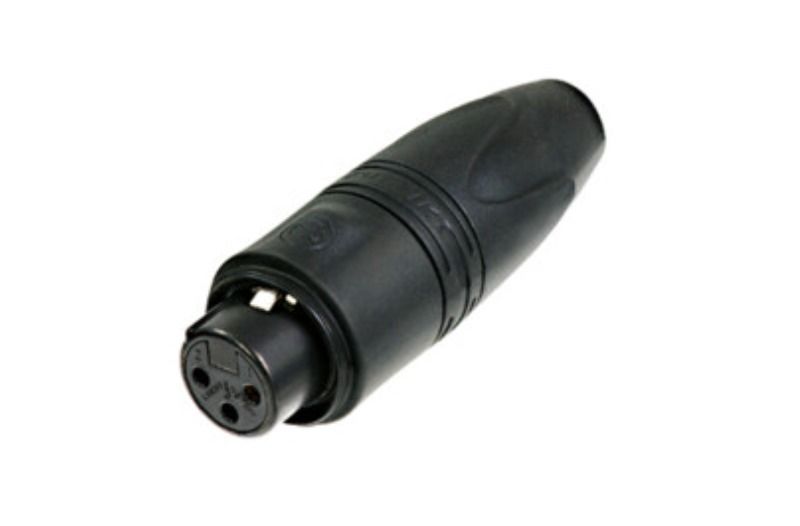

Dış mekan kullanımı için ağır hizmet tipi dişi 3 kutuplu XLR kablo konnektörü, siyah muhafaza.

Özellikler ve Faydalar

Product
Title	NC3FXX-HD-B-D
Connection Type	XLR
Gender	female
Electrical
Capacitance between contacts	<= 4 pF
Contact resistance	<= 3 mOhm
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GOhm (initial), > 1 GOhm (after damp heat test)
Rated current per contact	16 A
Rated voltage	< 50 V
Mechanical
Cable O.D.	6.0 - 8.0 mm
Insertion force	<= 20 N
Withdrawal force	<= 20 N
Lifetime	> 1000 mating cycles
Wiresize	max. 2.5 mm²
Wiresize	max. 14 AWG
Wiring	Solder contacts
Locking device	Latch lock
Material
Boot	Polyurethan
Contact plating	0.2 µm Au hard alloy over 2 µm Ni
Contacts	Bronze (CuSn8)
Insert	Polyamide (PA66)
Locking element	Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell	Zinc diecast (ZnAl4Cu1)
Shell coating	Black KTL
Strain relief	Polyacetal (POM)
Sealing jacket	EPDM
Environmental
Flammability	UL 94 V-0
Standard compliance	IEC 61076-2-103
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
