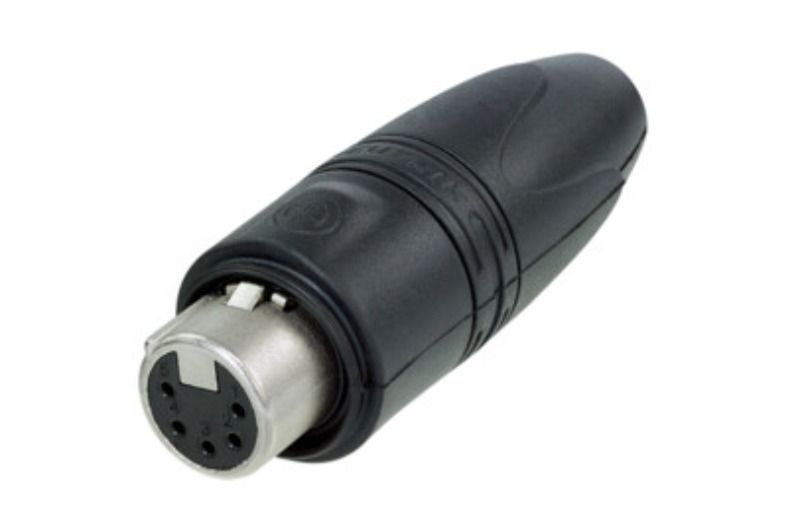

NC5FXX-HD-D

Dış mekan kullanımı için ağır hizmet tipi dişi 5 kutuplu XLR kablo konnektörü.

Özellikler ve Faydalar

Product
Title	NC5FXX-HD-D
Connection Type	XLR
Gender	female
Electrical
Capacitance between contacts	<= 7 pF
Contact resistance	<= 3 mOhm
Dielectric strength	1.5 kVdc
Insulation resistance	> 10 GOhm (initial), > 1 (after damp heat test)
Number of electronical contacts	5
Rated current per contact	7.5 A
Rated voltage	< 50 V ac
Mechanical
Cable O.D.	6.0 - 8.0 mm
Insertion force	<= 20 N
Withdrawal force	<= 20 N
Lifetime	1000 mating cycles
Wiresize	max. 1.0 mm²
Wiresize	max. 18 AWG
Wiring	Solder contacts
Locking device	Latch lock
Material
Boot	PA / PU
Contact plating	0.2 µm Au hard alloy over 2 µm Ni
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA66)
Locking element	Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Nickel
Strain relief	Polyacetal (POM)
Sealing jacket	EPDM
Environmental
Flammability	UL 94 V-0
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
Manufacturing Standard	IEC 61076-2-103
