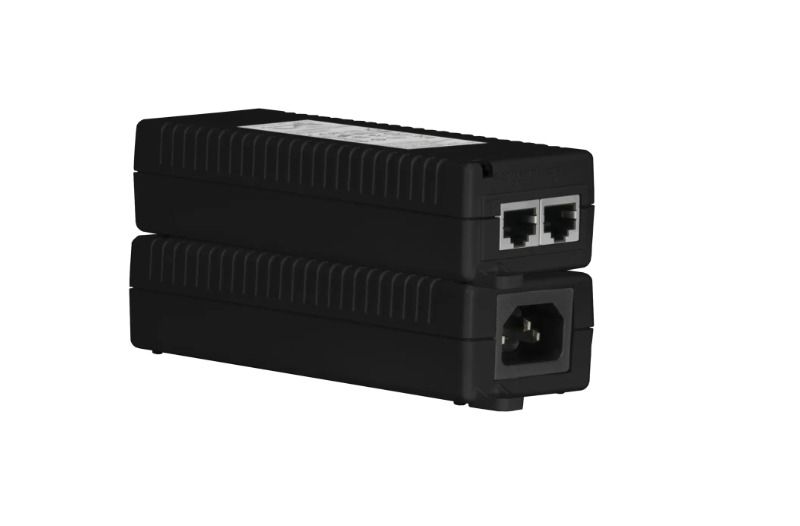

PS-POE-AT-TC

  • Marka : AMX
  • Ürün Kodu :

PS-POE-AT-TC
Yüksek Güçlü PoE Enjektörü, 802.3AT Uyumlu

Yüksek güçlü PS-POE-AT-TC Enjektörüyle, hem gücü hem de verileri tek bir kablo aracılığıyla uzak bir Ethernet Üzerinden Güç (PoE) dokunmatik paneline iletin. MVP-9000i ve DXLink Bükümlü Çift Verici ve Alıcılarla kullanım için gerekli olan bu ürün aynı zamanda MXT-1000, MXD-1000, MXT-700, MXD-700 ve MXD-430 ile de uyumludur. Bu bağımsız tek bağlantı noktalı PoE gigabit güç kaynağı, DC gücünü ve verilerini 100 metreye (328 feet) kadar bir mesafeden aynı bükümlü çift kabloya "enjekte eder".

Ortak Uygulamalar

PS-POE-AT-TC PoE Enjektörü, talep üzerine gücü ve verileri tek bir Ethernet bağlantısı üzerinden uyumlu dokunmatik panellerin duvar veya masa yerleştirme istasyonlarına gönderir.

Özellikler

  • 10/100/1000 (MbPS) Veri Hızları
  • IEEE802.3at gereksinimlerini karşılar
  • Yük Teşhis LED'i
  • 100/240 VAC Üniversal Giriş

Dimensions (HWD) 5 1/2" x 2 1/8" x 1 1/4" (14 cm x 5.3 cm x 3.25 cm)
Weight .44 lbs (200 g)
Environmental
  • Temperature (Operating):
    • -4°F to 104°F (-20°C to 40°C) @ 30W
    • -4°F to 131°F (-20°C to 55°C) @ 22.5W
  • Temperature (Storage): -4°F to +158°F (-20°C to +70°C)
  • Relative Humidity (Operating): Maximum 90%, Non-Condensing
  • Thermal Rating: 20 BTU/hr (@240VAC)
  • Operating Altitude: -1000 to 10,000 ft. (-304.8 to 3048 m)
General
  • LEDs:
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
    • Green (Blinking): Overload state or short circuit
  • Enclosure: Molded black matte plastic
  • Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B
  • Approvals:
    • IEEE 802.3at (PoE)
    • RoHS / WEEE compliant
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI (Japan)
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1
Input
  • LEDs:
    • Yellow (On): power is on and active
    • Green (On): A remote terminal is connected
    • Green (Blinking): Overload state or short circuit
  • Enclosure: Molded black matte plastic
  • Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure, EIA 568A and 568B
  • Approvals:
    • IEEE 802.3at (PoE)
    • RoHS / WEEE compliant
    • CE
    • FCC Part 15, Class B
    • EN 55022 Class B (Emissions)
    • EN 55024 (Immunity)
    • VCCI (Japan)
    • C-Tick
    • UL/cUL per IEC 60950-1
    • GS Mark per IEC 60950-1
Output
  • Pass Through Data Rates: 10/100/1000 Mbps
  • Output Voltage: 55 VDC Nominal
  • Output Power: 30 Watts (Guaranteed)
  • Output Current: 0.6A (max)
  • Ripple and Noise: Below the IEEE802.3af requirements
    • f<500Hz: Vp-p 0.5
    • 500Hz to 150kKHz: Vp-p 0.2
    • 150KHz to 500KHz: Vp-p 0.15
    • 500KHz to 1MHz: Vp-p 0.1
  • Transient Response: Meets IEC61000-4-4 (1Kv)
  • DXLink Transport Layer Throughput: 10.2 Gbps pass thru (only applicable to DXLink signals)
Compatible AMX Products
  • DX-TX, DXLink Multi-Format Transmitter Module (FG1010-310)
  • DX-TX-DWP, DXLink Multi-Format Decor Style Wallplate Transmitters (US) (FG1010-325-BL/-WH)
  • DX-TX-WP, DXLink Multi-Format Wallplate Transmitters (FG1010-320-BL/WH)
  • DX-RX, DXLink HDMI Receiver Module (FG1010-500)
  • MVP-9000i, 9" Modero® ViewPoint® Touch Panel with Intercom (FG5967-01/02)
FG Numbers FG423-84
