NMX-DEC-N3232-C

  • Marka : AMX
  • Ürün Kodu :

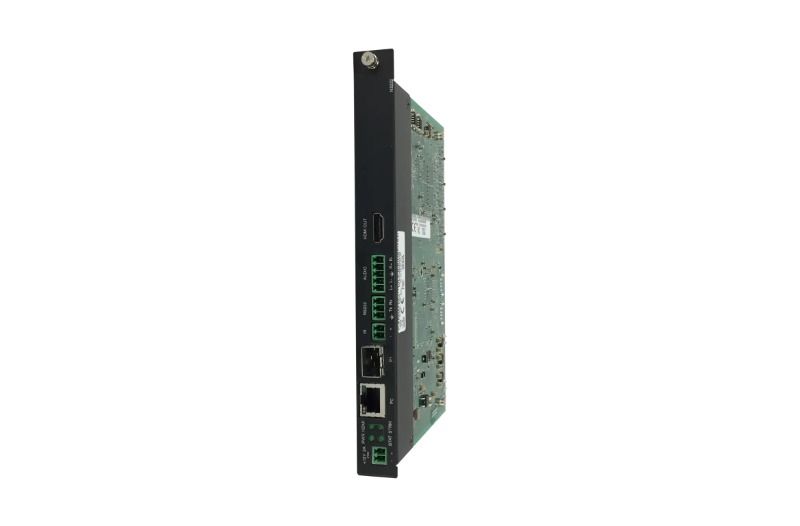

NMX-DEC-N3232-C Dekoder Kartı
H.264 IP Üzerinden Sıkıştırılmış Video Kod Çözücü, PoE, SFP, HDMI, Kayıt için USB, Kart

N3000 Serisi H.264 sıkıştırma motoru, benzer kodlayıcıların yarısı kadar bant genişliğinde düşük gecikmeli 1080p60 video sunar. Yüksek profilli H.264 kodlayıcılar, bir veya daha fazla N3000 Serisi kod çözücüye tek noktaya yayın veya çok noktaya yayın çıkışı sağlar. Birden çok seçilebilir akış protokolü (RTP, RTSP ve daha fazlası), video sırasında yazılım uç noktalarının masaüstü uygulamalarına veya Roku, Amino veya Google TV gibi üçüncü taraf donanım uç noktalarına aktarılmasına olanak tanır. 32 Kbps'den 10 Mb/sn'ye kadar ayarlanabilir bit hızları, SVSI'nin eşsiz Ağ Bağlantılı AV kalitesi sağlama taahhüdüne uygun olarak piyasadaki en düşük bant genişliklerinde en yüksek video doğruluğunu sağlar.

N3000 IP Üzerinden Video Serisi, SVSI'nin Ağa Bağlı AV çözümlerinin erişimini akış, masaüstüne video, dijital tabela, set üstü kutular veya mobil cihaz uygulamaları için WAN'a kadar genişletir. Mevcut Ağa Bağlı AV kontrol seçenekleriyle tamamen entegre olan N3000 Serisi, en zorlu uygulamalar için en düşük bant genişliğinde en yüksek kalitede HD video içeriğini sunar. Videoyu Bulut'a veya Bulut'tan taşımak N3000 ile artık çok daha kolay hale geldi.

H.264 kod çözücü IR, seri, dengeli ses, RJ45 ve 1 GB SFP (fiber veya bakır) ağ bağlantılarını içerir. Yalnızca dijital video çıkışı. H.264 kod çözücü kartı, NMX-ACC-N9206 kafesini gerektirir.

Ortak Uygulamalar

NMX-ENC-N3232, düşük bit hızlı WAN üzerinden kaliteli akış için mükemmel çözümdür. Yaygın uygulamalar arasında uzaktan eğitim, Çok Siteli Kurumsal ve IPTV Yayını yer alır.

Özellikler

  • Ethernet Üzerinden Güç (PoE) - Yerel güç kaynağı ihtiyacını ortadan kaldırır ve kurulumu hızlandırır. Ünitelere hala 12VDC'den yerel olarak güç sağlanabiliyor ve bu sayede rafa kolay monte edilebilir, yüksek yoğunluklu kurulumlar mümkün oluyor
  • Kızılötesi (IR) - Kızılötesi yayıcı bağlantı, düşük maliyetli, yalnızca IR görüntüleme cihazlarının kontrolüne olanak tanır
  • Yerleşik Kontrol - Tüm N Serisi kodlayıcılar ve kod çözücüler, diğer IP tarafından kontrol edilebilen cihazlara herhangi bir sayıda TCP/UDP komutunu tetikleyebilen olaylar aracılığıyla yerleşik, yerleşik kontrol özelliğine sahiptir.
  • Sınırsız Ölçeklenebilirlik
  • Tek Başına veya Kart - Tek başına bir cihaz olarak veya NMX-ACC-N9206 ile kullanım için kart olarak mevcuttur

Video
  • Video Input: Network video over copper via RJ45 port or fiber via 1G SFP port
  • Video Output: HDMI, DVI-D (through adapter)
  • Formats: HDMI, DVI-D (through adapter), HDCP content protection support
  • Input Resolutions:
    • Supports most common HD up to 1080p60.
      • *720x480 @ 59Hz, 640x480 @ 60Hz, *720x480 @ 60Hz, *720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, *1280x720 @ 50Hz, *1280x720 @ 59Hz, *1280x720 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, *1920x1080 @ 50Hz, *1920x1080 @ 59Hz, *1920x1080 @ 60Hz, *1920x1080i @ 50Hz, *1920x1080i @ 59Hz, *1920x1080i @ 60Hz



*supported in component mode

Audio
  • Input Signal Types: Network audio over Ethernet
  • Output Signal Types: Embedded audio on HDMI or DVI-D (through adapter)
  • HDMI Audio Formats: Stereo 2-channel
  • Analog Audio Formats: Stereo 2-channel
Latency
  • Latency: 175 ms at 60 fps



Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps)

Communications
  • Ethernet:
    • P0
      • 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
    • P1
      • 1 Gbps port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling)
  • HDMI: HDCP, EDID management
Ports
  • +12V 2A: One 12 Volt DC power input.
  • P0
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection, network AV video, and power to the Encoders and Decoders
  • P1
    • SFP port (SFP fiber transceiver or direct attach cable not included)
    • Provides the network connection and network AV video
  • IR
    • 2-pin terminal Phoenix connector
    • Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included)
  • RS232
    • 3-pin terminal Phoenix connector
    • Provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate
  • AUDIO
    • 5-pin terminal Phoenix connector
    • Provides user-selectable balanced/unbalanced output. Dedicated audio output
  • HDMI OUT: HDMI video output
  • USB connectors (front panel): One USB-A control inputs
Controls and Indicators - Front Panel
  • RESET Button
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • ID Button
    • Recessed pushbutton
    • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
  • POWER LED
    • On solid (green) when operating power is supplied (via PoE or local power supply)
    • This activity is also shown by thePWRLED on the rear panel
  • STATUS LED
    • On flashing (green) when there is software activity
    • This activity is also shown by theSTATLED on the rear panel
Controls and Indicators - Rear Panel
  • PWR LED: Same asPOWERLED described above
  • HDMI LED: On (green) when there is a connection to a valid video source
  • STAT LED: Same asSTATUSLED described above
  • STRM LED: On (green) when the unit is streaming video
Environmental
  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~44 BTU/Hr
General
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories: NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN3232-CD
