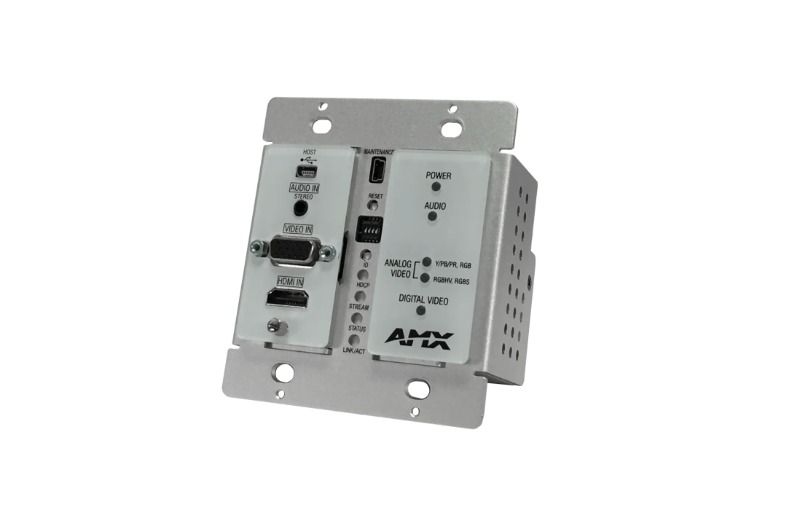

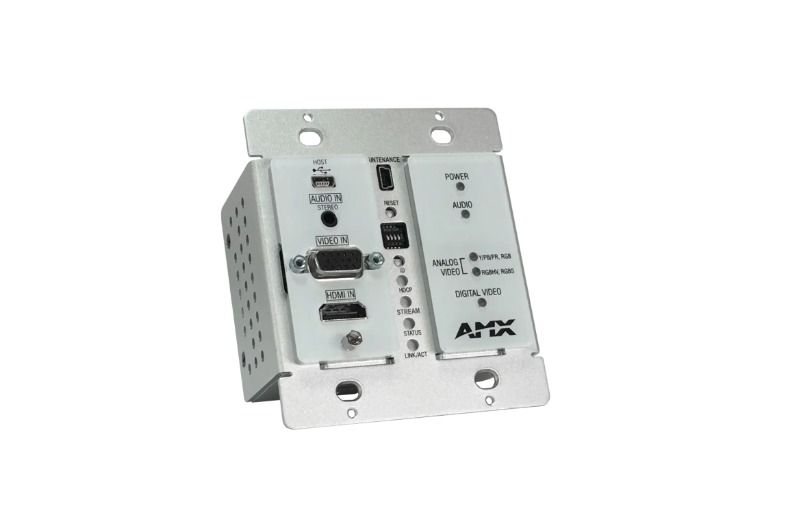

NMX-ENC-N1115-WP

  • Marka : AMX
  • Ürün Kodu :

NMX-ENC-N1115-WP Duvar Plakası Kodlayıcı
KVM'li, IP Üzerinden Minimal Tescilli Sıkıştırmalı Video N1115 MPC Dekor Tarzı Duvar Plakası Kodlayıcı

N1000 Serisi Kodlayıcılar ve Kod Çözücüler, videoyu düşük gecikmelerde mükemmel video kalitesi sağlayan minimum düzeyde sıkıştırılmış IP formatında paketleyen, uygun fiyatlı bir yerel IP üzerinden AV anahtarlama çözümüdür. Bu sıkıştırma, tamamı kullanıma hazır katman-3 ağ anahtarlarını kullanan, noktadan noktaya video dağıtımı, küçük 2x1 anahtarlama uygulamaları ve daha büyük anahtarlama uygulamaları (örneğin, 32x32) için mükemmeldir.

NMX-ENC-N1115-WP, NMX-ENC-N1133'ün mükemmel kodlama yeteneklerini 2 gruplu duvar plakası formatında sağlar. Bu kodlayıcı, standart 2'li ABD destek kutusu kullanılarak duvara, kürsüye veya zemin kutusuna kolayca monte edilebilir ve yalnızca tek bir kategori kablosu kullanılarak güç ve Ethernet'e bağlanabilir.

Ortak Uygulamalar

NMX-ENC-N1115, 32x32'den küçük her türlü uygulama ve video matrisi için mükemmel çözümdür. Yaygın uygulamalar arasında konferans odaları, küçük alanlar ve kürsüler (içeride veya bitişik) yer alır.

Özellikler

  • Alt Çerçeve Gecikmesi - 60 fps'de 10 ms'lik birleşik kodlama ve kod çözme gecikmesi.
  • Minimal Tescilli Sıkıştırma (MPC) - Tüm çözünürlüklere uygulanan görsel olarak kayıpsız MPC algoritması
  • Duvar Plakası Form Faktörü - Duvara, zemine veya kürsüye kolay kurulum için 2'li ABD destek kutusuna rahatlıkla sığar.
  • Ethernet Üzerinden Güç (PoE) - PoE, güç kaynağı ihtiyacını ortadan kaldırır
  • Eşsiz Esneklik - Noktadan noktaya bağlantılar, basit 2x1 anahtarlar veya 32x32'ye kadar uygun maliyetli matrisler oluşturun.
  • Ayrı Girişler - Kodlayıcıda ayrı HDMI ve VGA giriş konnektörleri

Video
  • Digital Video Input: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*
  • Analog Video Input: HD-15 VGA, Component*
  • Video Output: Video Output
  • Formats: HDMI, DVI-D*, Dual-Mode DisplayPort (DP++)*, HDCP content protection support, RGBHV, YPbPr
  • Progressive Input Resolutions
    • Supports most common HD up to 1920x1200.
  • Interlaced Input Resolutions
    • Supports 1080i60.
  • Analog Input Resolutions
    NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz.
    • Supports most common HD up to 1920x1200.
  • Output Resolutions: Matched to inputs.
  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
    NOTE: The N1115-WP does not accept Composite or S-Video (YC).
  • Color Space: 4:2:2



*These signal types are supported through a passive adapter.

Audio
  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo
  • Output Signal Types: Ethernet
  • Analog Audio Format: 8ch PCM, Stereo 2-channel
  • Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
Latency
  • Latency: 10 ms at 60 fps
  • Bandwidth: 840 Mb/s (varies with resolution)



Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps).

Communications
  • Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • HDMI: HDCP, EDID management
Ports
  • P0:
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides the network connection, network AV video, and power to the Encoders and Decoders
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input
  • USB IN - Host: USB-B host input
  • USB IN - Maintenance: USB-Mini maintenance input

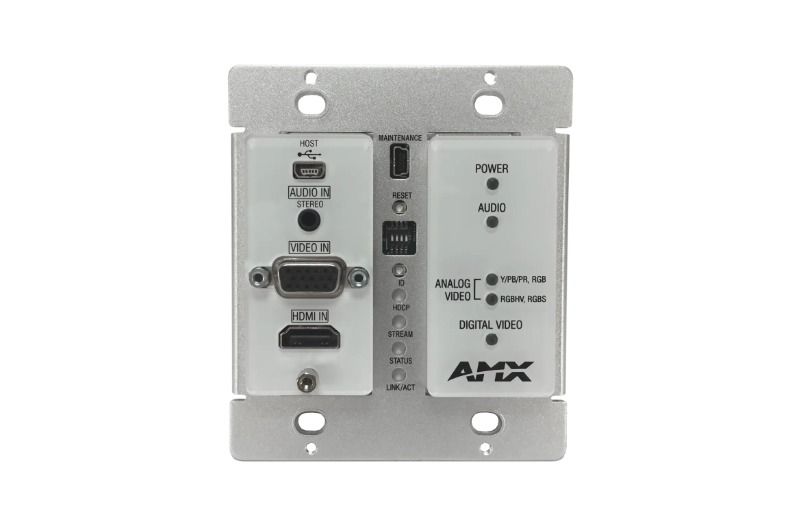

Controls and Indicators - Front Panel
  • RESET Button:
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • POWER LED: On solid (green) when operating power is supplied (via PoE or local power supply)
  • AUDIO LED: On (green) when audio is transmitting.
  • ANALOG VIDEO LEDs: On (green) when analog source is available and transmitting.
  • DIGITAL VIDEO LED: On (green) when video source is available and transmitting
  • HDCP LED: On (green) when the source is using HDCP
  • STREAM LED: On (green) when the unit is streaming video
  • STATUS LED: Flashing (green) when the unit is active.
  • LINK/ACT LED: Flashing (yellow) when network traffic is being sent or received.
Power Supply
  • Power over Ethernet
    • Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1)
    • Point-to-point applications between the encoder and a decoder requires a PoE injector to power the wallplate encoder.



Note: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only.

Environmental
  • Temperature (Operating): 32° to 104°F (0° to 40°C)
  • Temperature (Storage): -22° to 158°F (-30° to 70°C)
  • Humidity (Operating): 10% to 90% RH (non-condensing)
  • Humidity (Storage): 0% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~26 BTU/hr
General
  • Dimensions (HWD): 4.06" x 3.5" x 2.25" (10.31 cm x 8.84 cm x 5.72 cm)
  • Weight: .75 lb (0.34 kg)
  • Airflow: Natural convection via vent openings on front, back, and top
  • Installation
    • Mounts onto standard 2 gang US back boxes
    • Mounts into standard décor style wallplates (not included)
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories
    • Compatible with NMX-ENC-N1222, NMX-ENC-N1233, NMX-ENC-N1512, and NMX-NVR-N6123
    • PS-POE-AT-TC High-Power PoE Injector, 802.3AT Compliant FG423-84)
FG Numbers

FGN1115-WP-WH (White)
FGN1115-WP-BL (Black)
