NMX-ENC-N2122A

  • Marka : AMX
  • Ürün Kodu : NMX-ENC-N2122A

NMX-ENC-N2122A Kodlayıcı
IP üzerinden JPEG 2000 Dijital Sinema Sınıfında Video Kodlayıcı, PoE, HDMI, AES67 Desteği

NMX-ENC-N2122A, neredeyse her formattaki kaynakları mevcut bir IP ağına kodlayıp dağıtarak bu akışın tesisteki herhangi bir uç nokta tarafından kullanılabilir olmasını sağlar. Akışların kodunu herhangi bir monitörde görüntülemek üzere HDMI veya DVI formatına geri çözmek için bir NMX-DEC-N2222A veya NMX-DEC-N2212A Kod Çözücü ile eşleştirin. Herhangi bir kaynak akışını herhangi bir ekrana yönlendirme yeteneği sayesinde, büyük, düşük maliyetli anahtarlama ve dağıtım sistemlerinin, özel kablolama veya özel anahtarlama donanımı olmadan kurulumu kolaydır.

IR, seri, dengeli ses, iki ağ bağlantı noktası (bir POE), AES67 Desteği ve yerel video geçiş bağlantı noktasını içerir. Analog veya dijital video girişini otomatik olarak algılar.

AMX SVSI N2000 Serisi, video kalitesinin öncelikli olduğu uygulamalar için LAN üzerinde HD için JPEG2000 sıkıştırmayı, sinema kalitesinde video dağıtımını kullanır. Kullanıcılar, her kurulumun maksimum performans için özelleştirilmesini sağlayan web tabanlı kullanıcı arayüzünde sağlanan basit bir kaydırma kontrolüyle video kalitesini ve bant genişliği kullanımını kontrol edebilir.

Ortak Uygulamalar

NMX-ENC-N2122A, matris değiştirme ve HD, sinema kalitesinde videonun LAN üzerinden dağıtımı için mükemmel çözümdür. Yaygın uygulamalar arasında işletme, ibadethane, eğlence ve stadyumlar yer alır.

Özellikler

  • Giriş ve Çıkış Ölçeklendirme - Giriş veya çıkıştaki video ölçeklendirme, video kalitesini korurken herhangi bir kaynaktan, herhangi bir çözünürlükte, herhangi bir ekrana veya projektöre kesintisiz geçişe olanak tanır.
  • Ethernet Üzerinden Güç (POE) - Yerel güç kaynağı ihtiyacını ortadan kaldırır ve kurulumu hızlandırır. Ünitelere hala 12VDC'den yerel olarak güç sağlanabiliyor ve bu sayede rafa kolay monte edilebilir, yüksek yoğunluklu kurulumlar mümkün oluyor.
  • Kızılötesi (IR) - Kızılötesi verici bağlantısı, düşük maliyetli, yalnızca IR görüntüleme cihazlarının kontrolüne olanak tanır.
  • Yerleşik Kontrol - Tüm N Serisi kodlayıcılar ve kod çözücüler, diğer IP tarafından kontrol edilebilen cihazlara herhangi bir sayıda TCP/UDP komutunu tetikleyebilen olaylar aracılığıyla yerleşik, yerleşik kontrol özelliğine sahiptir.
  • Sınırsız Ölçeklenebilirlik
  • Geçişli HDMI - HDMI arayüzü, masaüstü bilgisayar uygulamaları gibi yerel ekranla kolay kurulum sağlar.
  • Tek Başına veya Kart - Tek başına bir cihaz olarak veya NMX-ACC-N9206 ile kullanım için kart olarak mevcuttur.

Video
  • Digital Video Input: HDMI, DVI-I (through adapter)
  • Analog Video Input
    • HD-15 VGA, Component
    • Component is supported through a passive adapter
  • Video Output: Network video over Ethernet via RJ45 port
  • Formats
    • HDMI, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr
    • DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
  • Progressive Input Resolutions
    • Supports most common HD resolutions up to 1920x1200.
      • **720x480@59Hz, 640x480@60Hz, **720x480@60Hz, **720x576@50Hz, 800x600@56Hz, 800x600@60Hz, **1280x720@50Hz, **1280x720@59Hz, **1280x720@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1152x864@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1280x960@60Hz, 1280x1024@60Hz, ***1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@23Hz, 1920x1080@24Hz, 1920x1080@25Hz, 1920x1080@29Hz, 1920x1080@30Hz, **1920x1080@50Hz, **1920x1080@59Hz, **1920x1080@60Hz, **1920x1080i@50Hz, **1920x1080i@59Hz, **1920x1080i@60Hz, ***1920x1200 @ 60Hz
  • Interlaced Input Resolutions
    • Supports 1080i60.
  • Analog Input Resolutions
    NOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz.
    • Supports most common HD resolutions up to 1920x1200.
      • **720x480@59Hz, 640x480@60Hz, **720x480@60Hz, **720x576@50Hz, 800x600@56Hz, 800x600@60Hz, **1280x720@50Hz, **1280x720@59Hz, **1280x720@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1152x864@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1280x960@60Hz, 1280x1024@60Hz, ***1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@23Hz, 1920x1080@24Hz, 1920x1080@25Hz, 1920x1080@29Hz, 1920x1080@30Hz, **1920x1080@50Hz, **1920x1080@59Hz, **1920x1080@60Hz, **1920x1080i@50Hz, **1920x1080i@59Hz, **1920x1080i@60Hz, ***1920x1200 @ 60Hz
  • Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channels
    NOTE: The N2122 Encoder does not accept Composite or S-Video (YC).



**supported in component mode

***reduced blanking only

Audio
  • Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced)
  • Output Signal Types: Ethernet at 48-kHz (standard SVSI audio stream or AES67, user selectable)
  • HDMI Audio Formats: 8ch PCM
  • Analog Audio Formats: Stereo 2-channel
  • Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz
Latency
  • Video 50 ms for 720p60
  • Video 140ms for 1080p60
  • Audio Latency: standard SVSI audio stream = 17 ms (synced to video); AES67 = <1 ms adjustable to 17 ms



Note: This is the combined encode plus decode latency. Total Latency from source to screen will also include any network latency.

Note: Scaling adds one frame of latency (17ms at 60fps)

Communications
  • Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP
  • HDMI: HDCP, EDID management

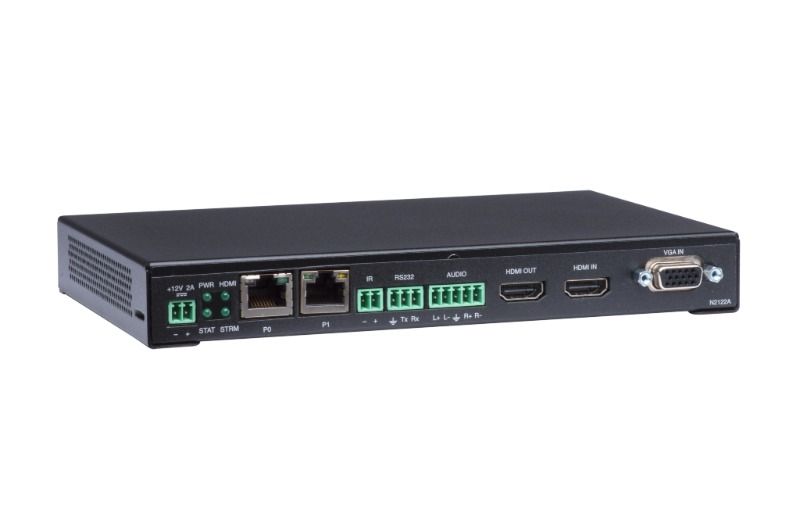

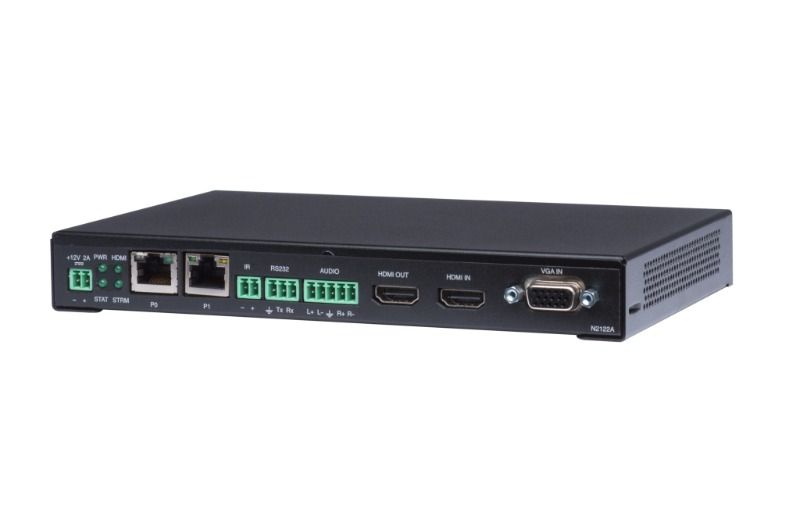

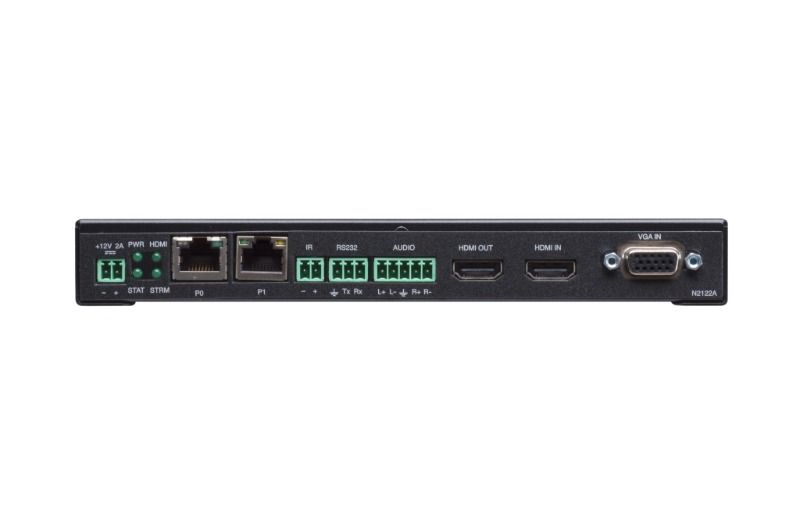

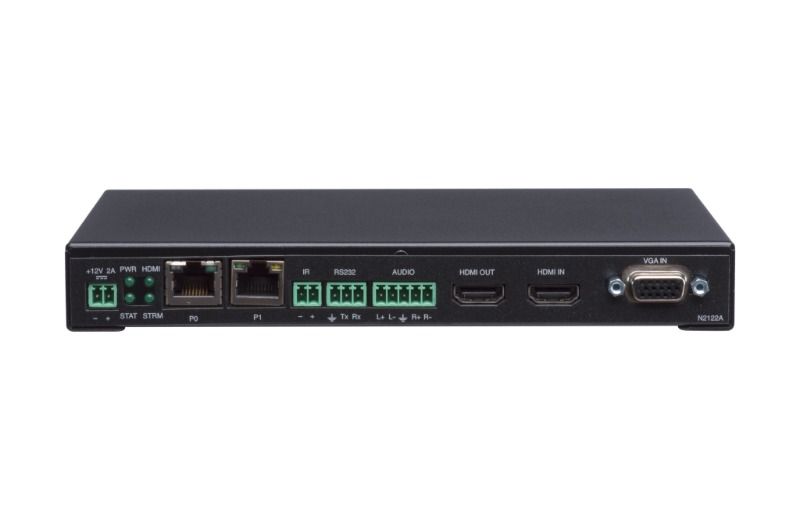

Ports
  • +12V 2A: One 12 Volt DC power input.
  • P0
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection, network AV video, and power to the Encoders and Decoders
  • P1
    • 8-wire RJ45 female
    • 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port
    • Provides network connection
  • IR: 2-pin terminal Phoenix connector. Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included)
  • RS232: 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate
  • AUDIO: 5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced input. Dedicated audio input
  • HDMI OUT: HDMI video output
  • HDMI IN: HDMI video input
  • VGA IN: DB15 analog input

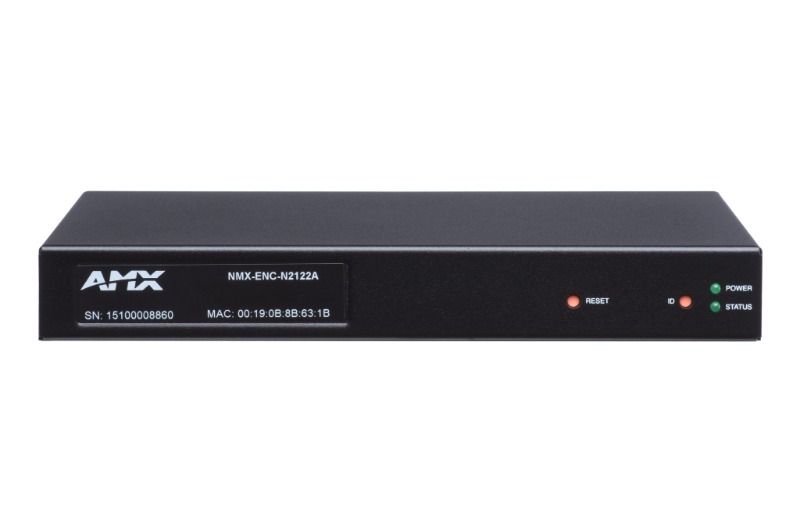

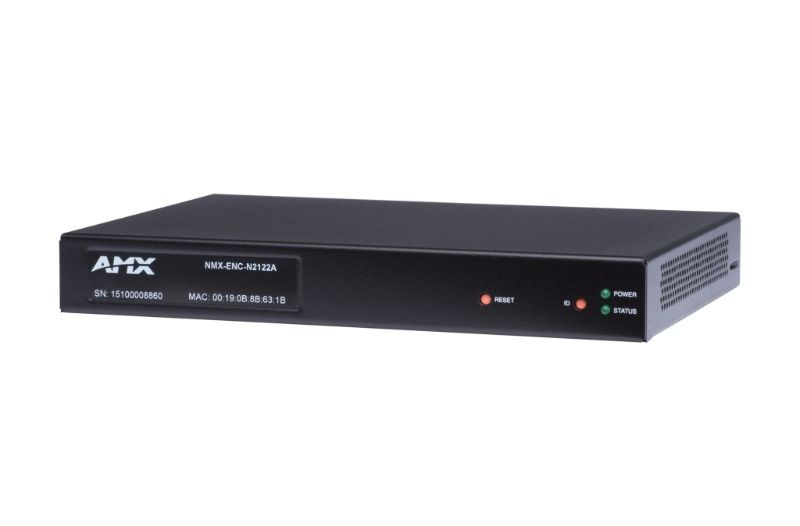

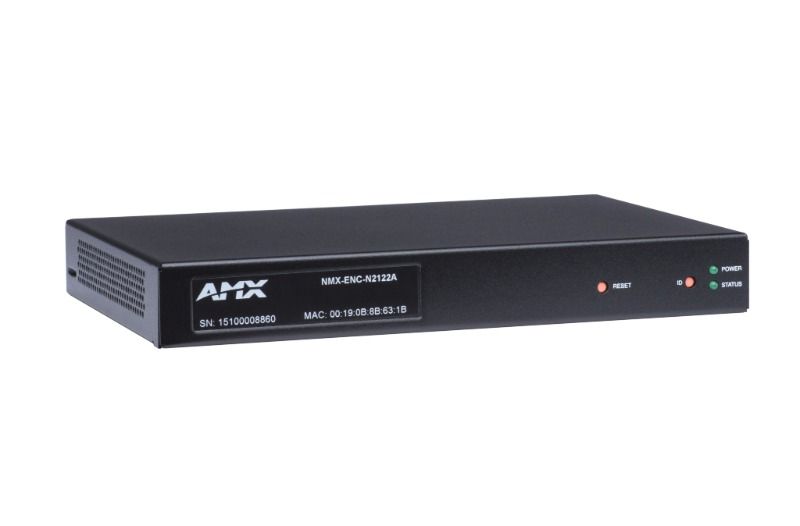

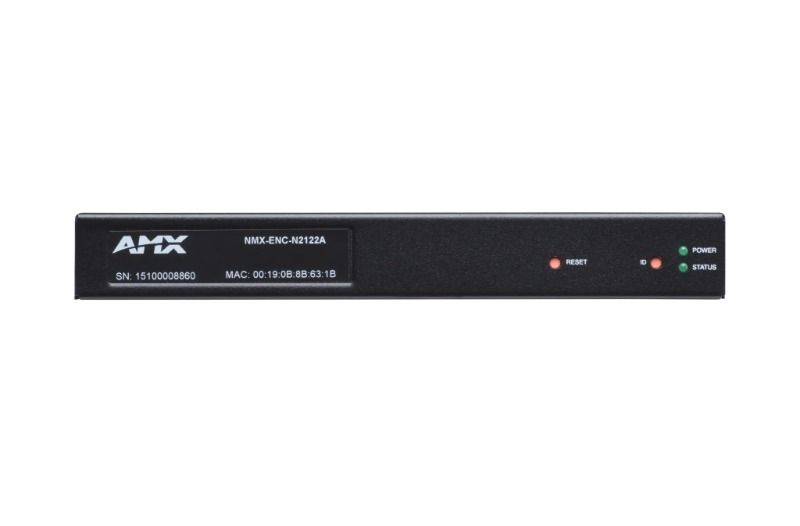

Controls and Indicators - Front Panel
  • RESET Button
    • Recessed pushbutton
    • Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings
  • ID Button
    • Recessed pushbutton
    • Press to send a notification out on the network to identify the unit (the notification causes a pop-up dialog in N-Able and N-Command)
  • POWER LED
    • On solid (green) when operating power is supplied (via PoE or local power supply)
    • This activity is also shown by thePWRLED on the rear panel
  • STATUS LED
    • On flashing (green) when there is software activity
    • This activity is also shown by theSTATLED on the rear panel
Controls and Indicators - Rear Panel
  • PWR LED: Same asPOWERLED described above
  • HDMI LED: On (green) when there is a connection to a valid video source
  • STAT LED: Same asSTATUSLED described above
  • STRM LED: On (green) when the unit is streaming video
Power Supply
  • Power Supply, External, Not Included: 2.0 Amp @ 12 Volts DC; 100-240 Volts AC power supply;Not included in shipment. NMX-ACC-N9312 (FGN9312)
  • Power over Ethernet (PoE): Can be powered via a PoE switch or other equipment with a PoE source. Conforms to IEEE 802.3af Class 3 (802.3at Type 1).



Note: In order for the unit to receive Power over Ethernet (PoE), it must be connected to a switch or other equipment that has a PoE PSE (Power Sourcing Equipment) port. Warning: Do not run wiring that is connected to a PoE PSE port outside of the building where the PSE resides. It is for intra-building use only. PoE does not pass through the daisy chain (P1) port.

Environmental
  • Temperature: 32° to 104°F (0° to 40°C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Heat Dissipation: Up to ~44 BTU/Hr
General
  • Dimensions (HWD): 1.05" x 7.888" x 5" (2.67 cm x 20.04 cm x 12.7 cm)
  • Weight: 1.6 lbs (0.66 kg)
  • Mounting Options
    • Stand alone, surface mount, wall mount, or rack mount
    • Surface and wall mounting requires (not included)
      • NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
    • Rack mounting requires one of the following (not included)
      • NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side for SVSI N-Series Encoders and Decoders
      • NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
  • Regulatory Compliance: FCC, CE, and NTRL
  • Recommended Accessories
    • NMX-ACC-N9382 (FGN9382), 1RU Power Supply 16-Channel 12V for up to 16 SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9101 (FGN9101), Mounting Wings for SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9102 (FGN9102), 1RU Rack Shelf for Two Side-by-Side SVSI N-Series Encoders and Decoders
    • NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units
FG Numbers FGN2122A-SA
